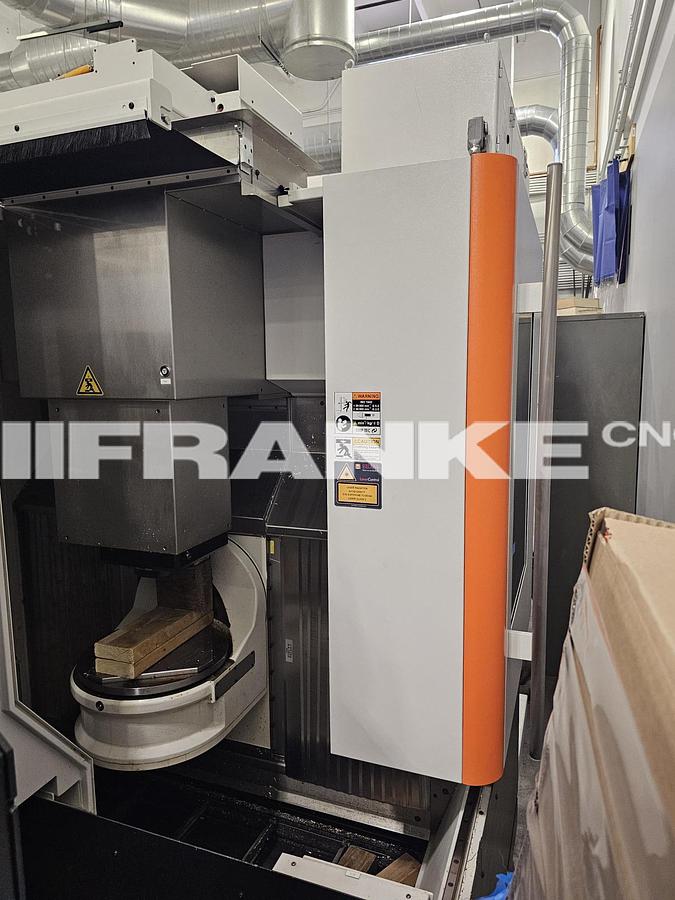

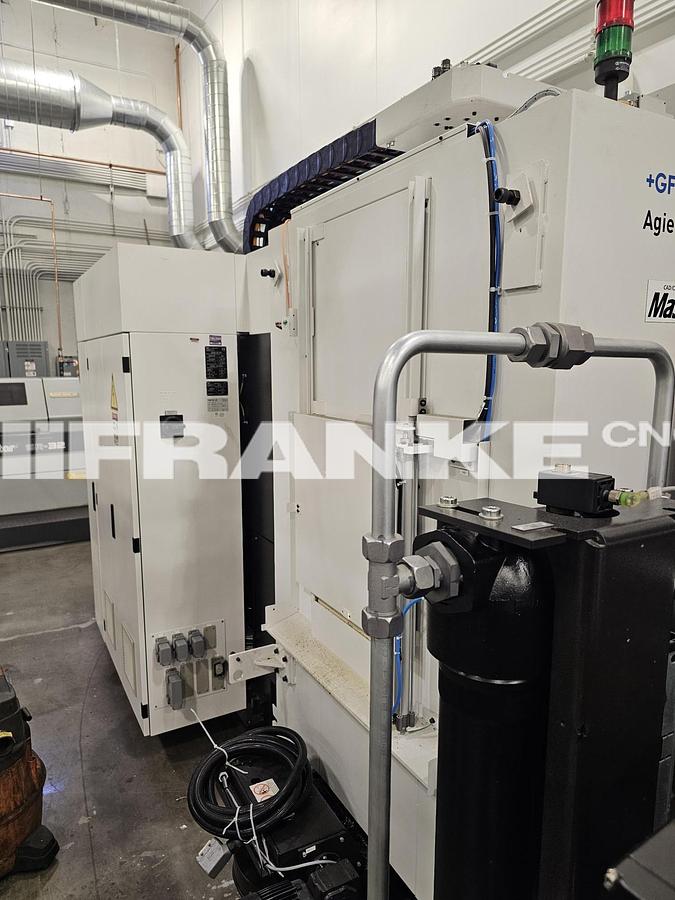

2014 MIKRON MILL HPM450U 5-Axis with 7 pallets automation, 60 tools ATC
2014 MIKRON MILL HPM450U 5-Axis with 7 pallets automation, 60 tools ATC
Description
Machine was manufactured at +GF+ AgieCharmilles AG in Nidau, Switzerland 10/2014
Equipped With:

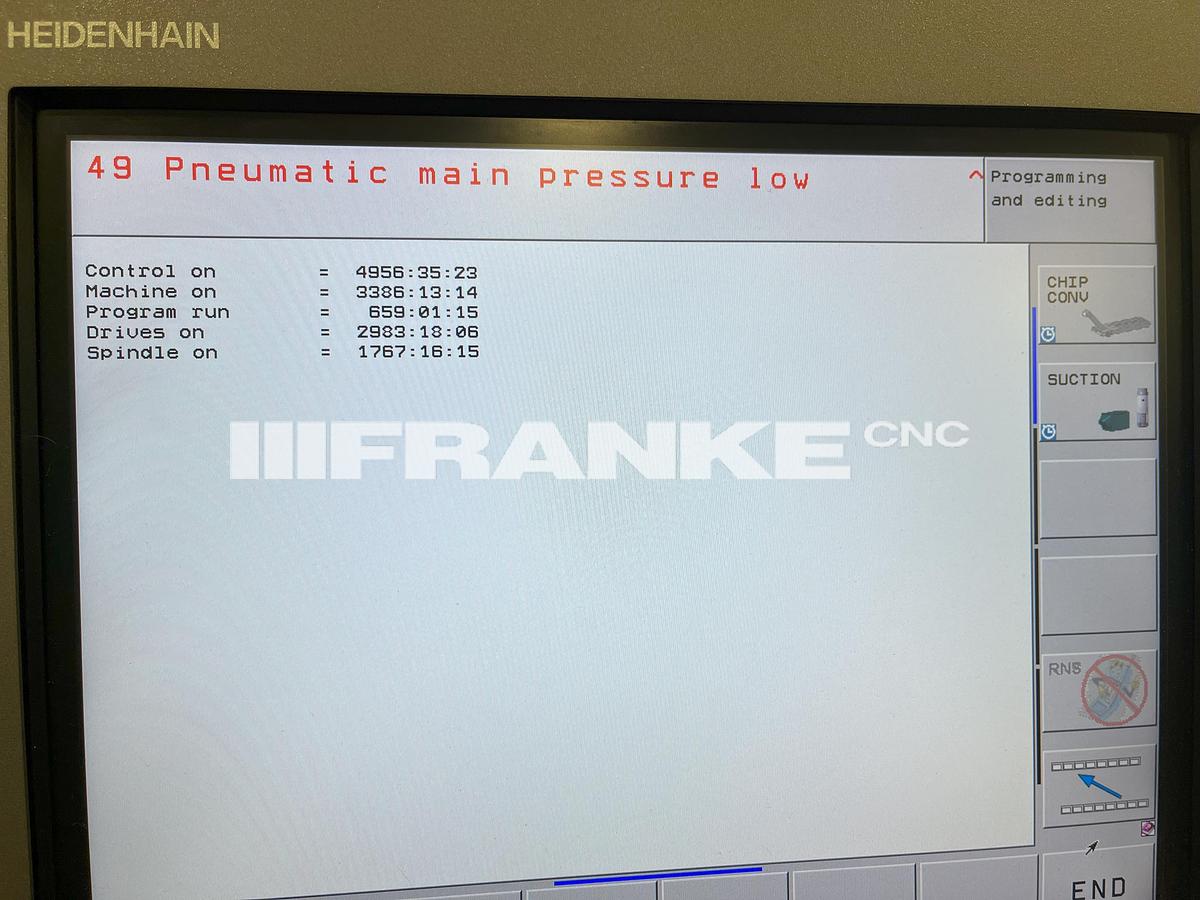

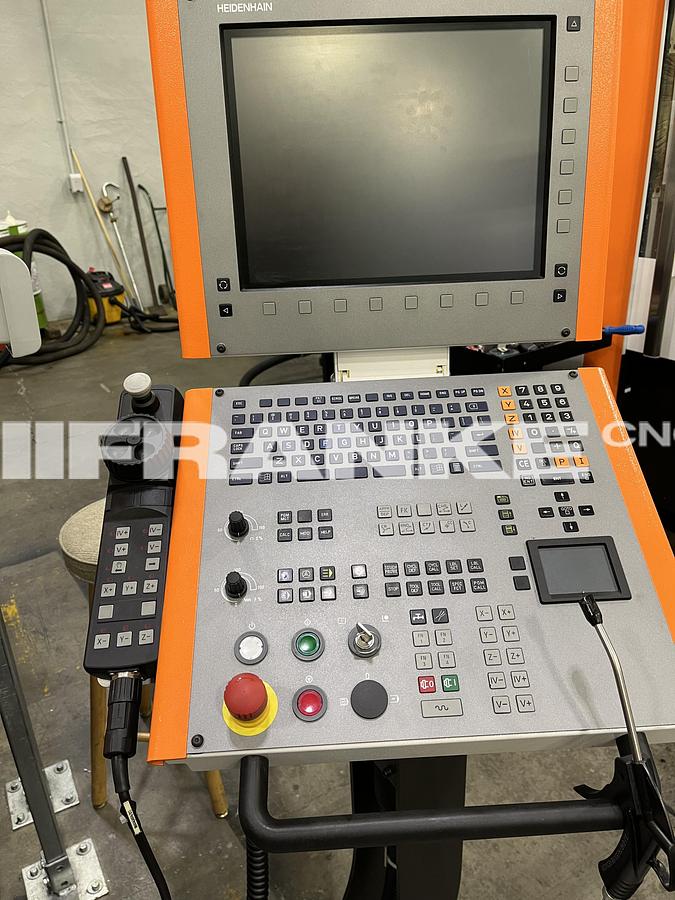

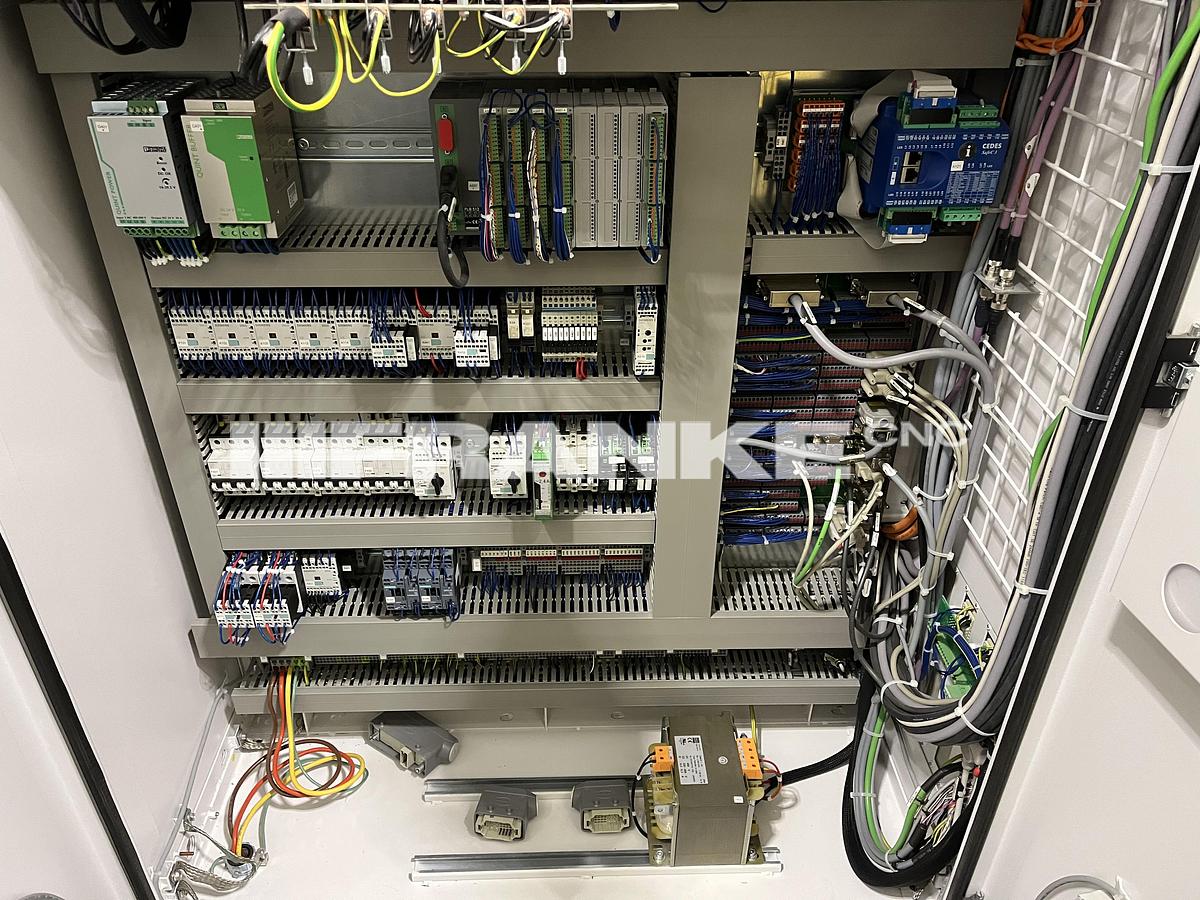

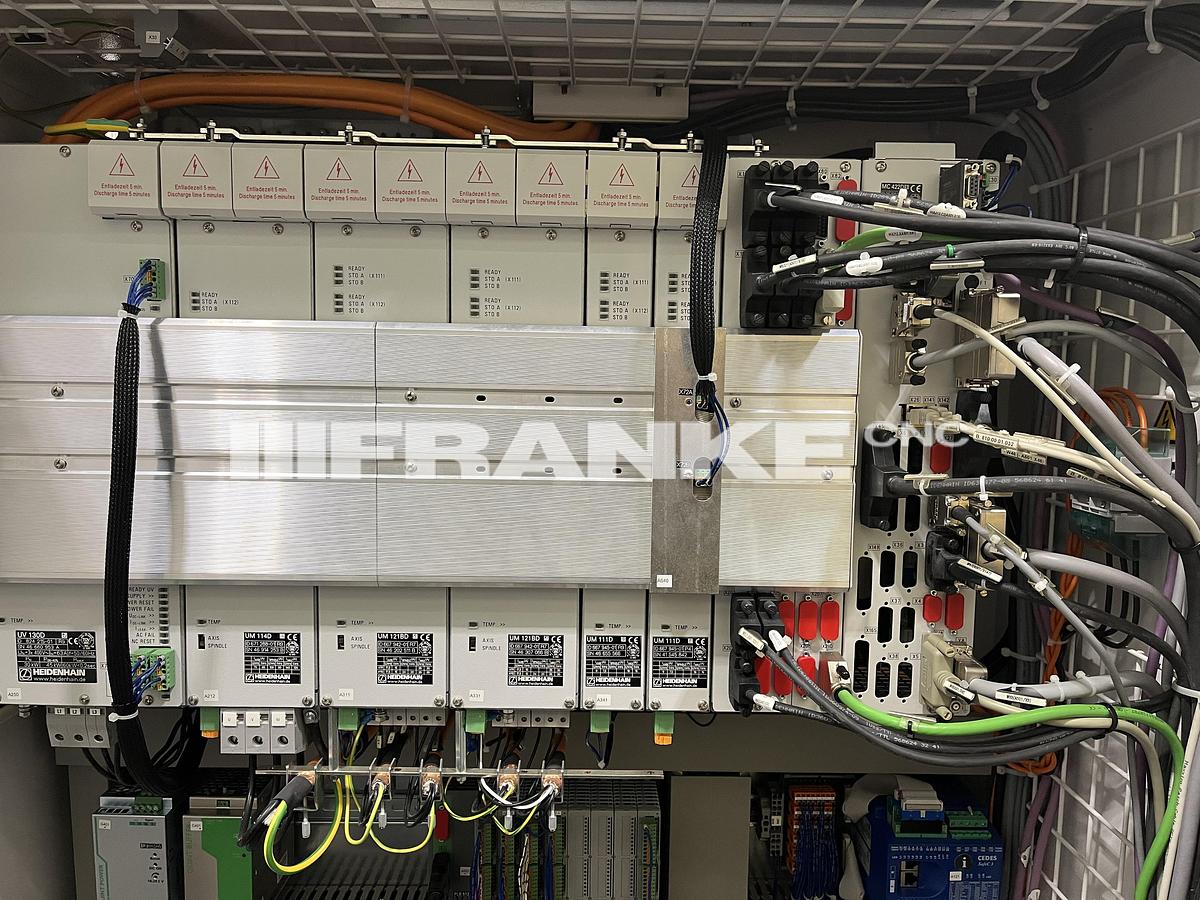

HEIDENHAIN iTNC 530 control with Ethernet and electronic handwheel for part setup
HEIDENHAIN direct measuring system glass scales X/Y/Z 0.00004" (1 um) resolution
HEIDENHAIN direct measuring system rotary encoders B/C 0.00004" (1 um) resolution

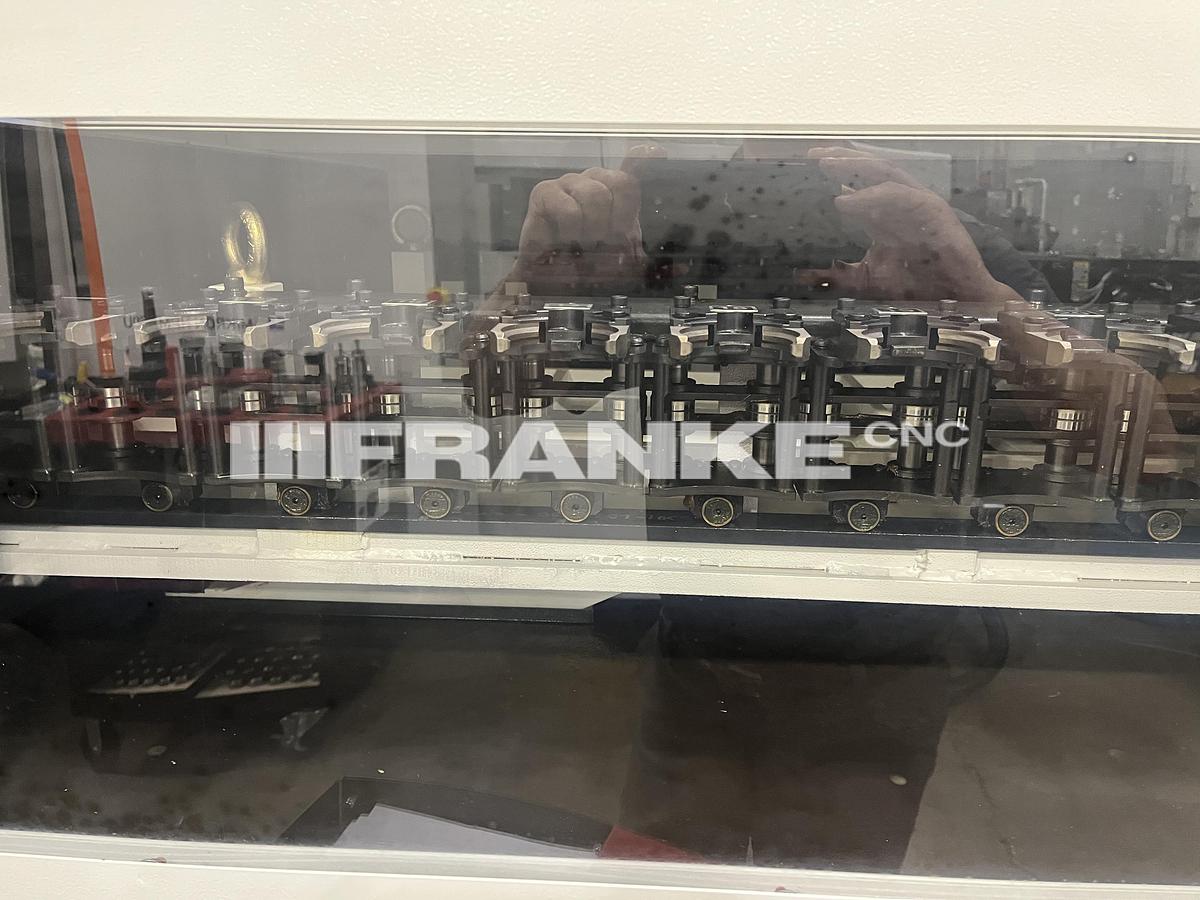

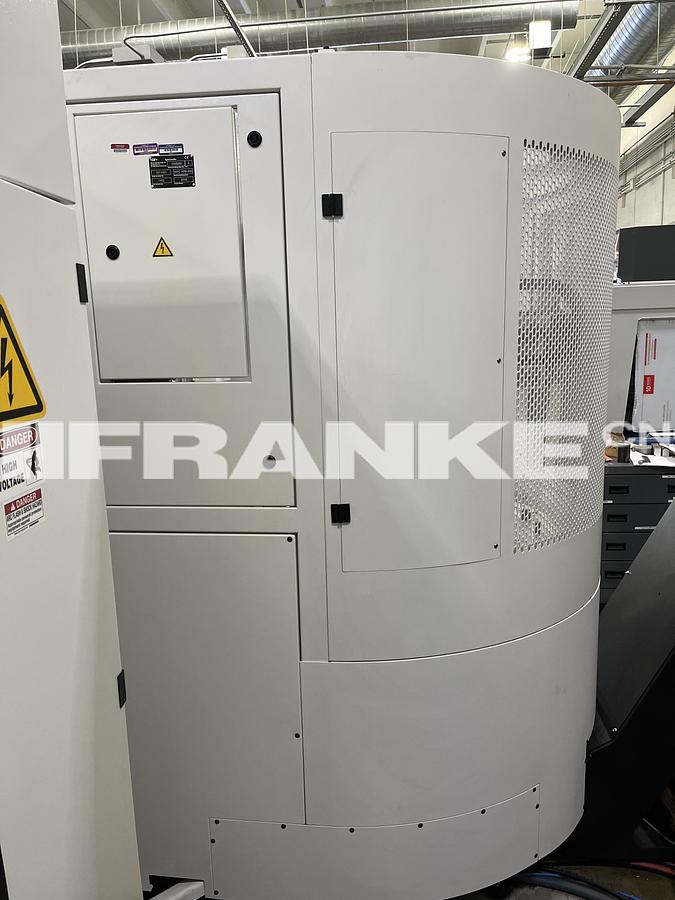

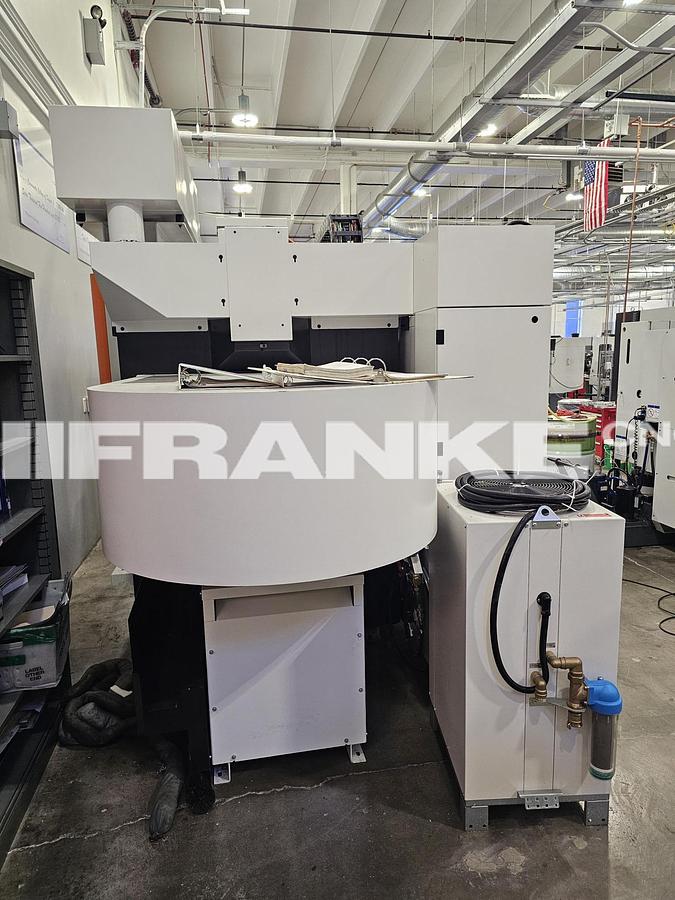

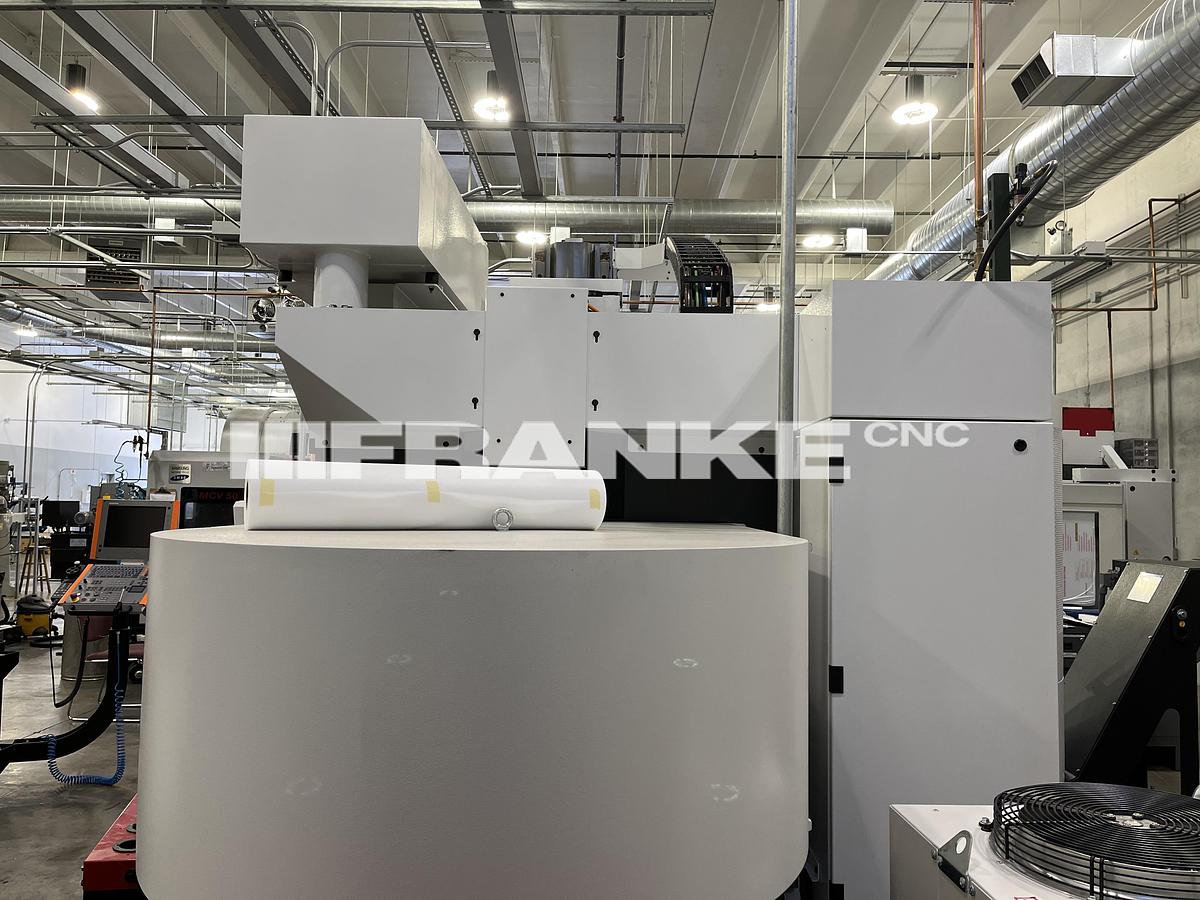

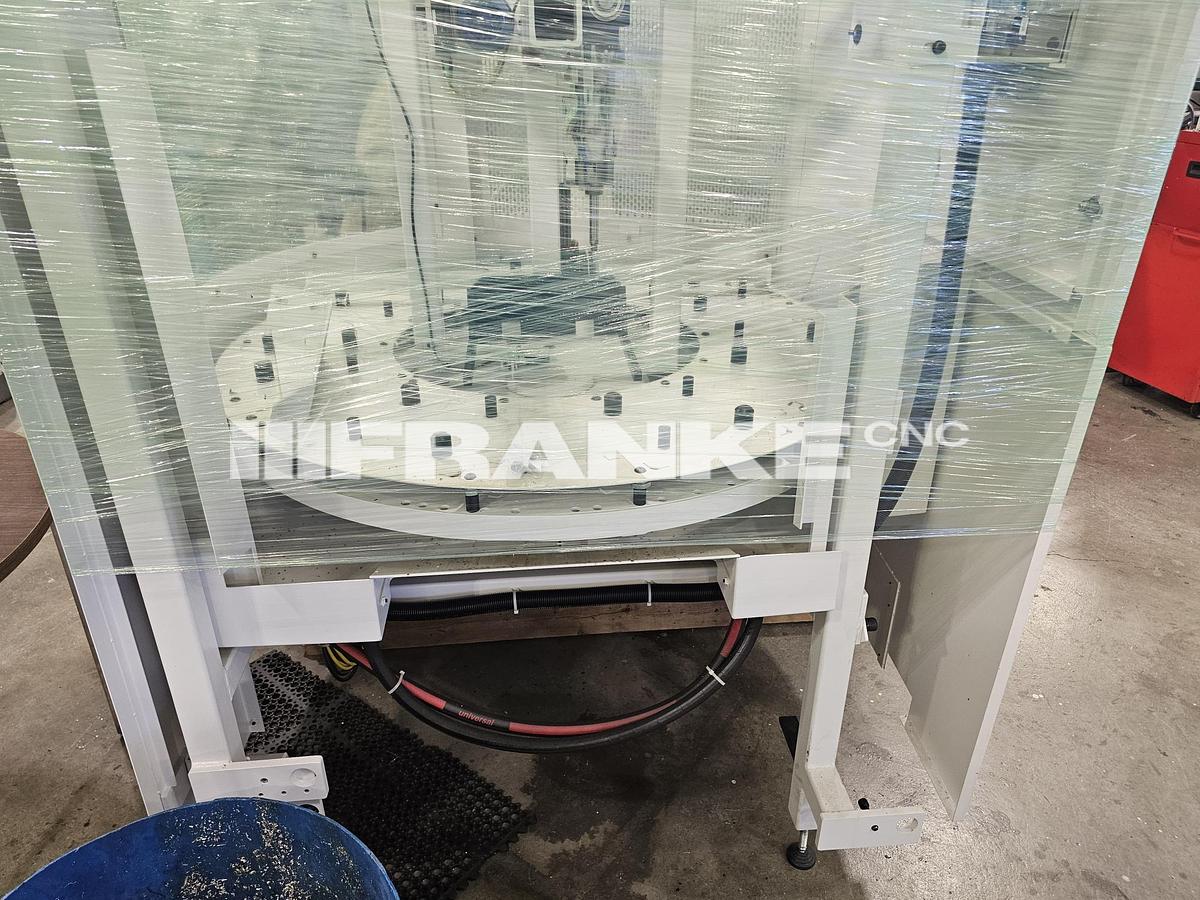

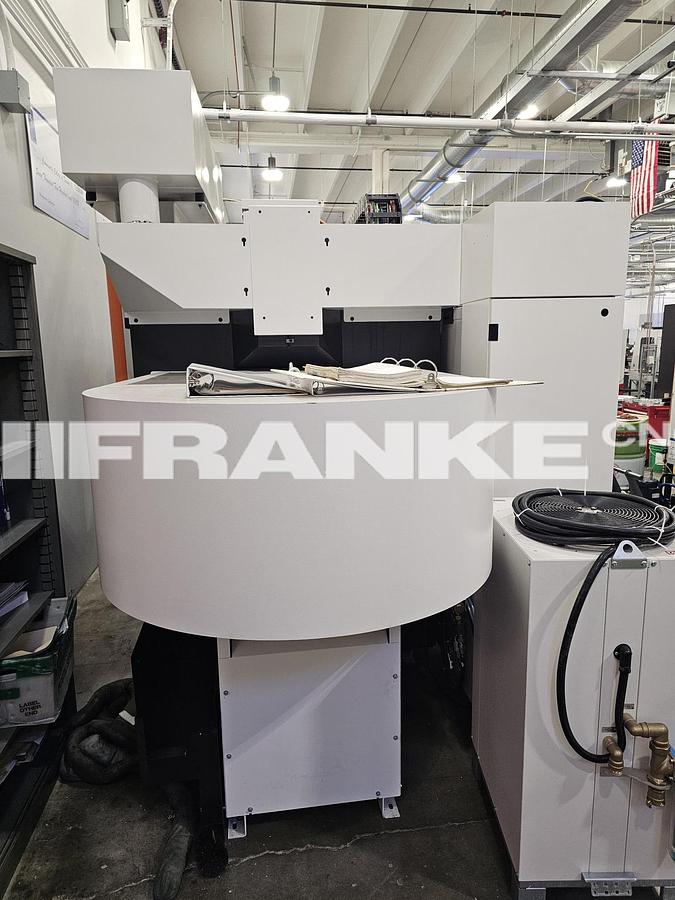

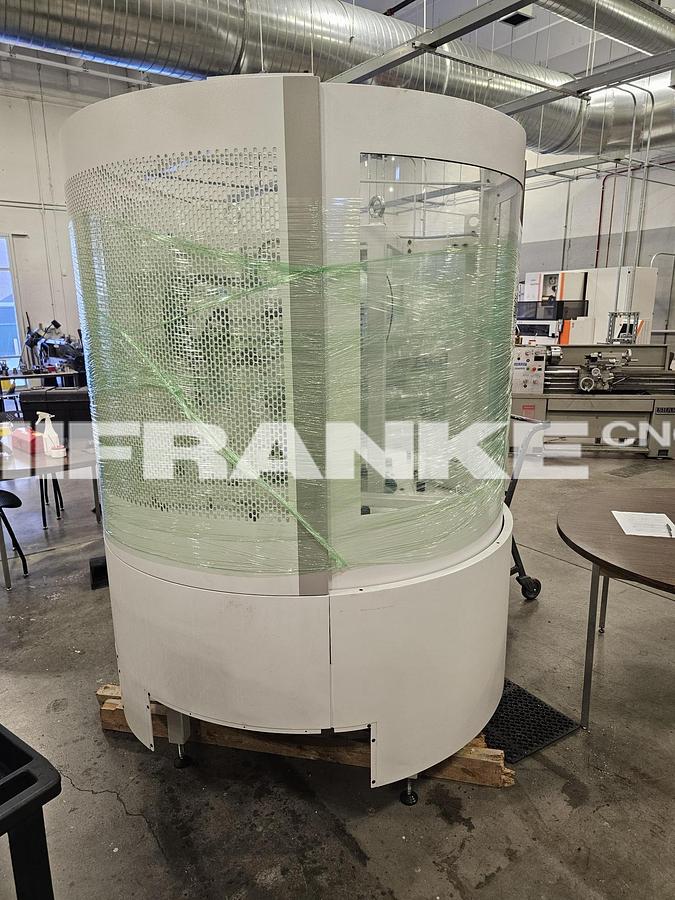

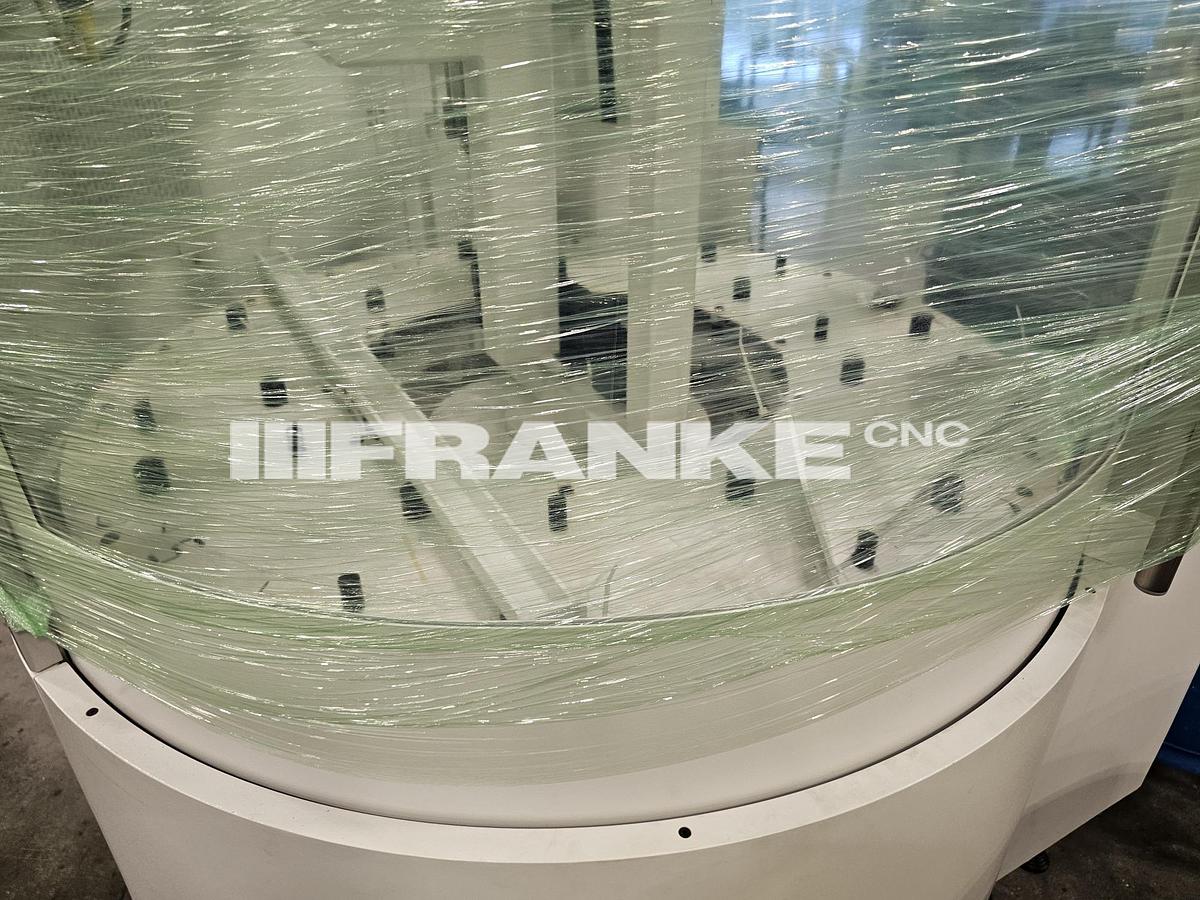

System 3R Dynafix 7 station automatic pallet changer

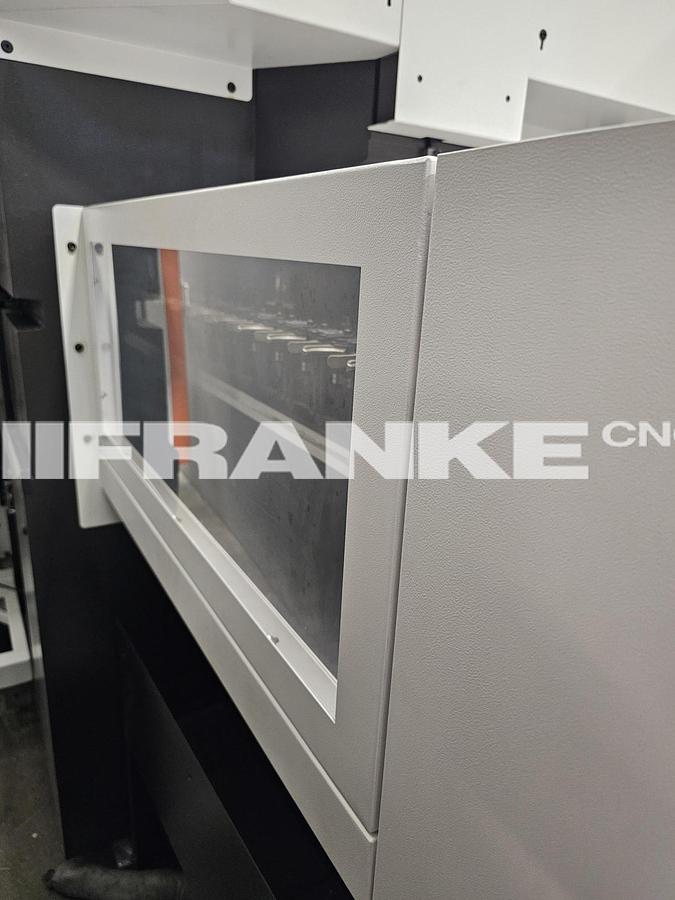

60 position automatic tool changer

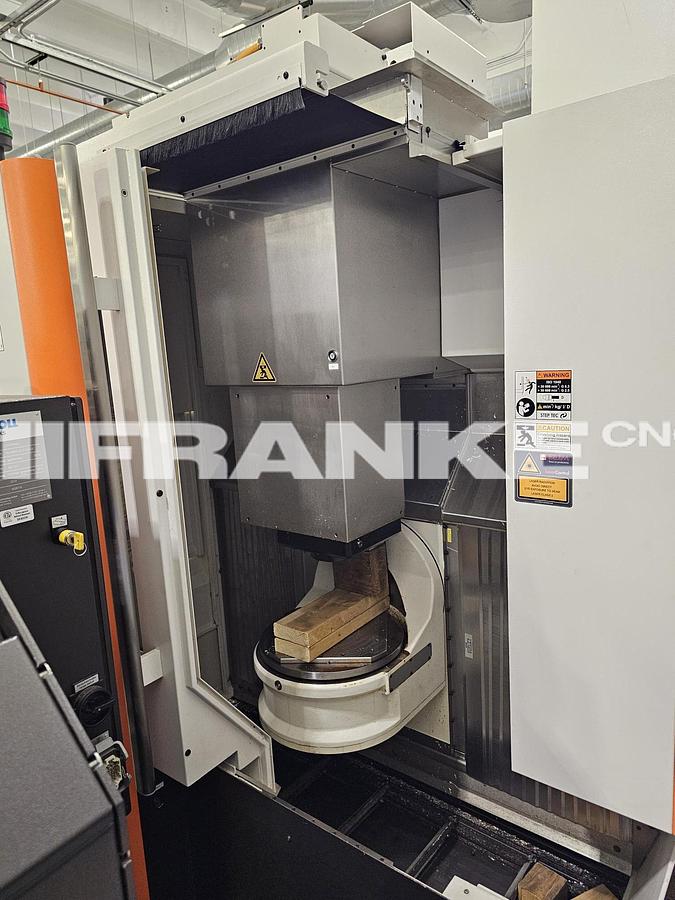

Hydraulic clamping in turning and swiveling axis
Liquid cooled feed motors
BLUM Laser tool measurement system with blow off unit
Complete machine enclosure

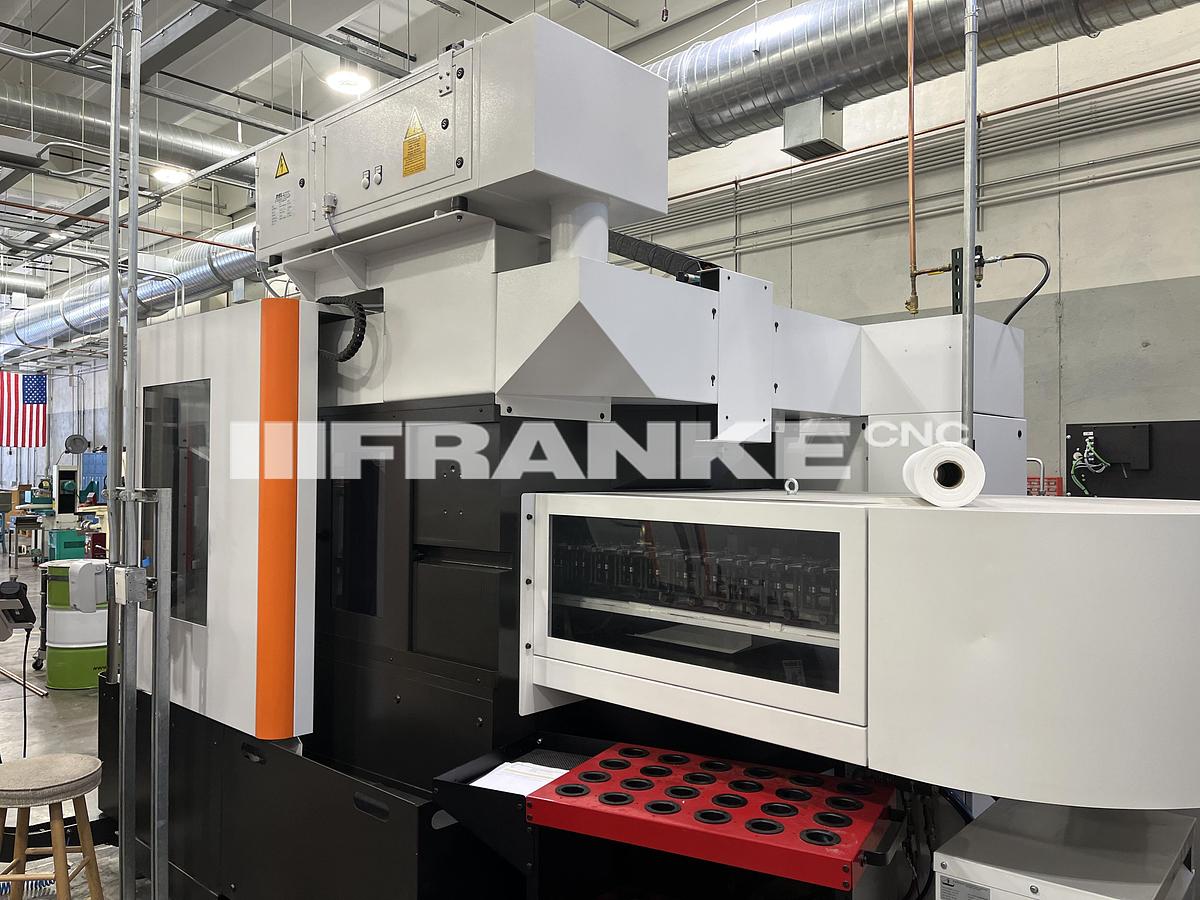

Oil mist extraction system

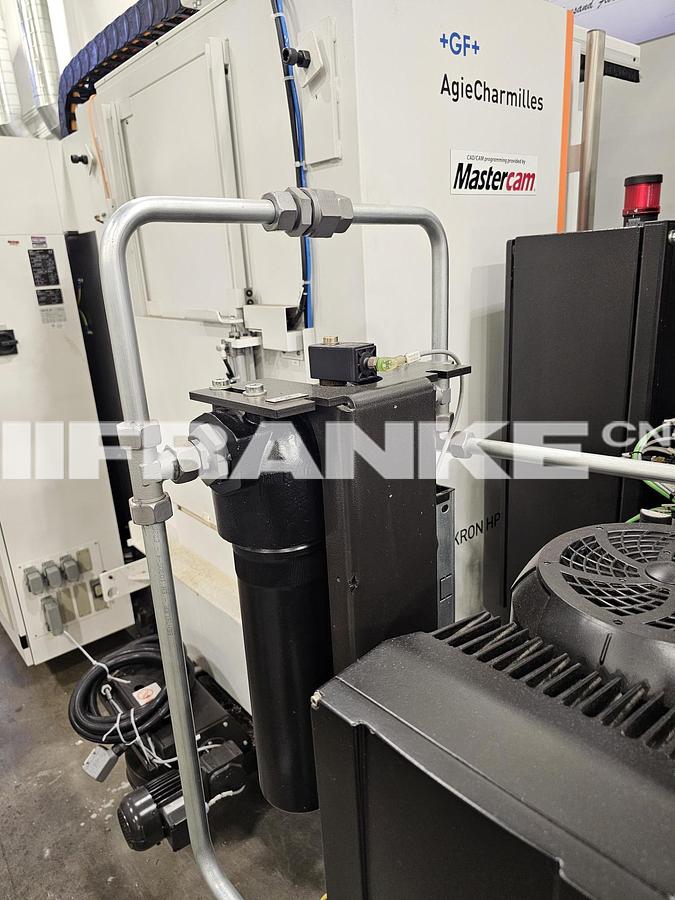

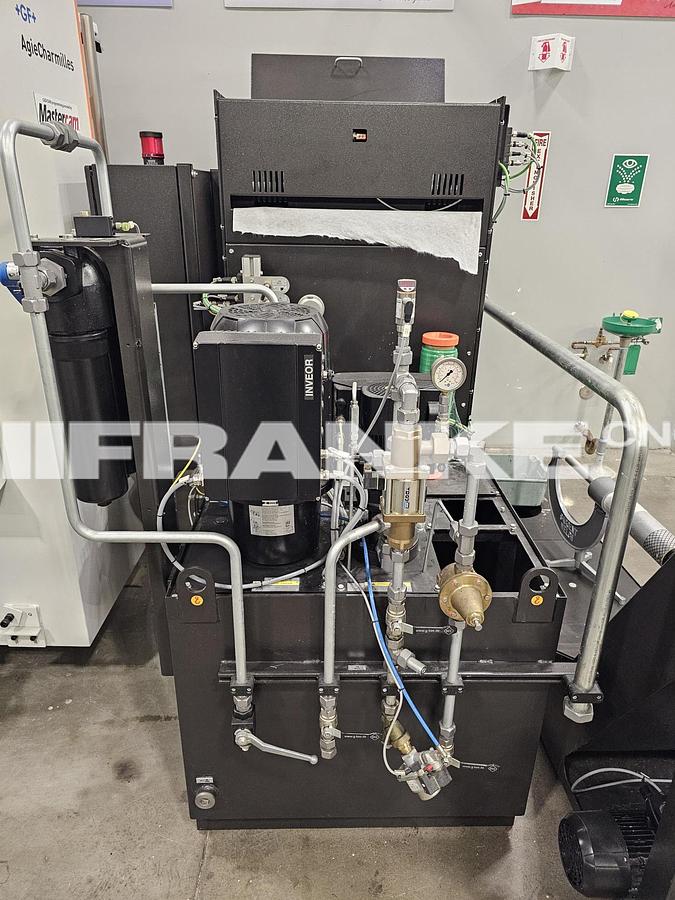

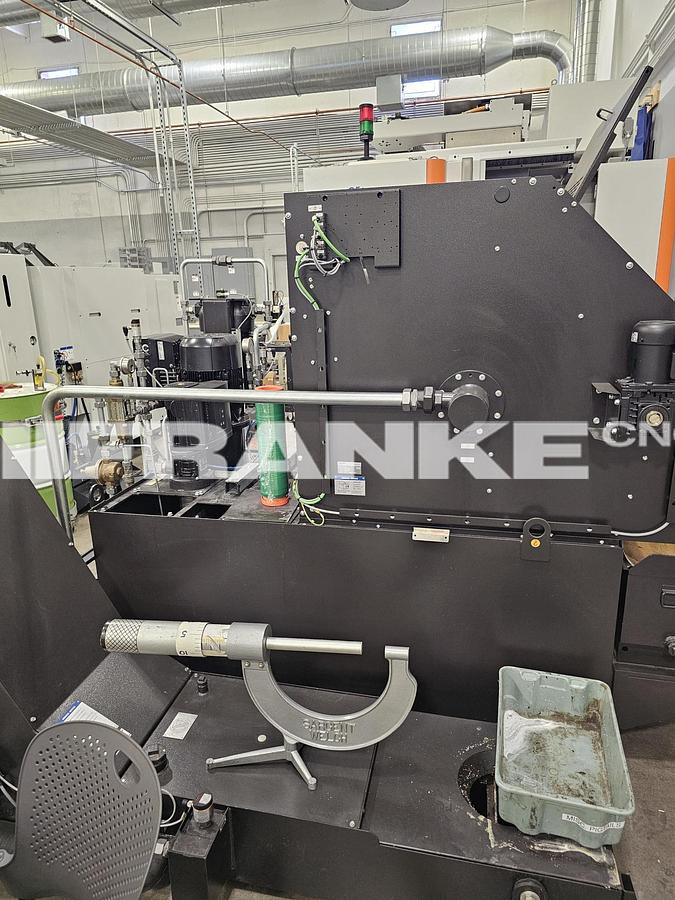

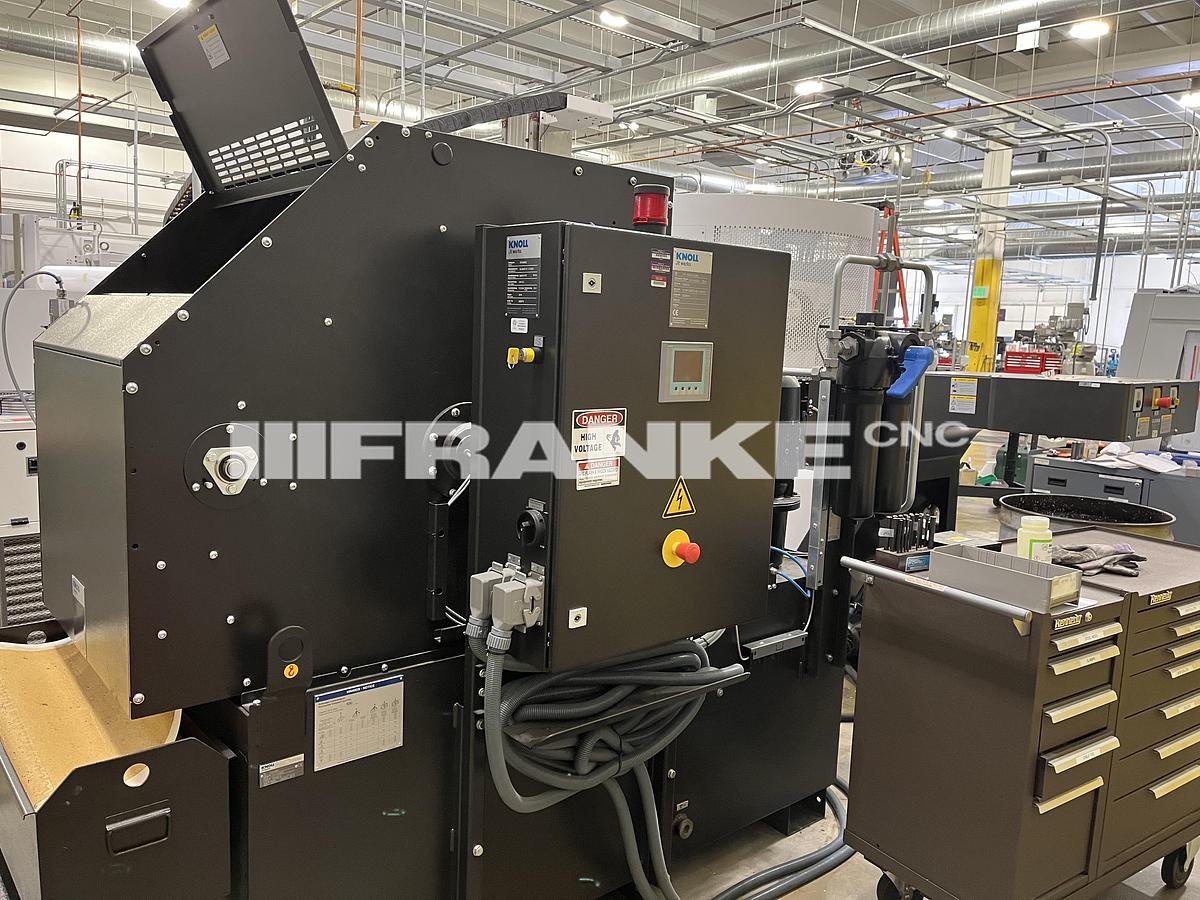

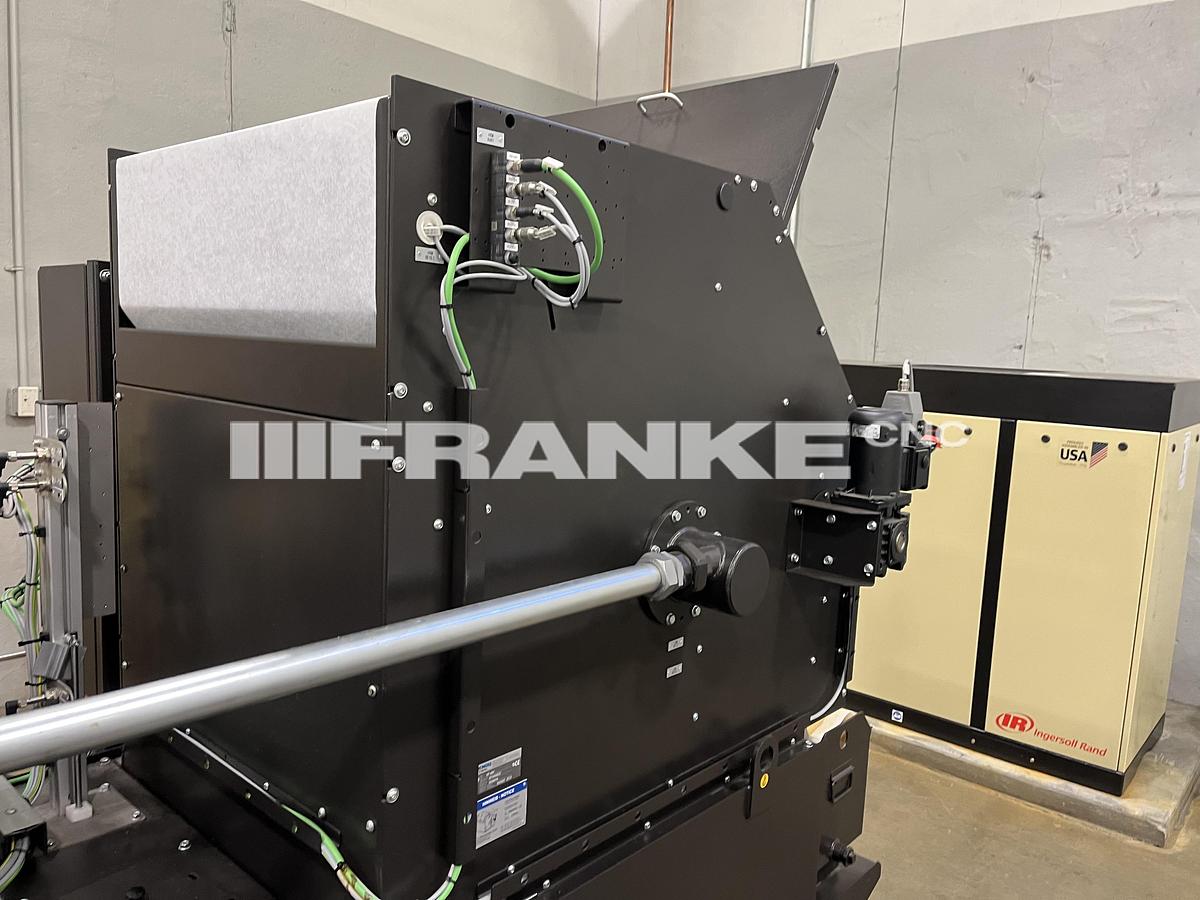

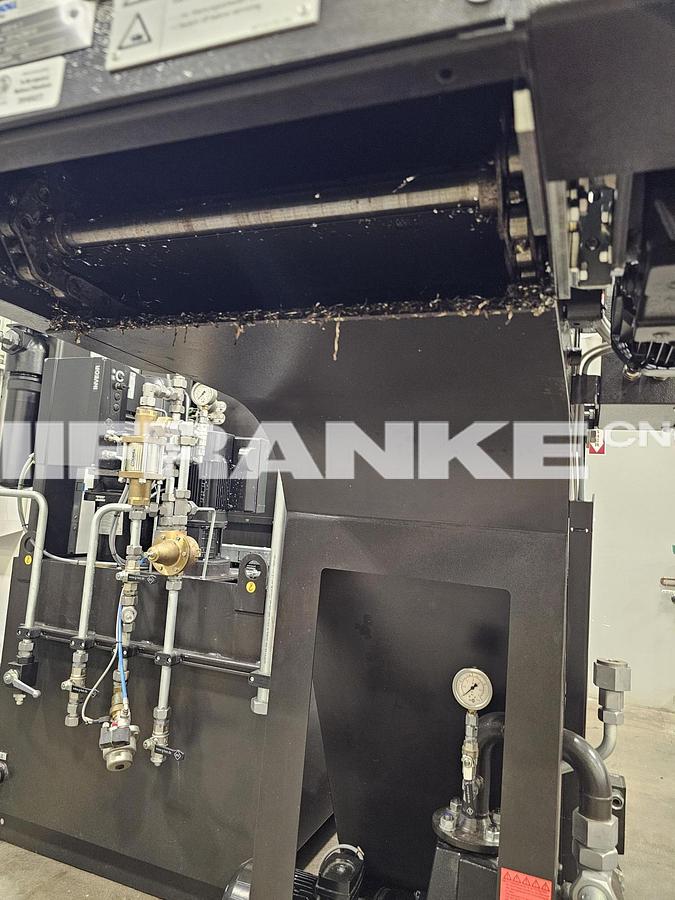

172 gallon (650 l) high performance coolant tank with micro paper filtration

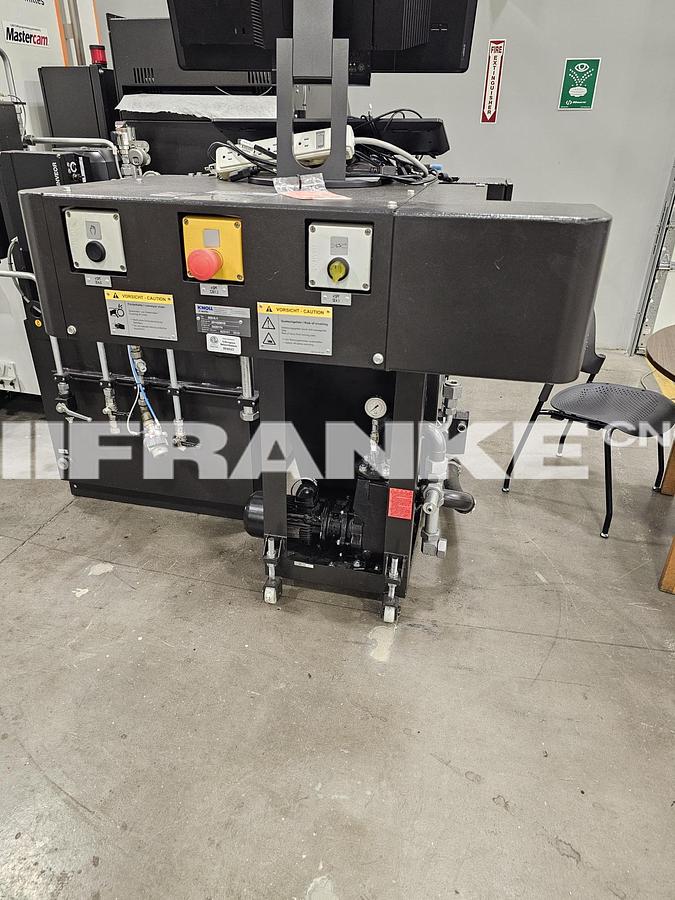

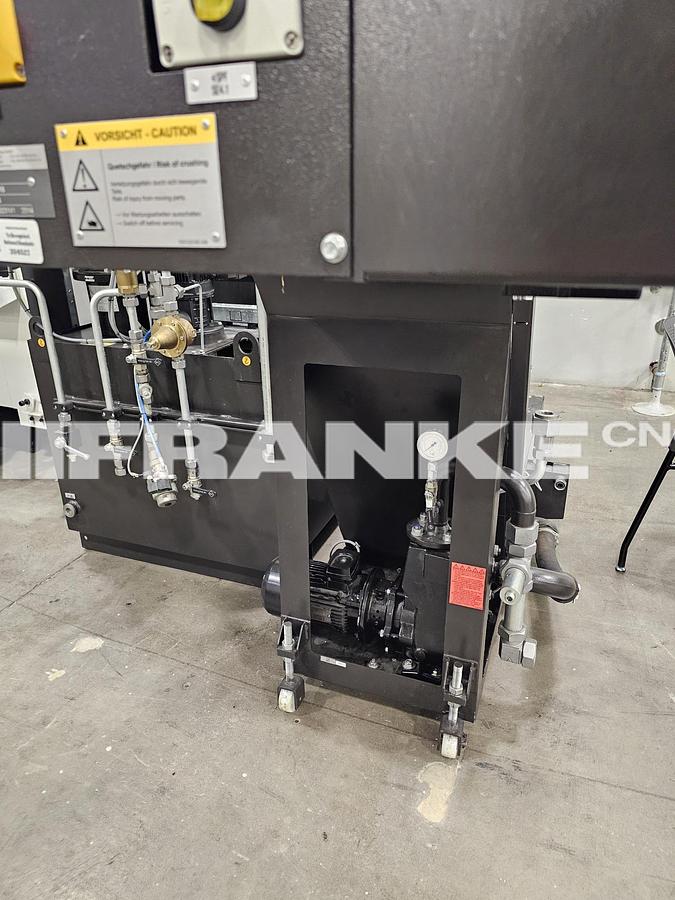

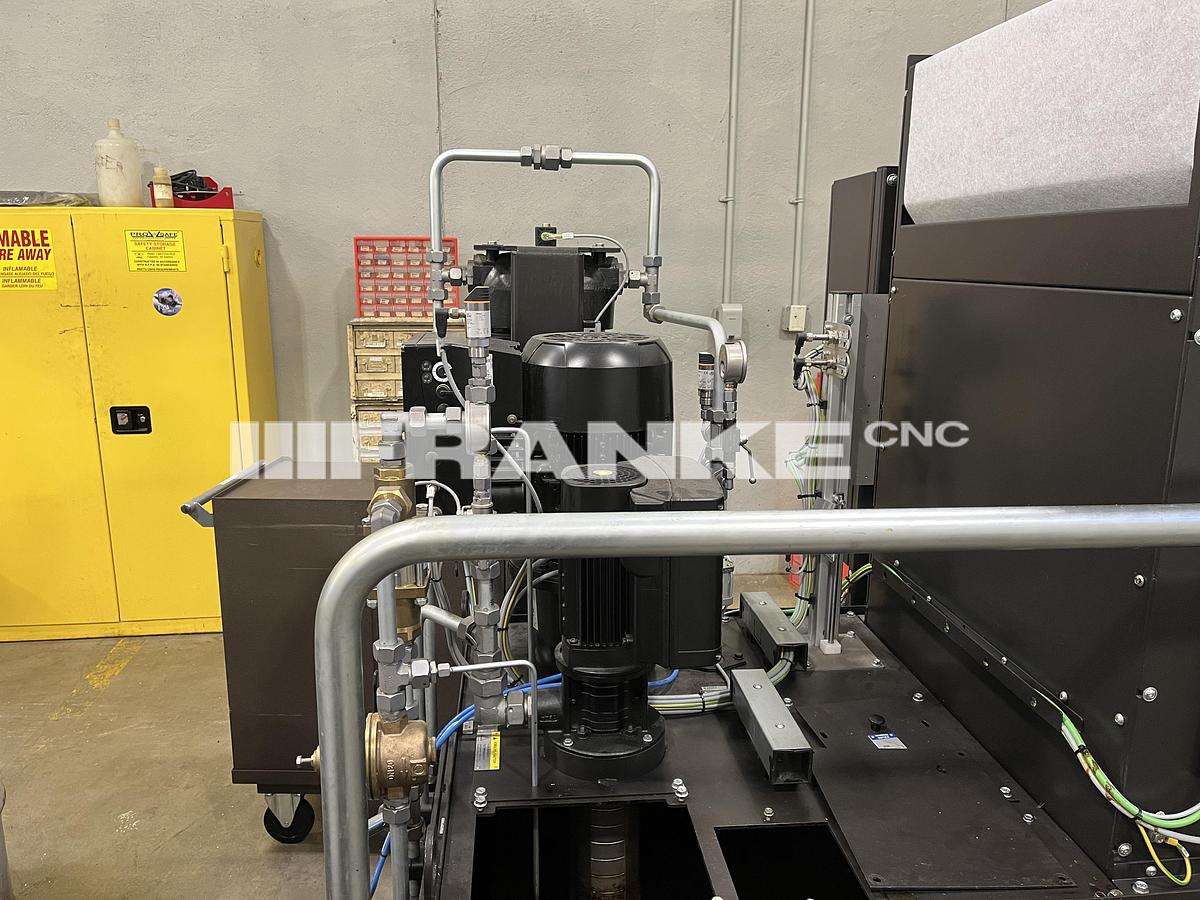

260-1,000 psi(18-70 bar)adjustable high pressure coolant thru the spindle (CTS)

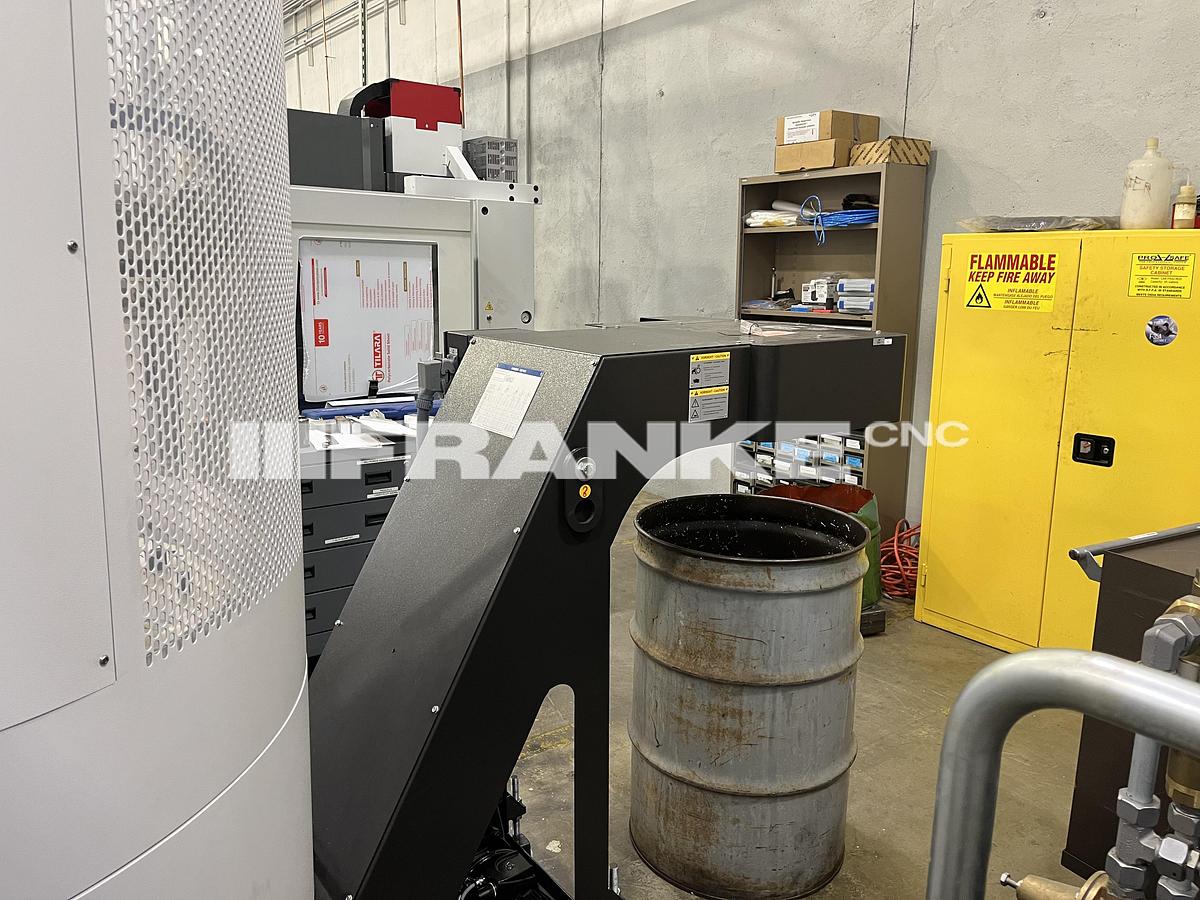

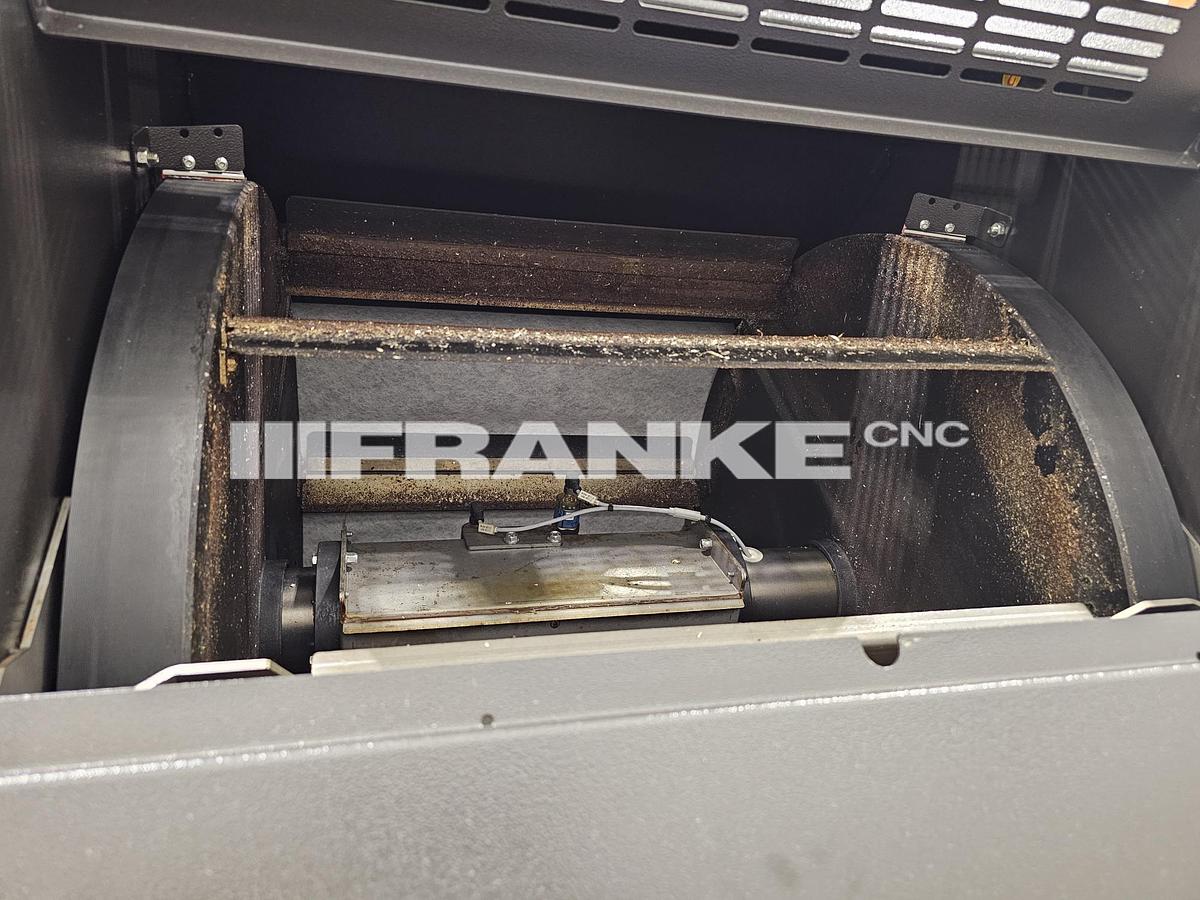

Chip conveyor for higher demands for aluminum machining

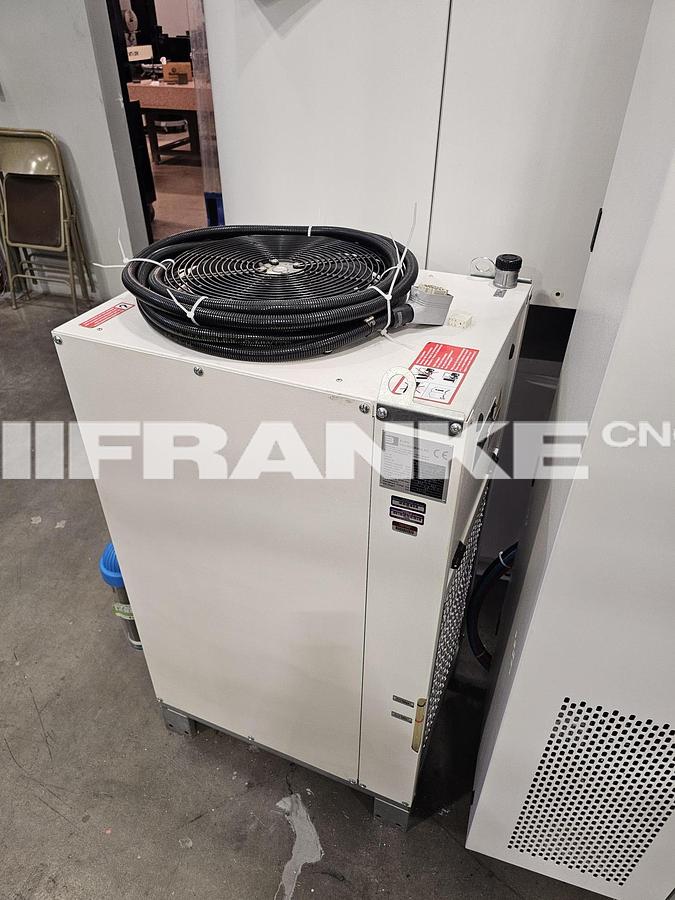

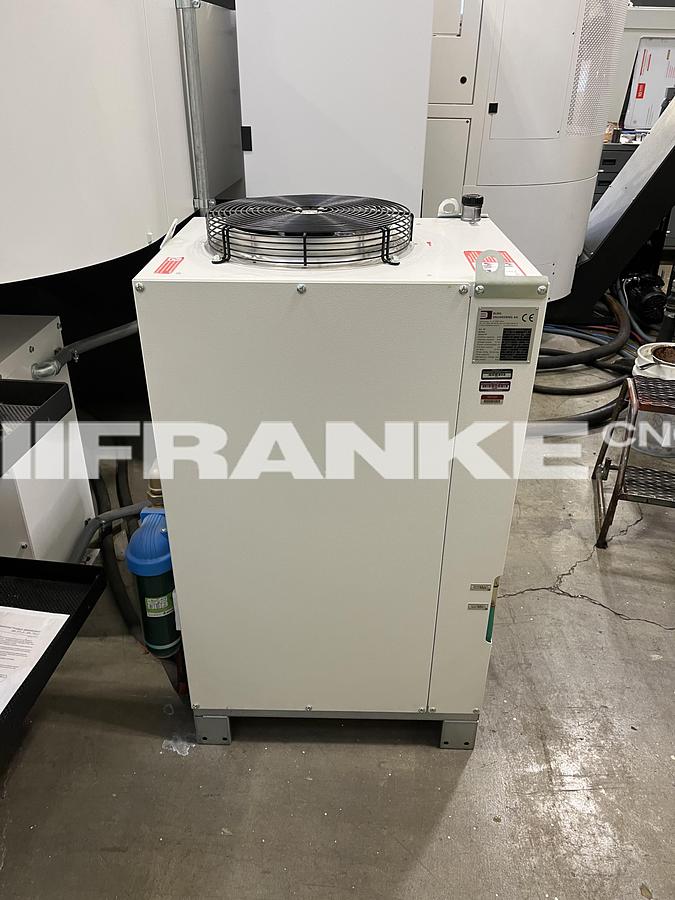

External spindle chiller

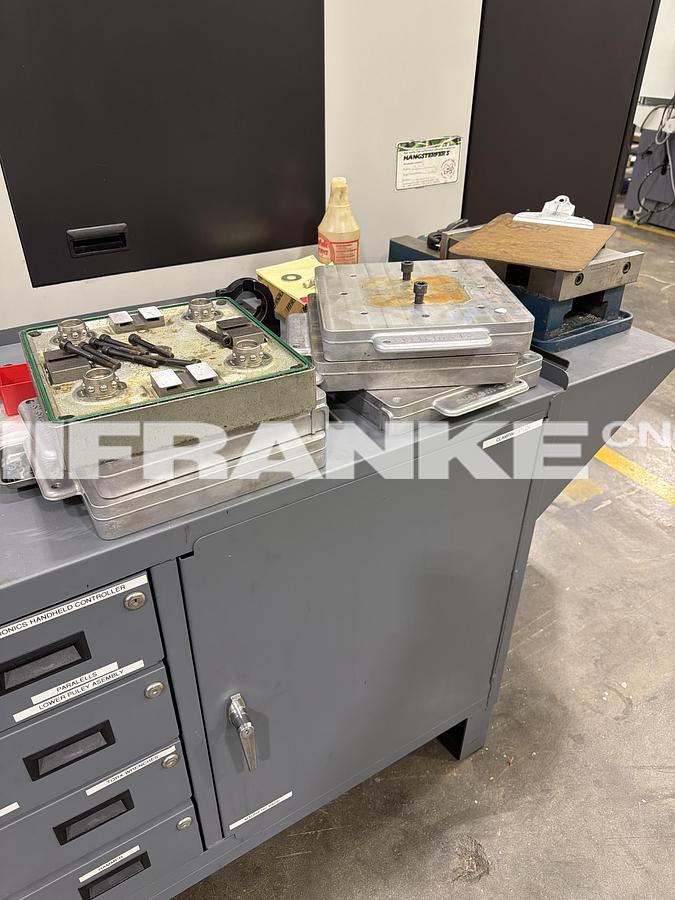

Miscellaneous used pallets

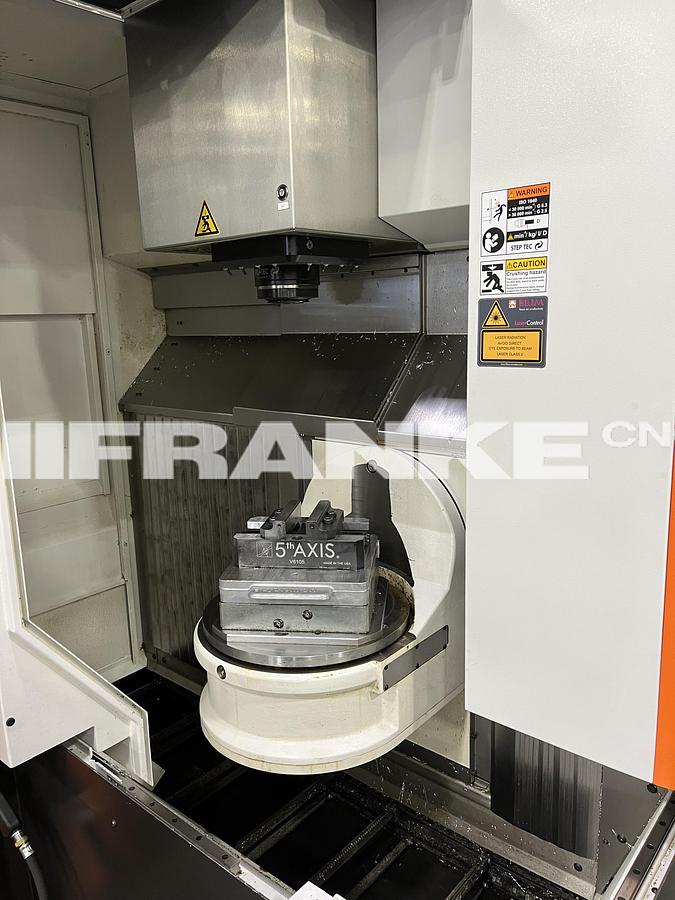

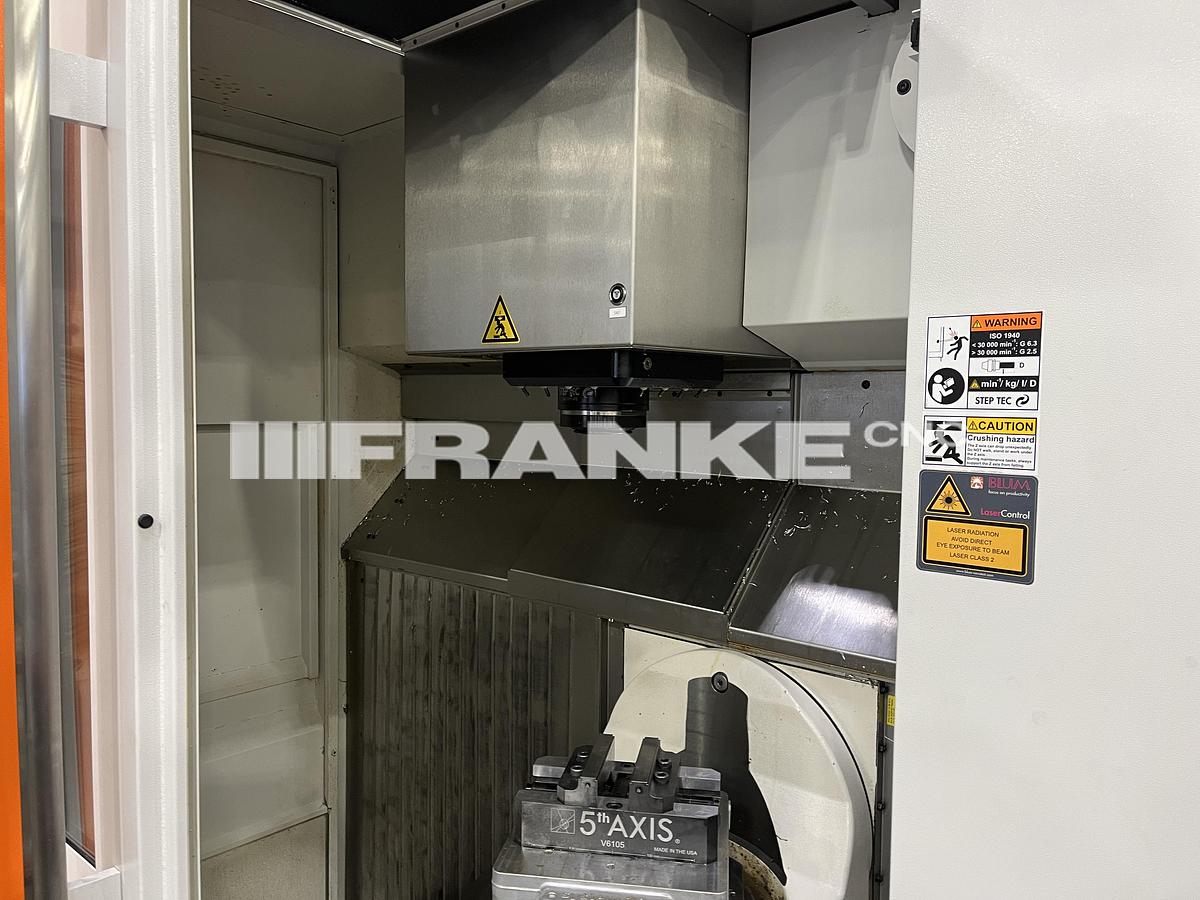

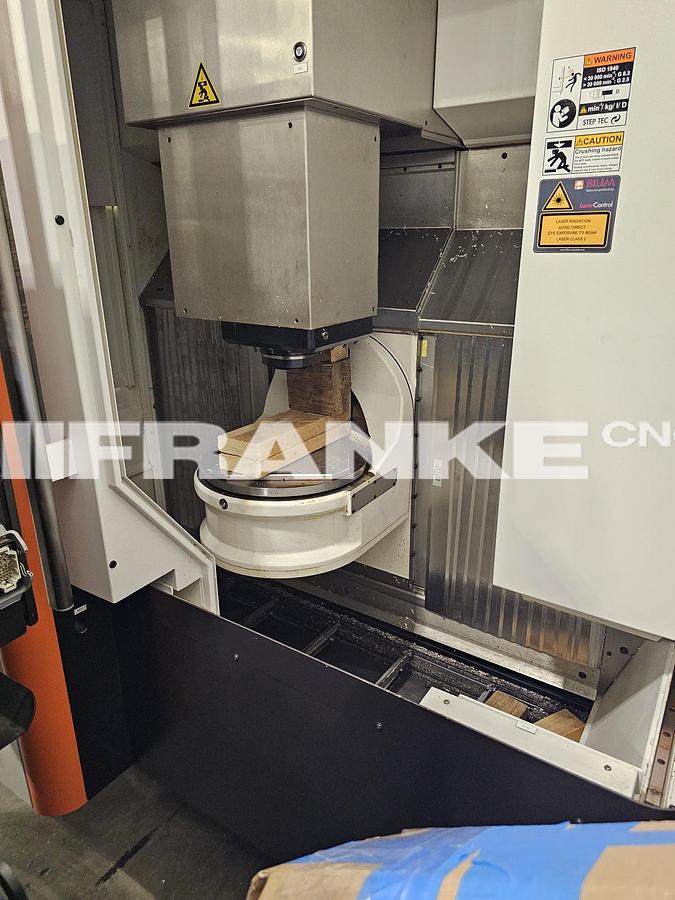

NOTE: 5th Axis vise shown in photos does NOT come with the machine!
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Specifications
| Manufacturer | MIKRON MILL |
| Model | HPM450U |
| Year | 2014 |
| Condition | Used |
| Stock Number | 064614 |
| Working Range Longitudinal X | 23.62" (600 mm) |
| Working Range Transverse Y | 17.72" (450 mm) |
| Working Range Vertical Z | 17.72" (450 mm) |
| Maximum Workpiece Diameter | 17.72" (450 mm) |
| Maximum Workpiece Height | 17.72" (450 mm) |
| Maximum Workpiece Weight | 330 lb (150 kg) manual loading |
| Max. Workpiece Weight: Automatic | 198 lb (90 kg) using the pallet changer |
| Rotary Tilting Table Tilt, B-Axis | -120/+45 degrees |
| Rotary Tilting Table Rotary, C-Axis | n x 360 degrees |
| Number Of Simultaneous Axes | 5/5 Simultaneous |
| X/Y/Z Axes Drive | Ballscrews |
| B/C Axes Drive | Direct Drive Torque Motors |
| Rapid Traverse X/Y/Z | 866 ipm (22 m/min) |
| Table Rapid Speed B-Axis (Tilt) | 50 rpm |
| Table Rapid Speed C-Axis (Rotary) | 140 rpm |
| Maximum Acceleration X/Y/Z | Up to 5m/s^2 |
| Rotary Tilting Table (RTT) Pallet | System 3R Dynafix |
| RTT Standard Pallet Size | 11.02" x 11.02" (280 mm x 280 mm) |
| RTT Maximum Pallet Size | 13.78" x 13.78" (350mm x 350 mm) |
| STEP TEC Swiss made Spindle | 100-20,000 rpm HSK-A63 taper |
| Spindle Power | 40 hp (30 kW) |
| Spindle Torque | 67 lb-ft (91 Nm) |
| Spindle Max. Tool Length | 13.75" (350 mm) from the spindle nose |
| Tool Changer | 60 positions |
| Standard max. Tool Diameter | 3.15" (80 mm) |
| Machine Weight | Approx. 16,976 lb (7,700 kg) with the pallet changer |
| Machine Base | Polymer concrete (man made granite) |
