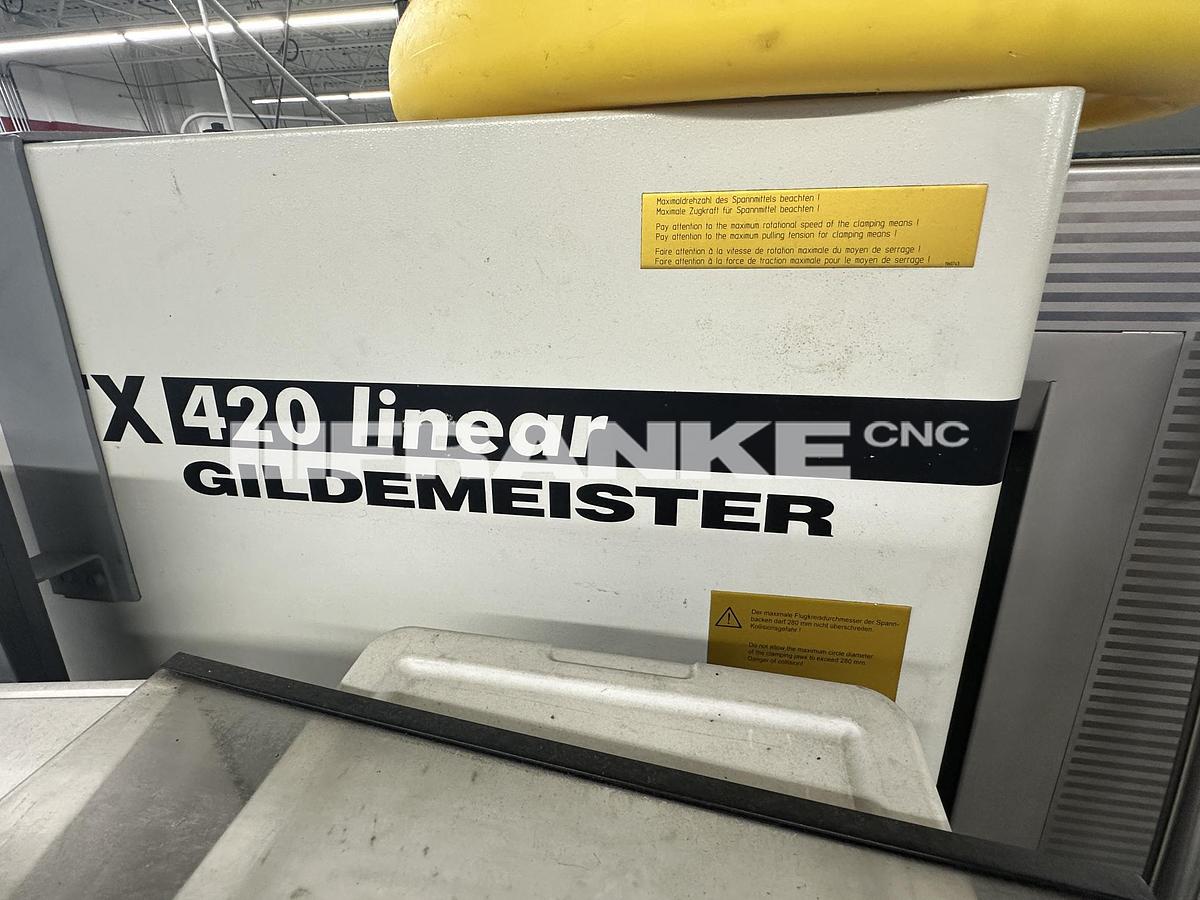

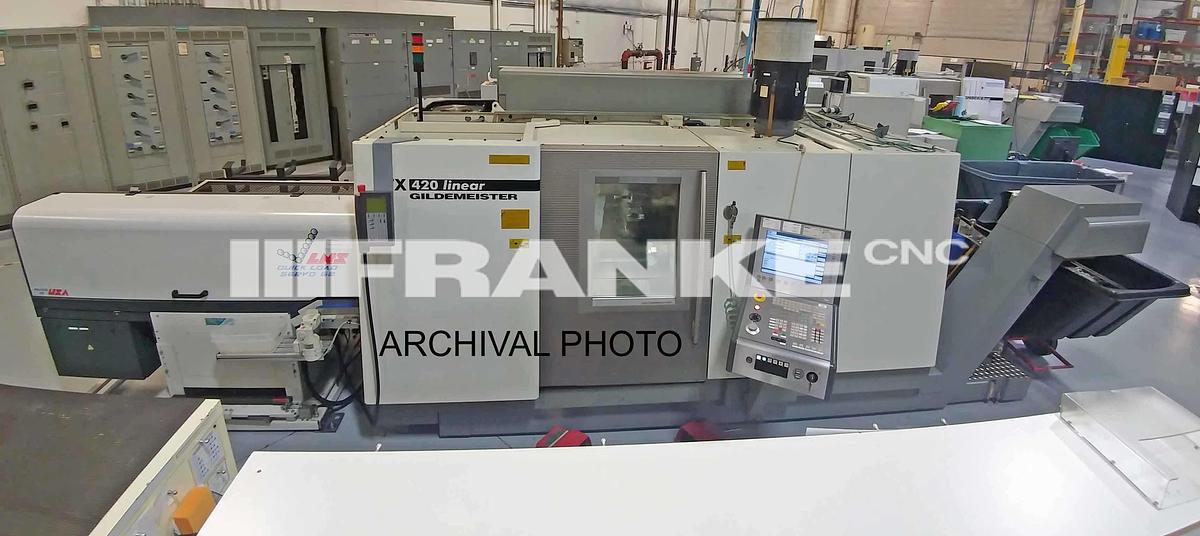

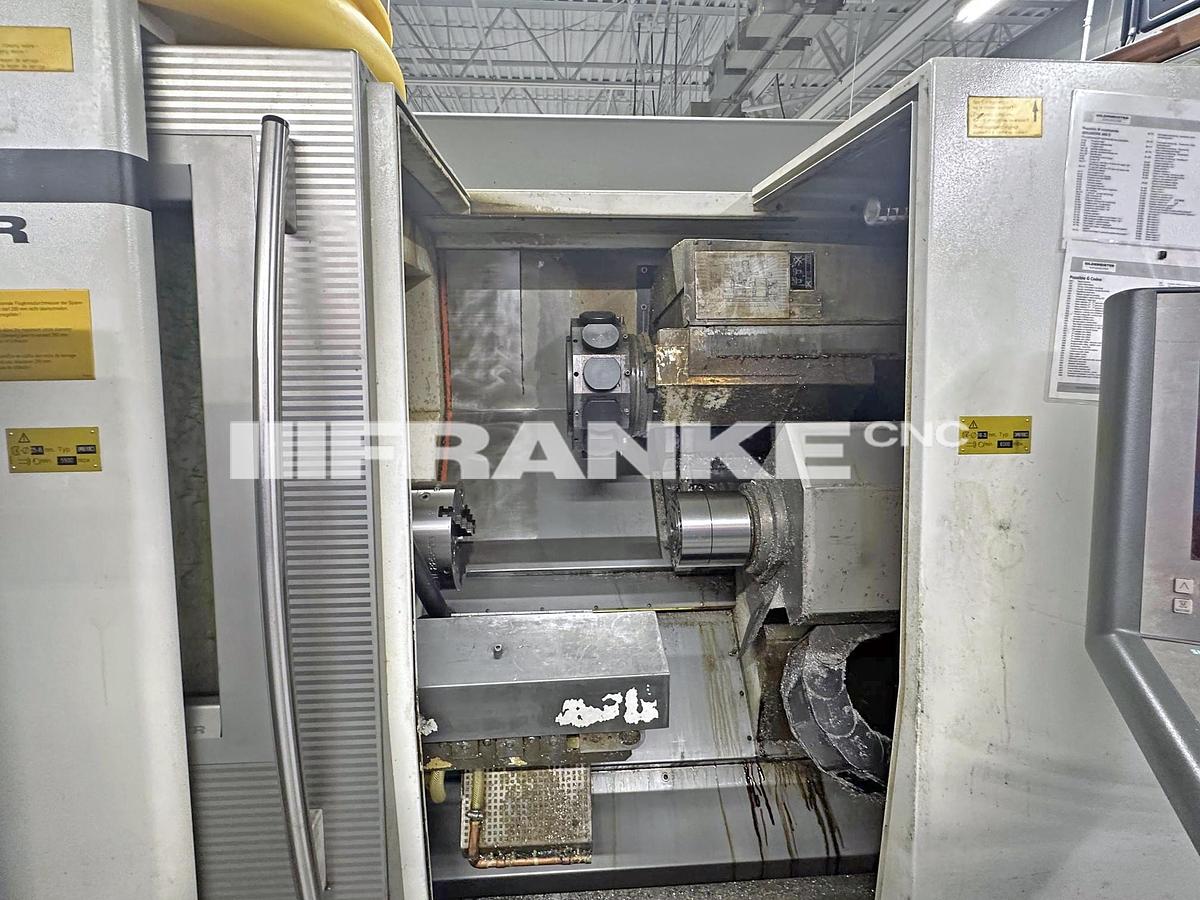

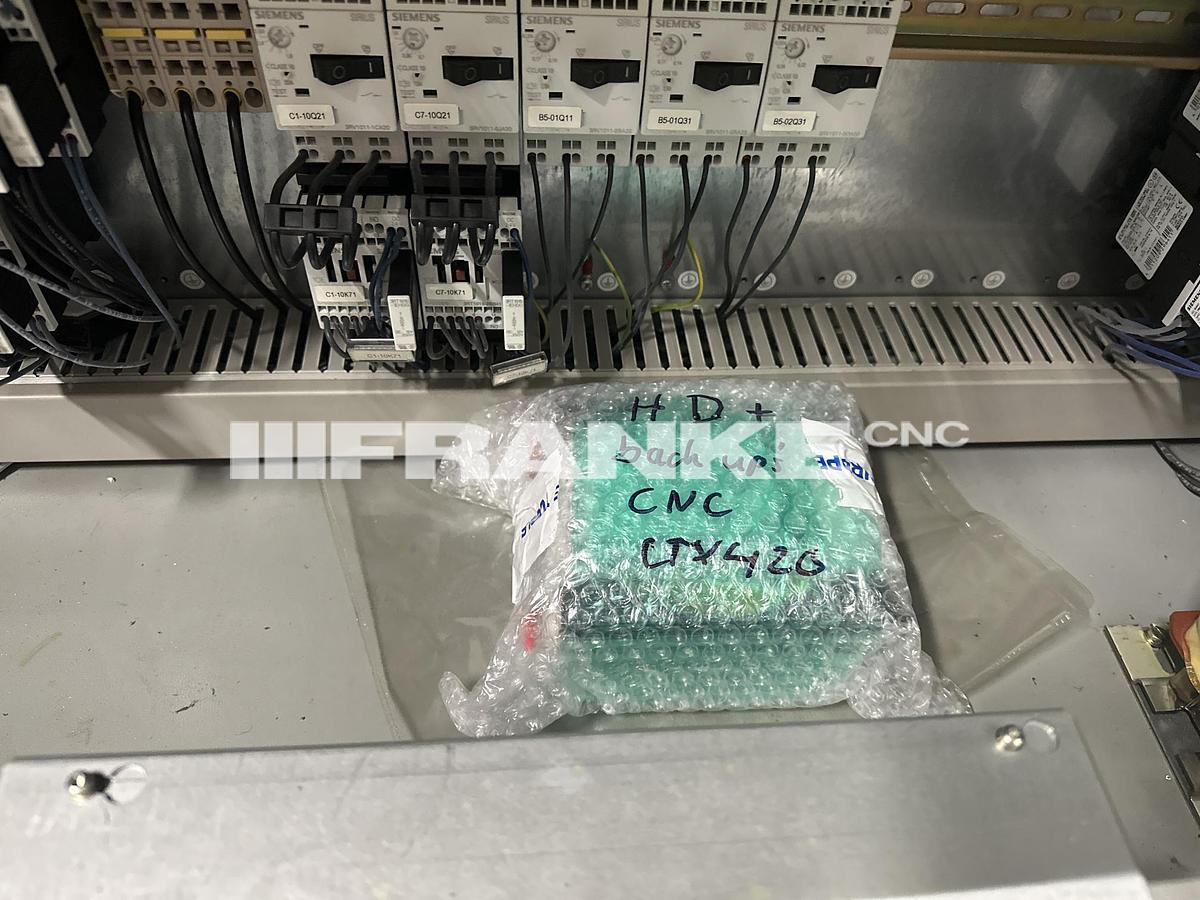

2003 DMG GILDEMEISTER CTX 420 linear CNC lathe with C & Y Axes

Description

The 2003 DMG GILDEMEISTER CTX 420 linear CNC lathe features C and Y axes and is known for its precision and productivity. Built in Bielefeld, Germany, it includes a Siemens 840D powerline control, providing an efficient user interface through its ShopTurn software. The lathe is equipped with a highly dynamic linear drive on the X-axis, allowing rapid traverses up to 2,362 ipm, minimizing idle time and enhancing productivity. The machine is capable of handling diverse machining tasks with a maximum swing diameter of 26.8" and a bar capacity of 2.6". It boasts integrated spindle motors for both the main and counter spindles, delivering speeds up to 5,000 rpm and 7,000 rpm respectively. The main spindle provides a maximum torque of up to 270.1 ft/lbs (40% DC), and the counter spindle offers up to 146 ft/lbs (40% DC). A key feature of the CTX 420 linear is its 12-station turret with driven tool capability, supporting a maximum speed of 4,500 rpm for driven tools. The machine's robust build and linear guideways ensure stability and precision, complemented by a 46.23-gallon coolant capacity for prolonged operations. This well-engineered CNC lathe offers high performance and excellent operator convenience, making it suitable for a wide range of turning applications.

EQUIPPED WITH:

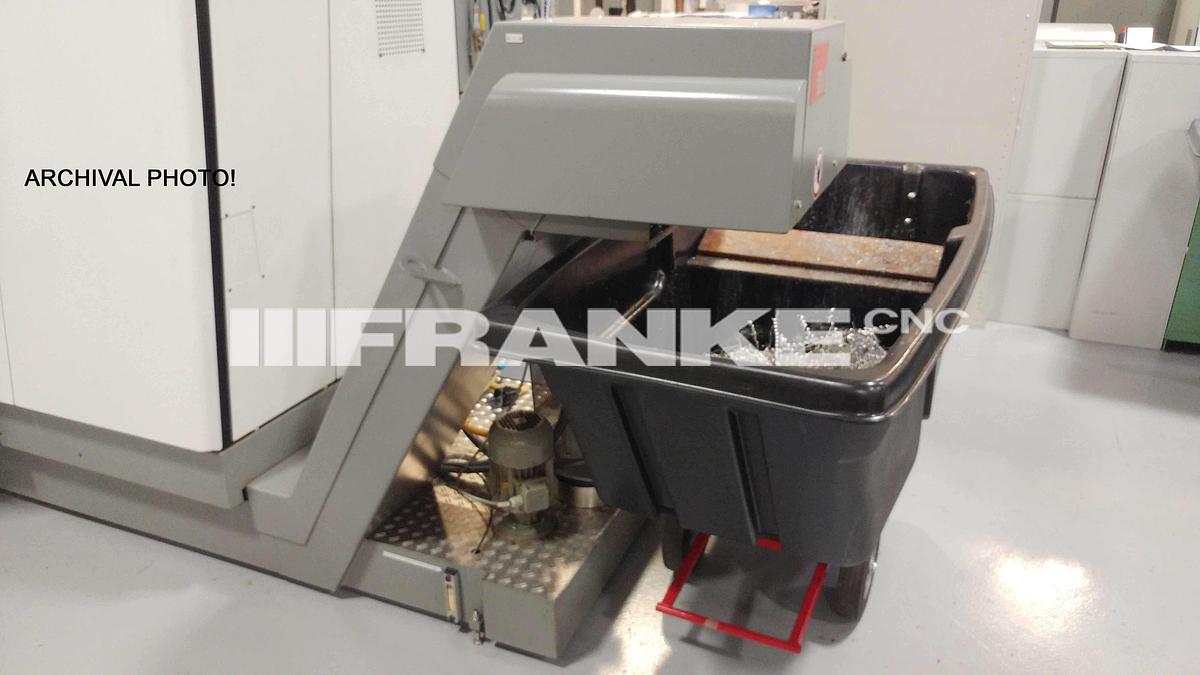

Chip Conveyor

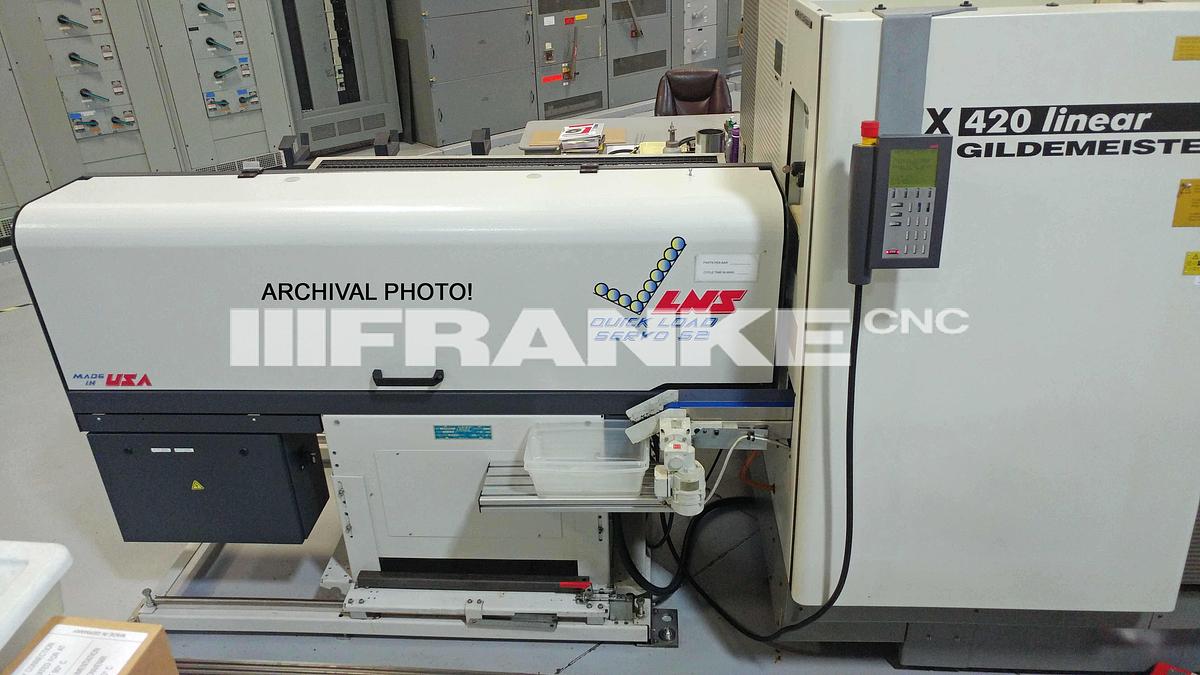

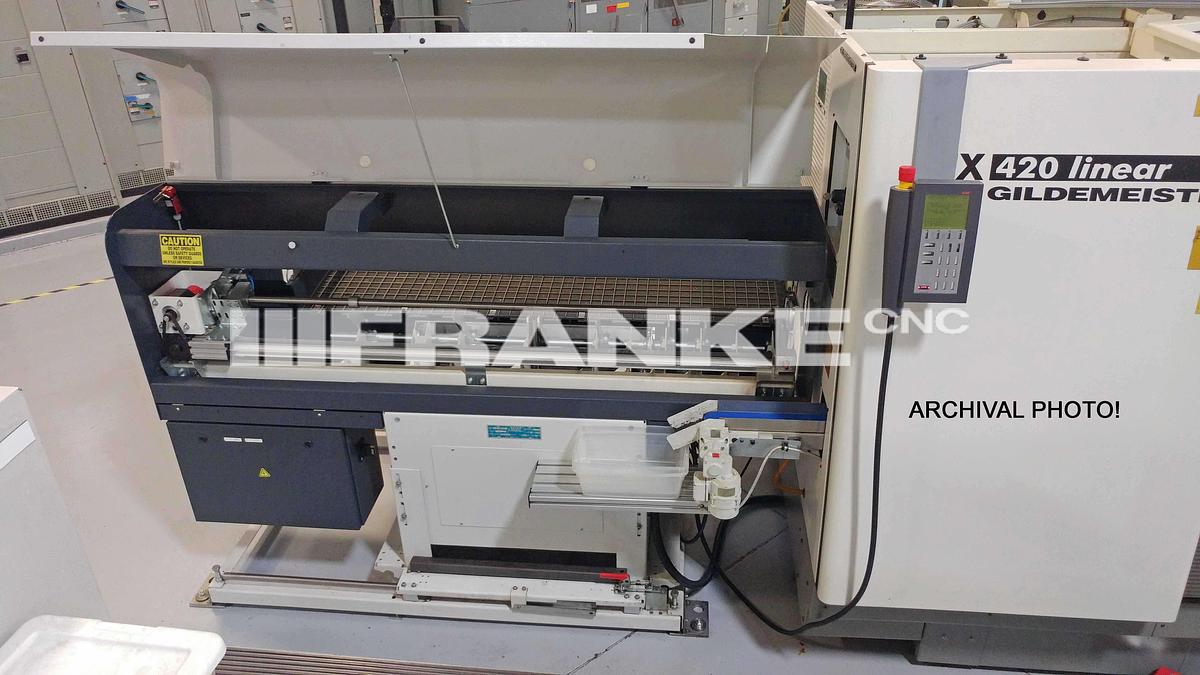

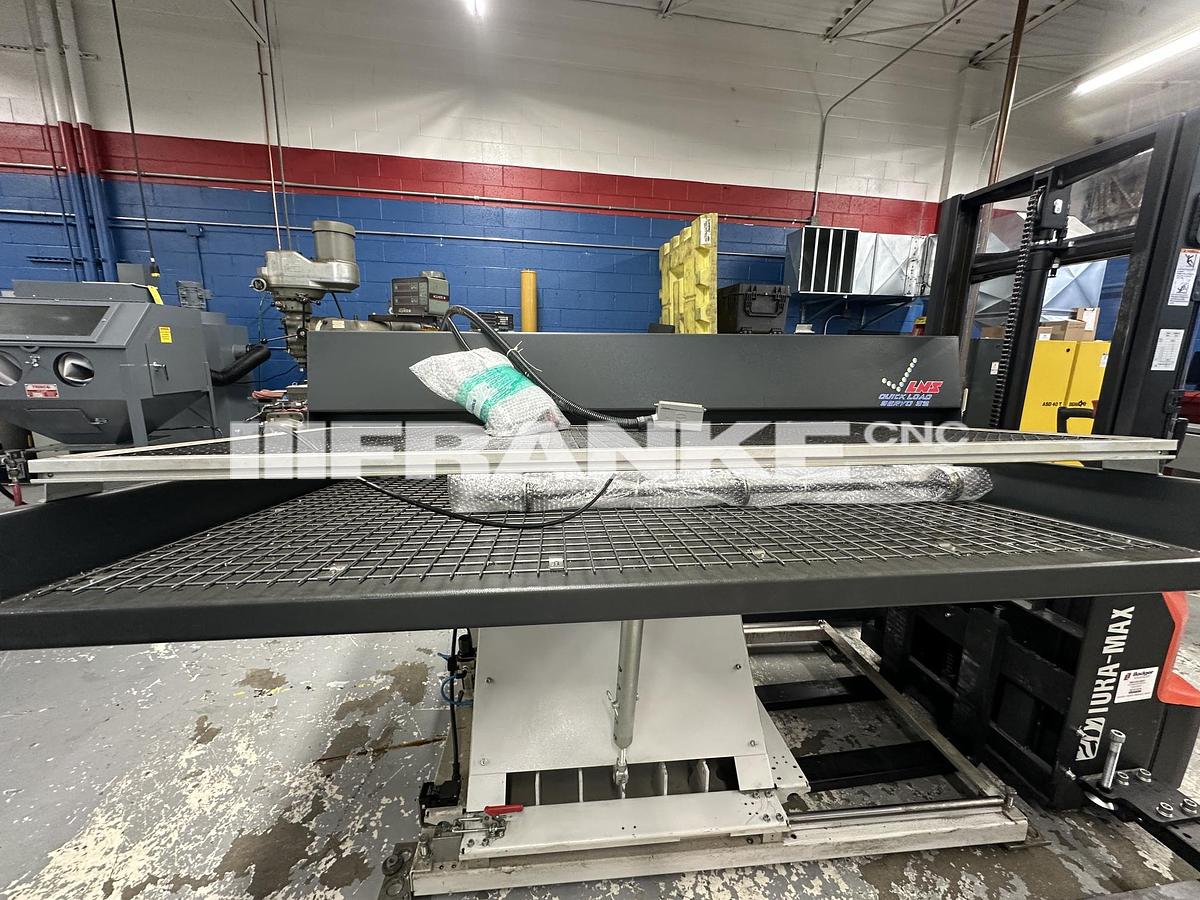

LNS QUICKLOAD SERVO S2 bar loader

Bar Machining Package consisting of:

-Hollow Clamping Cylinder

-Parts Catcher

-Interface for bar loading magazine

-Conveyor for finished parts

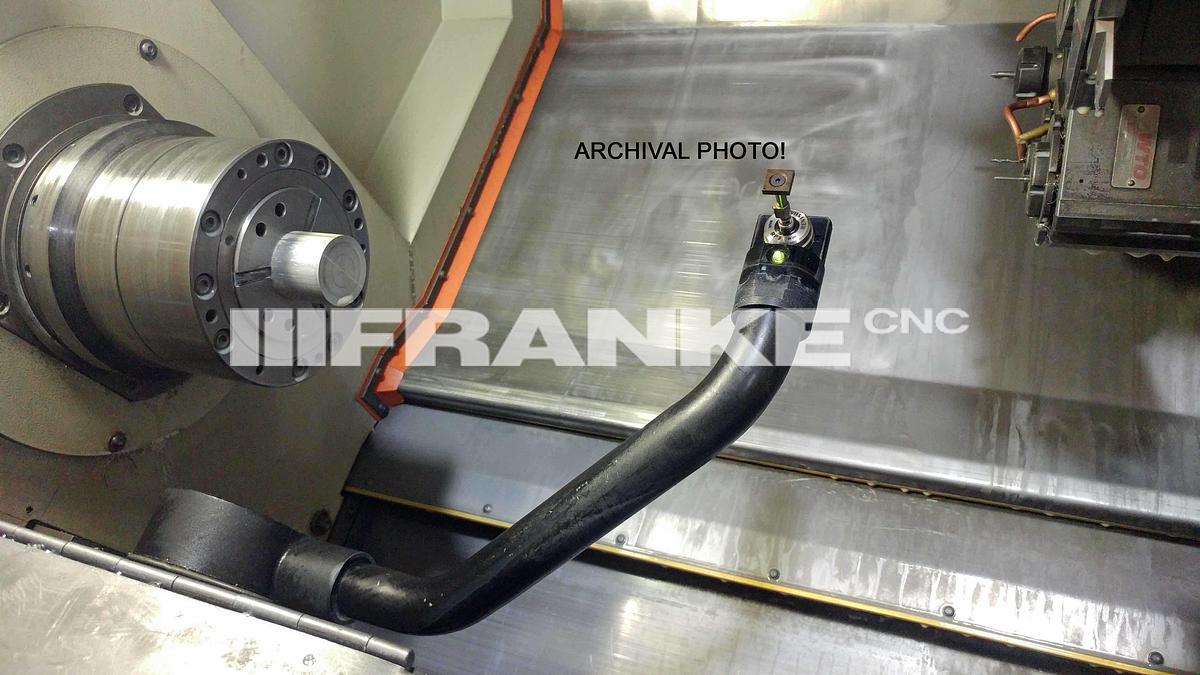

Tool Measuring Arm

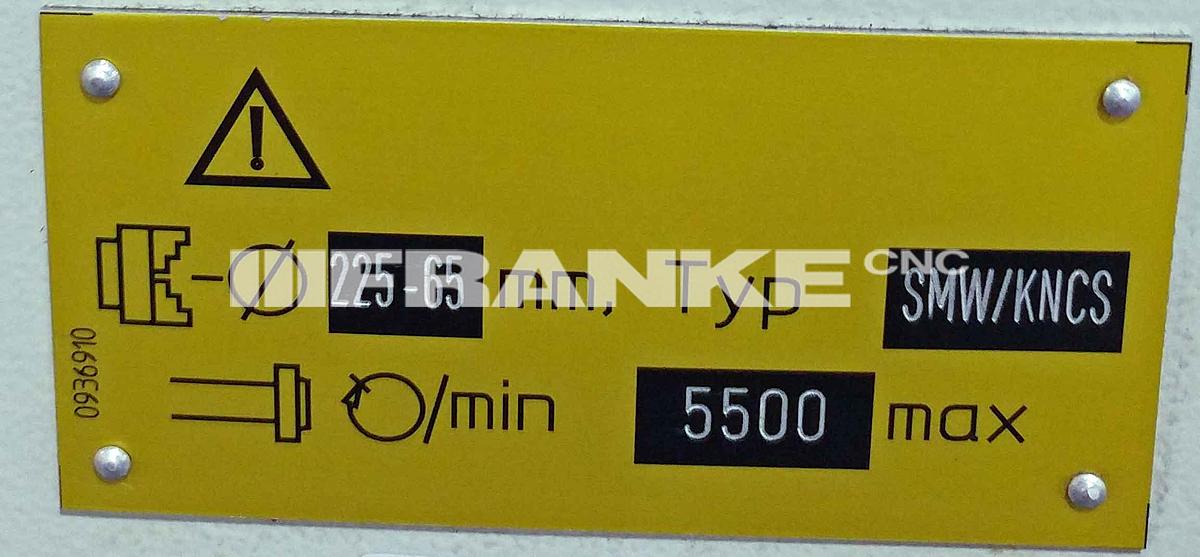

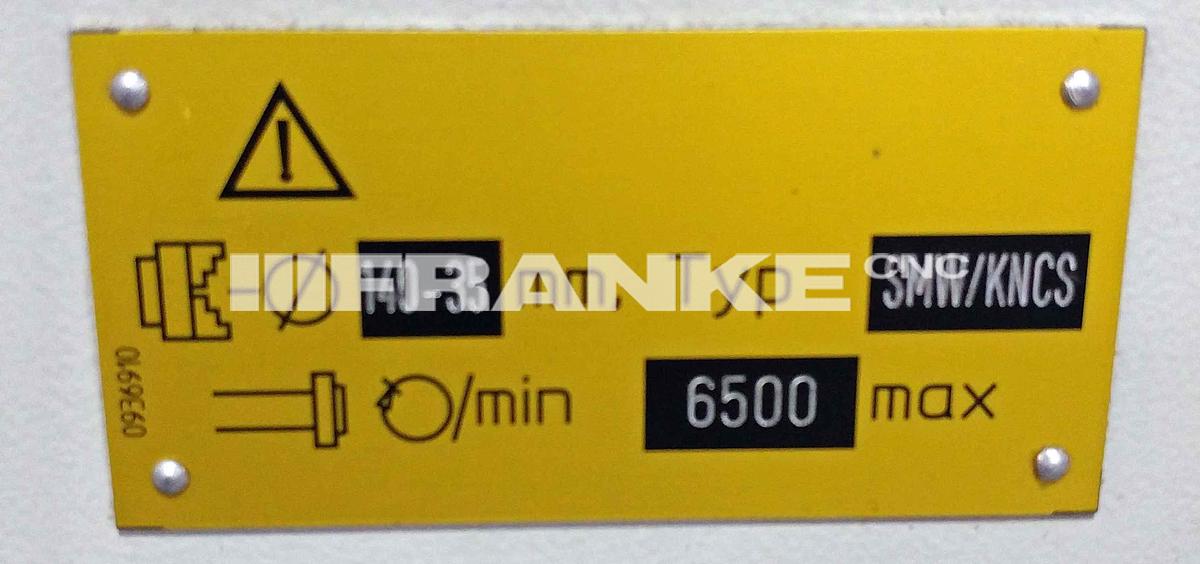

SMW/KNCS 225-65 mm chuck on main spindle

SMW/KNCS 140-35 mm chuck on sub spindle

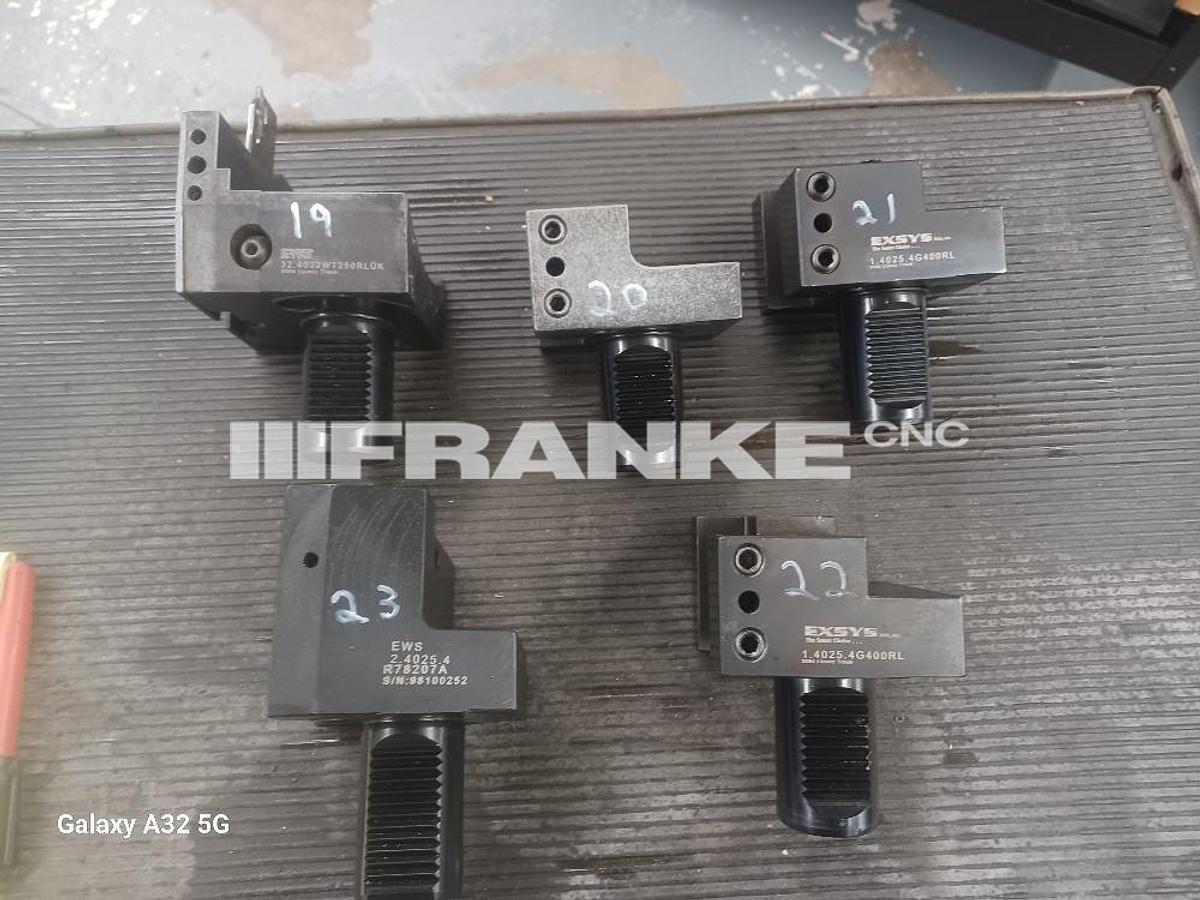

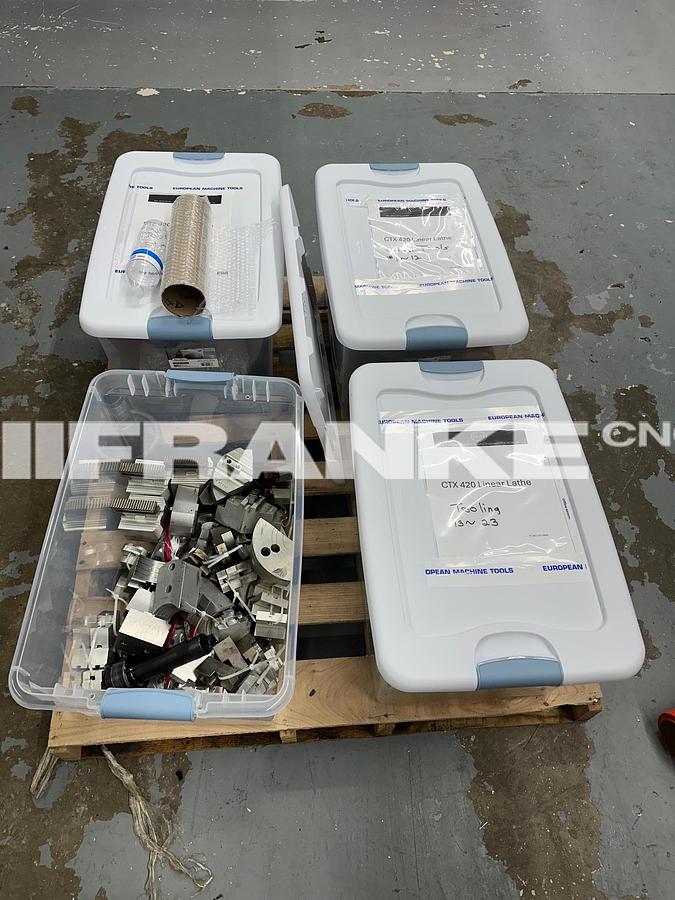

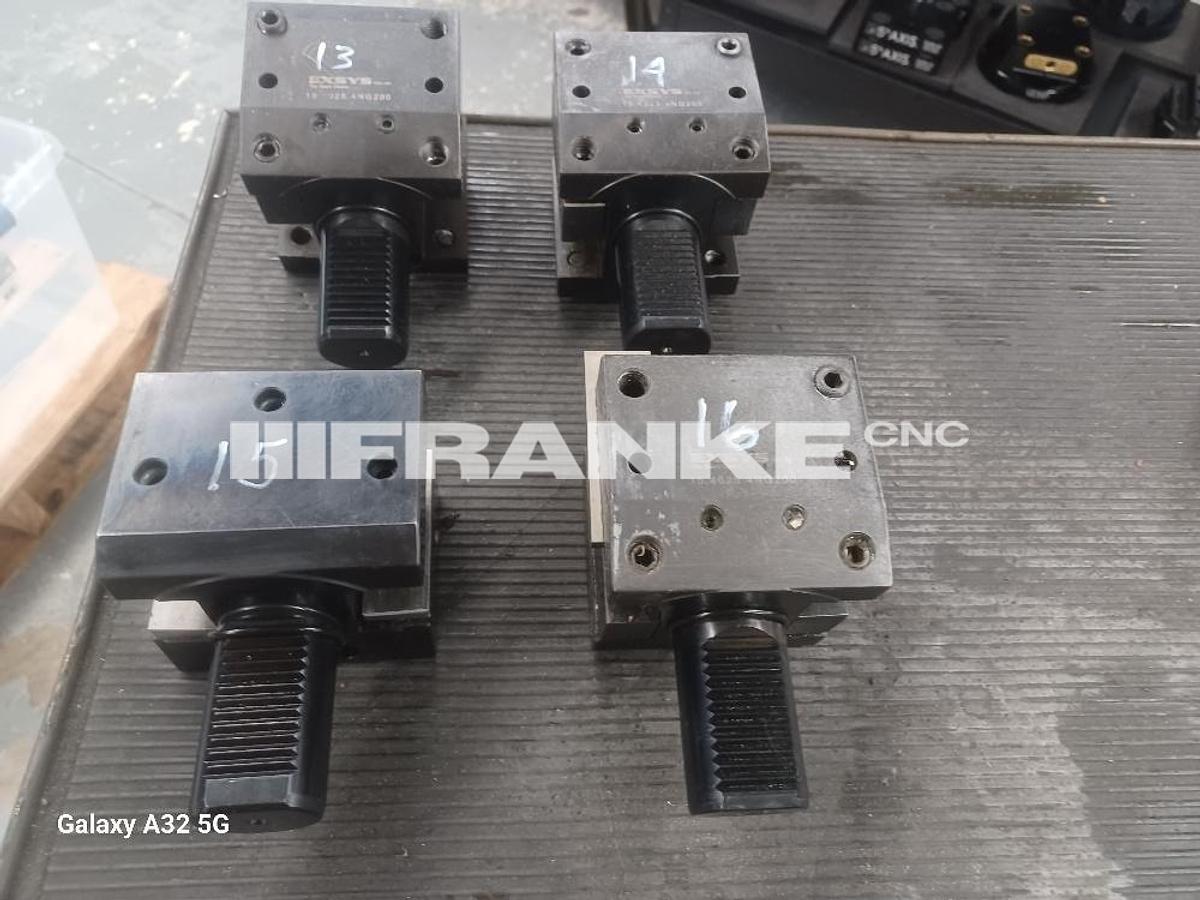

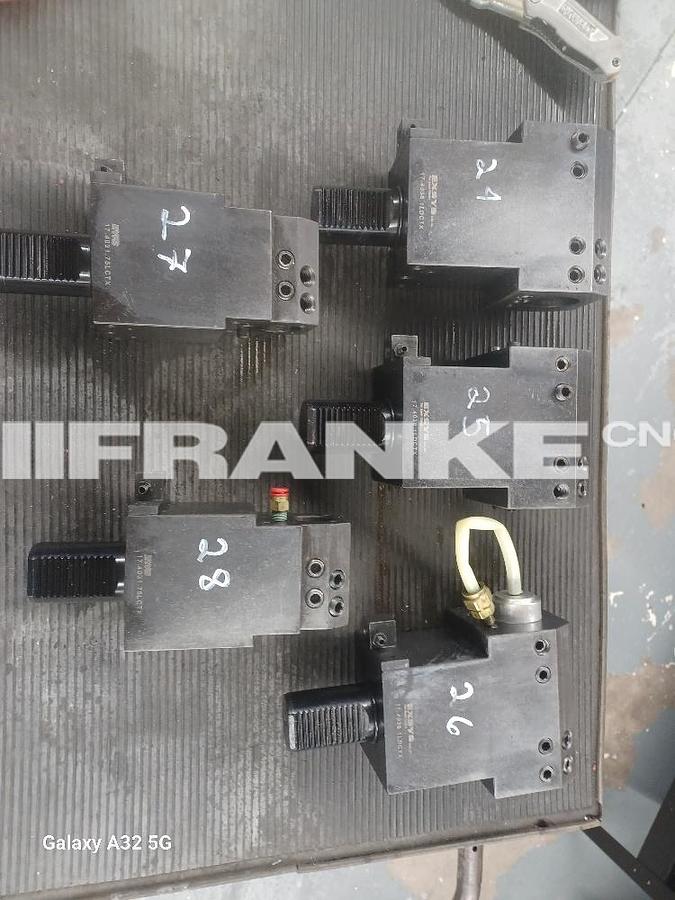

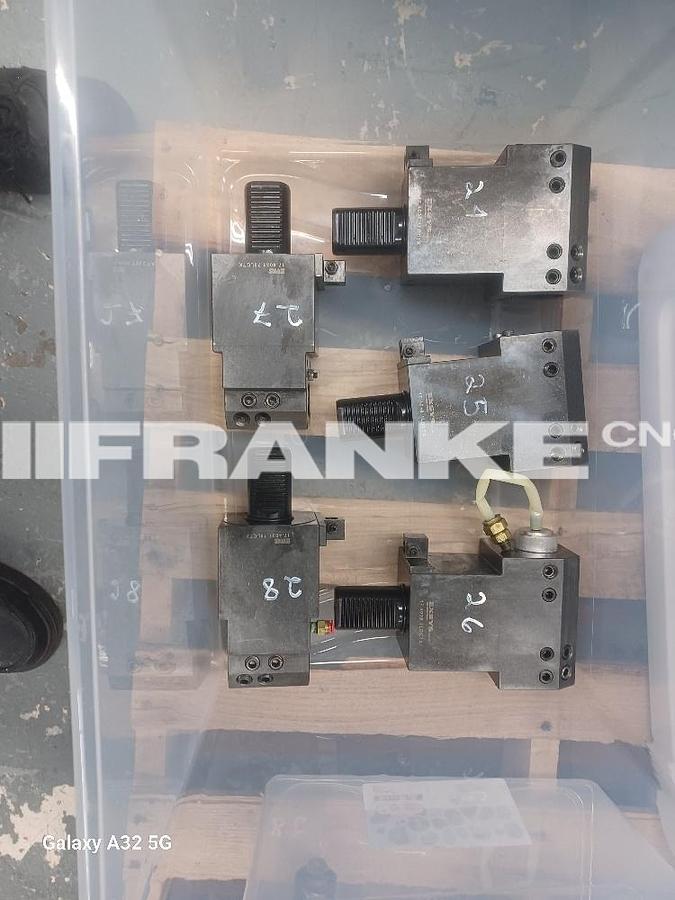

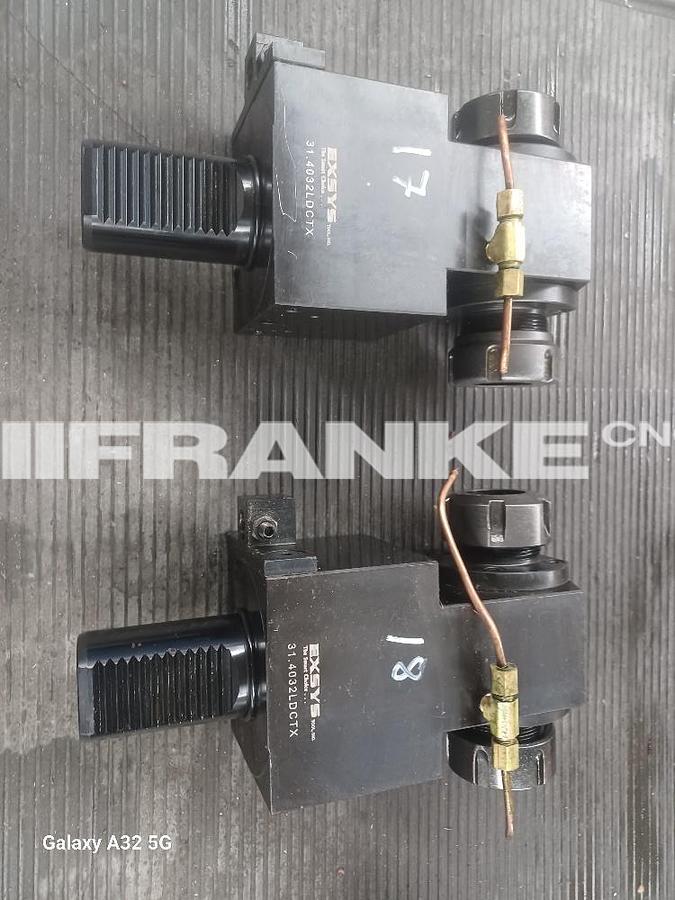

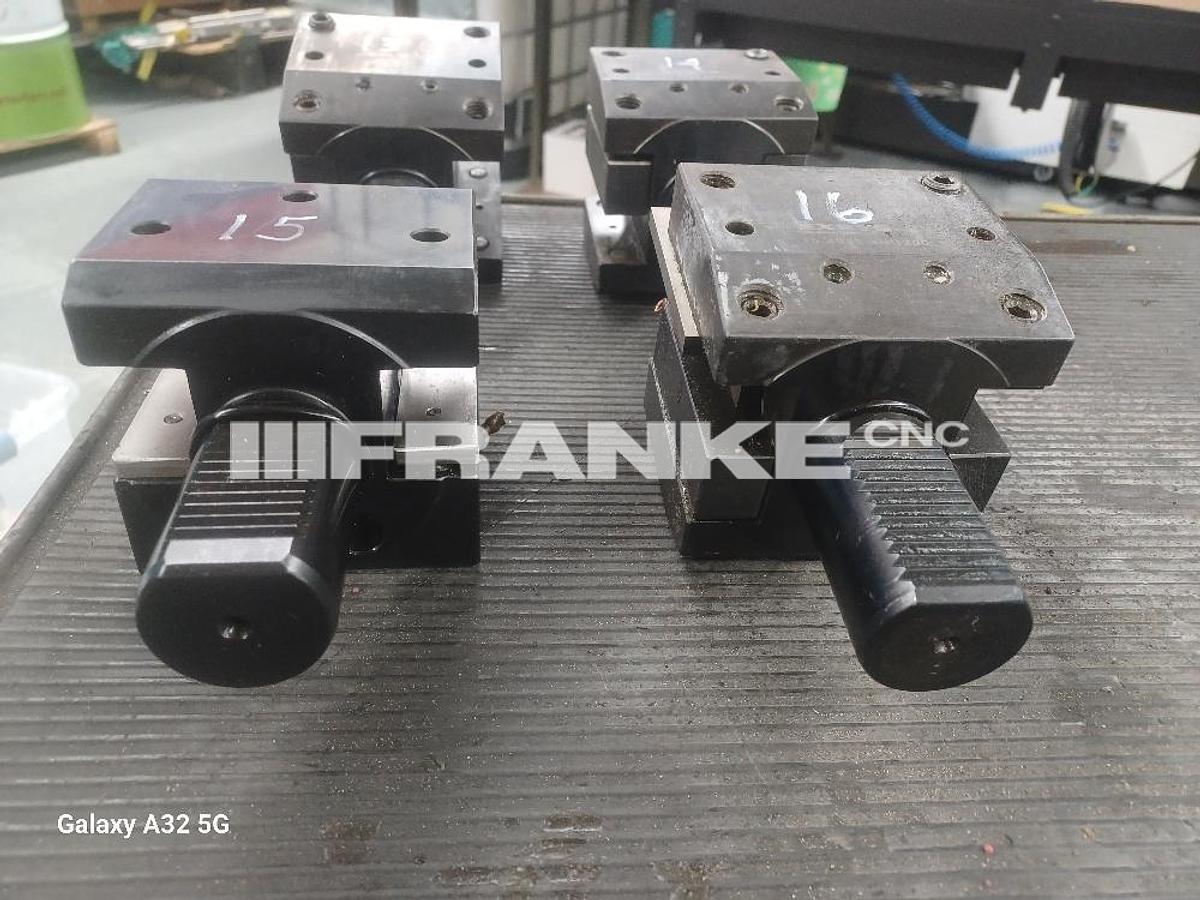

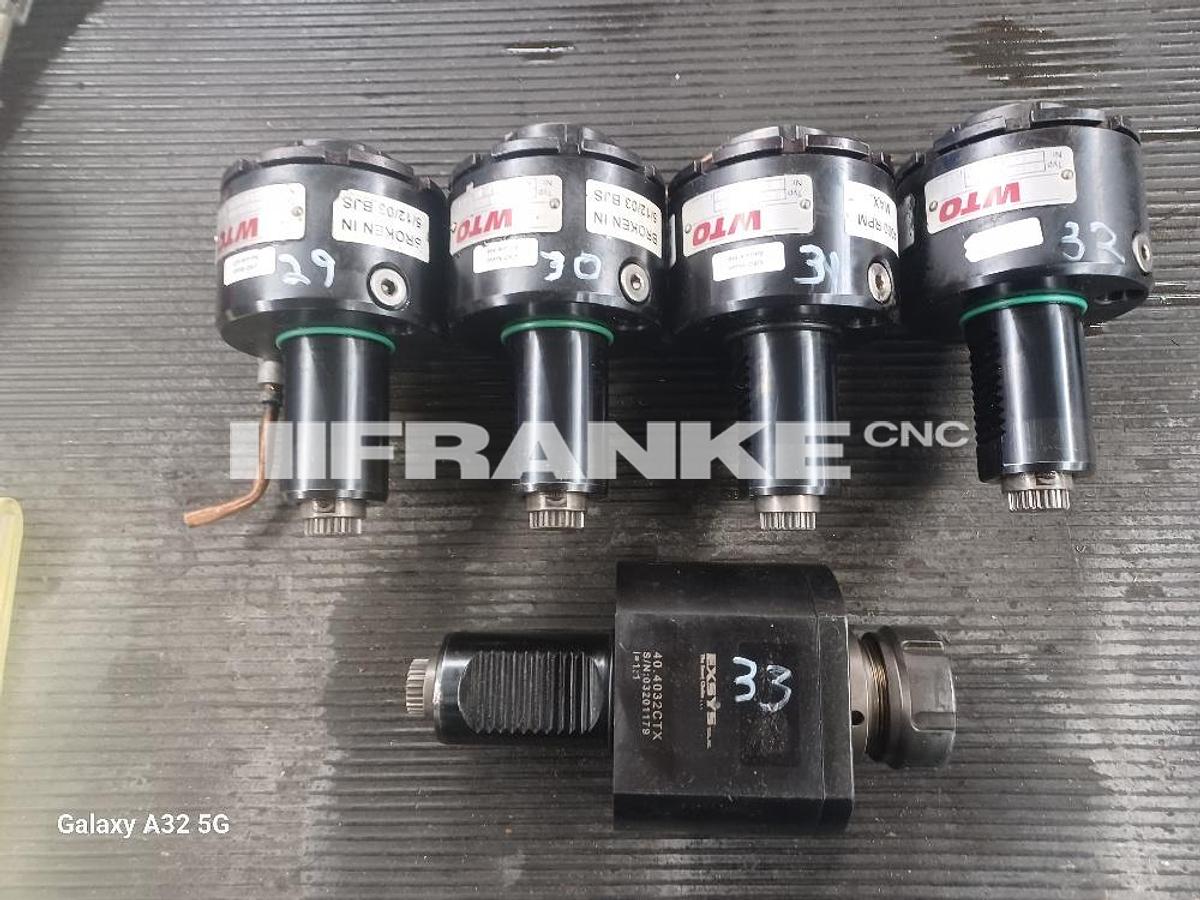

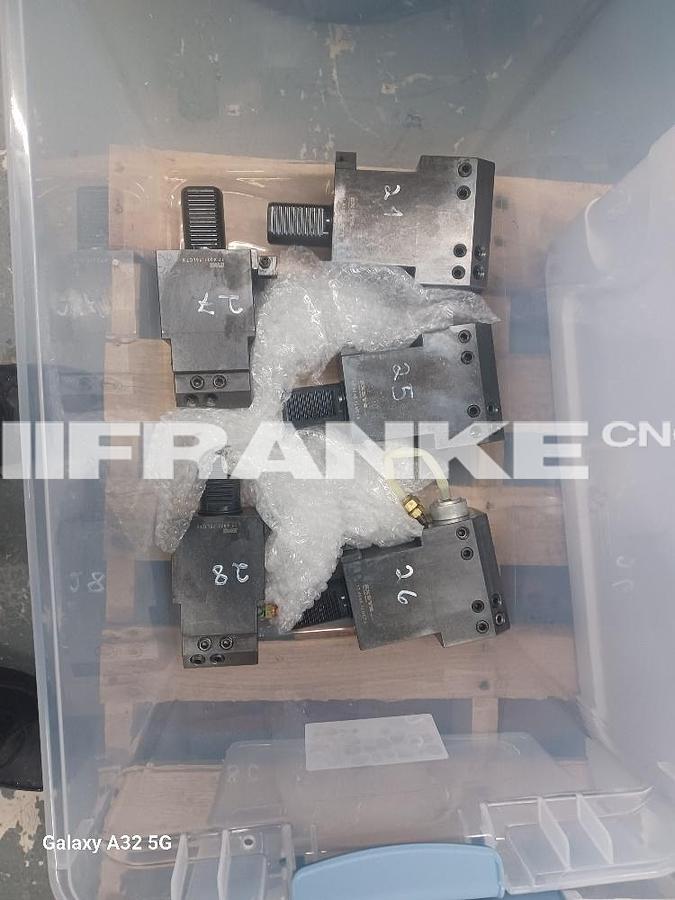

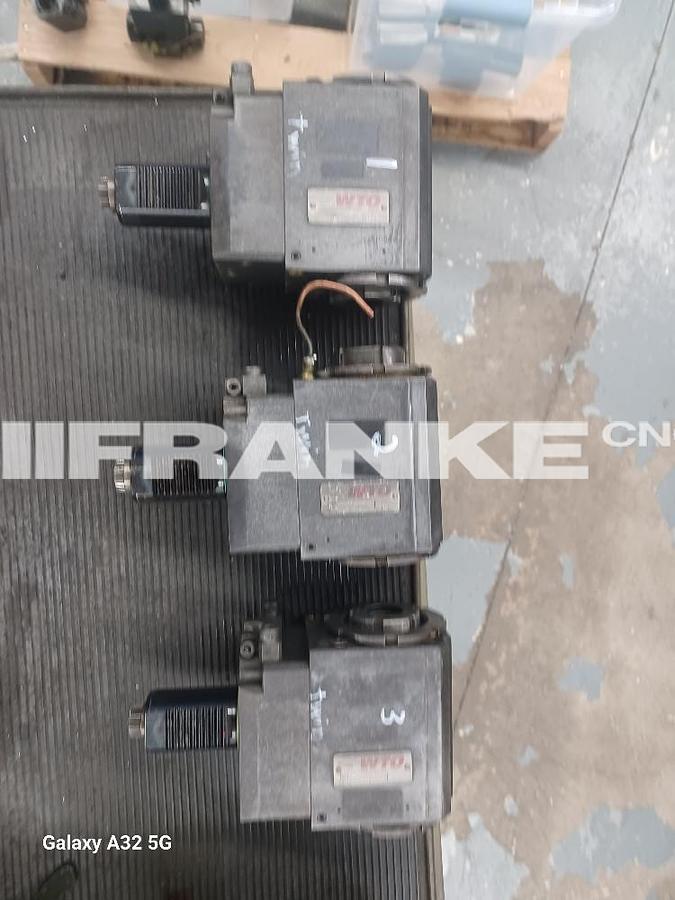

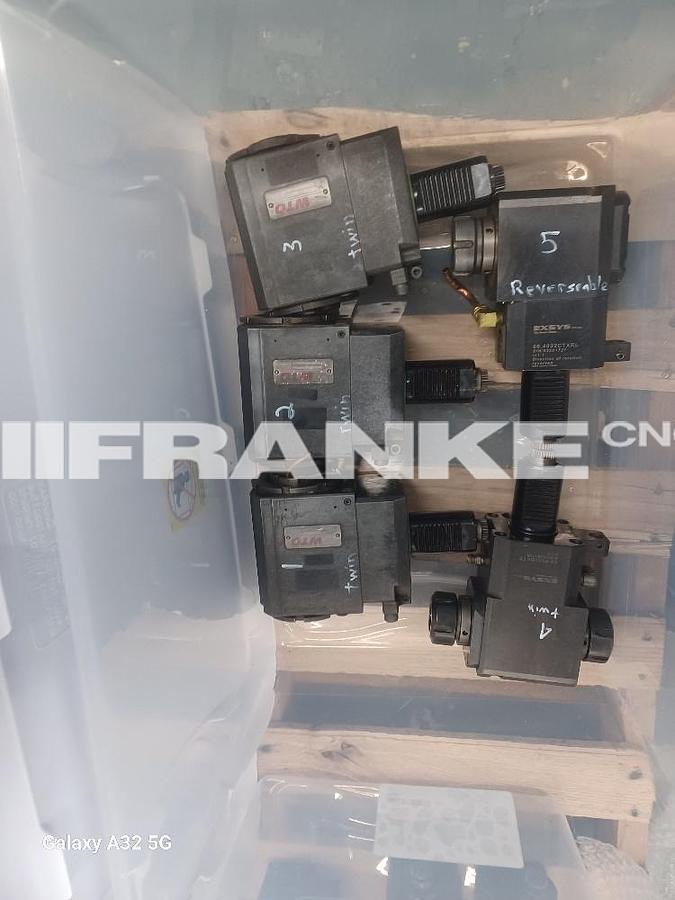

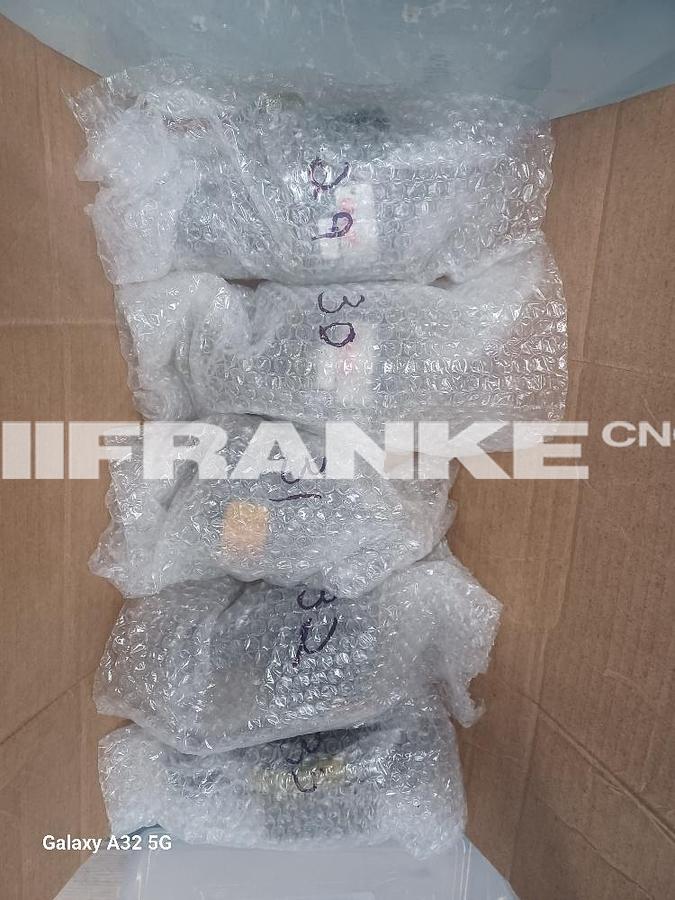

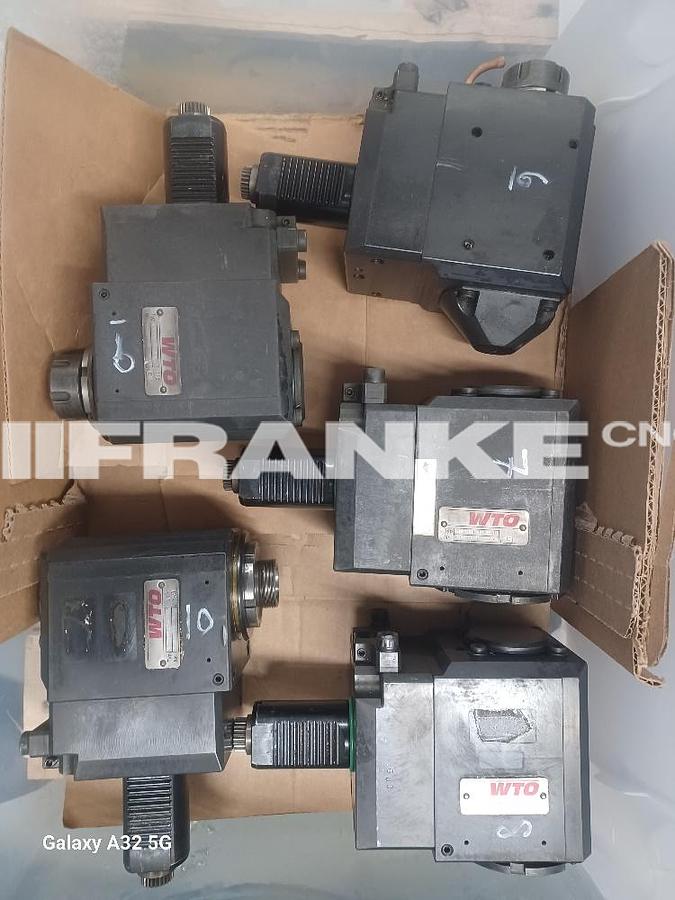

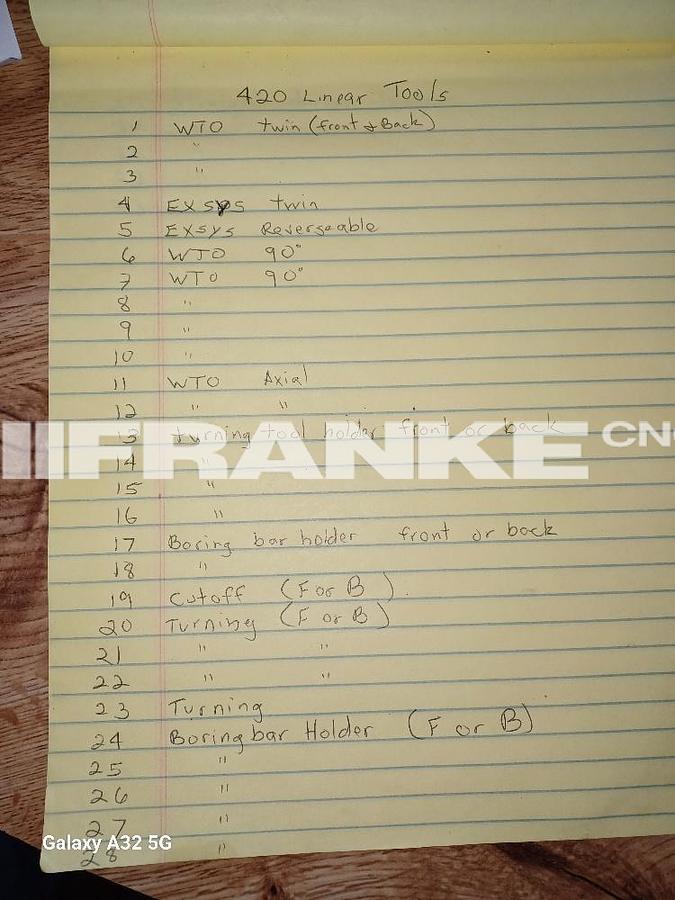

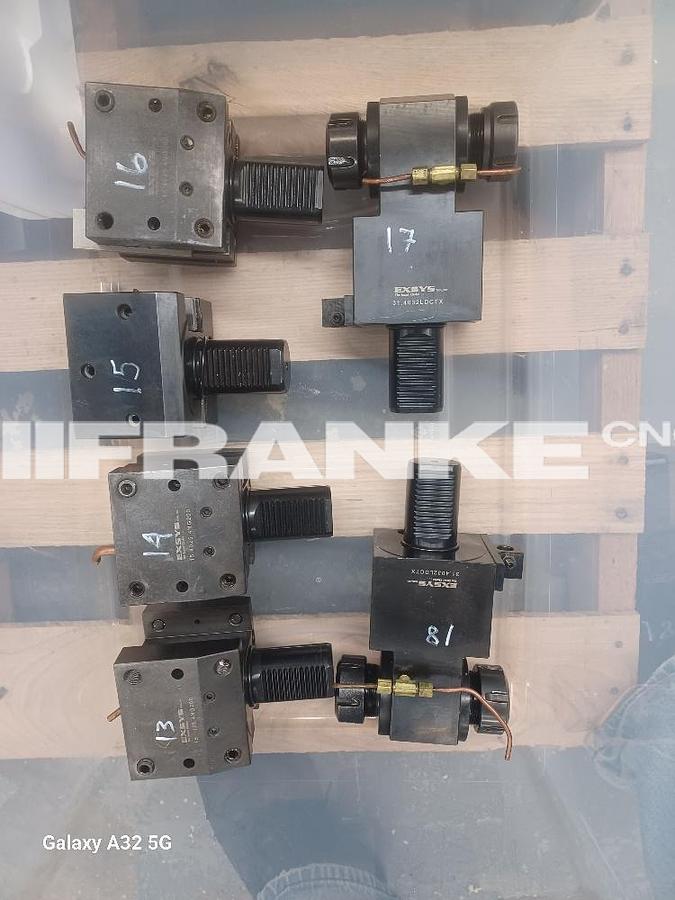

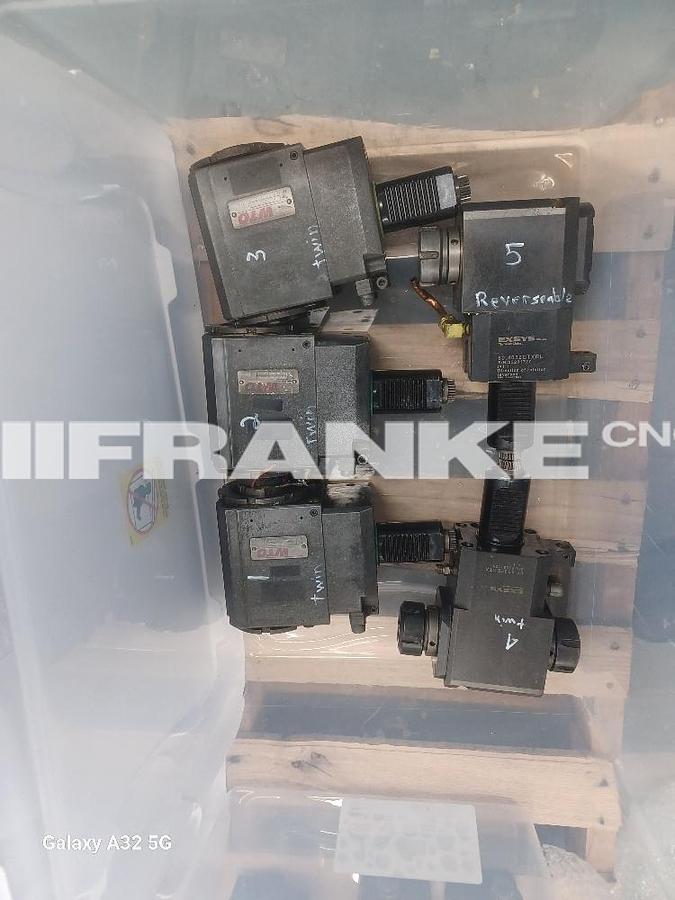

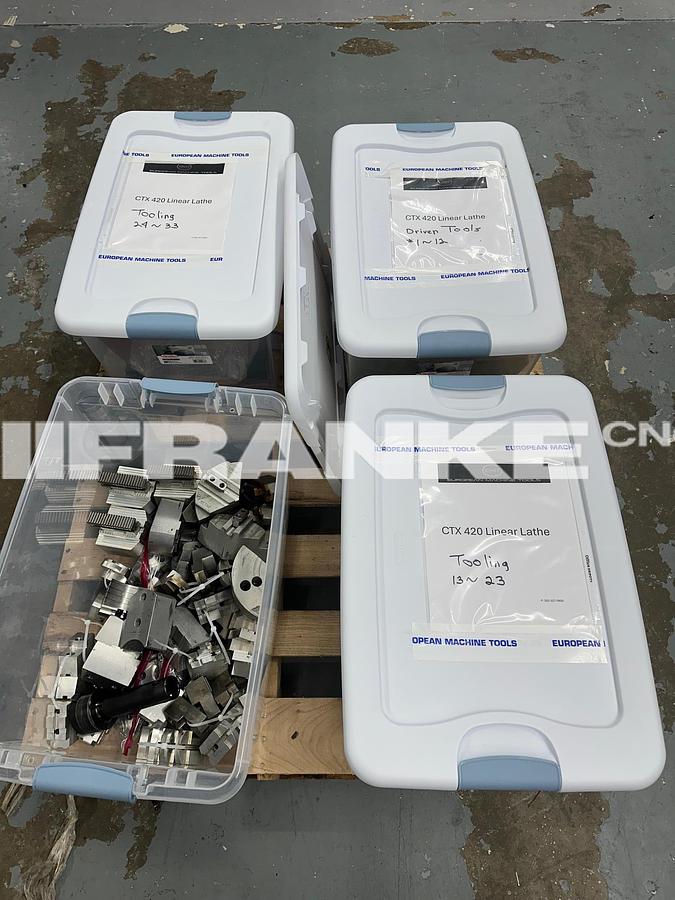

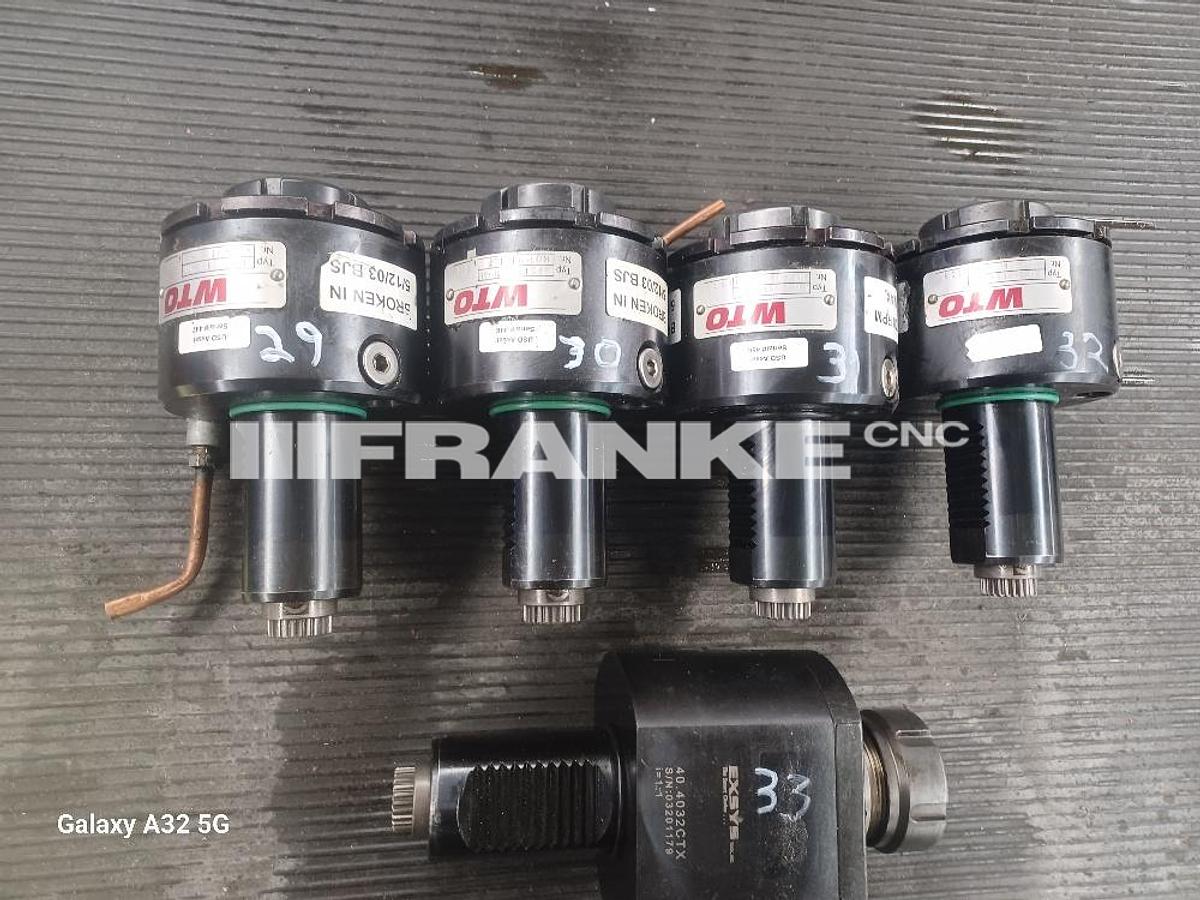

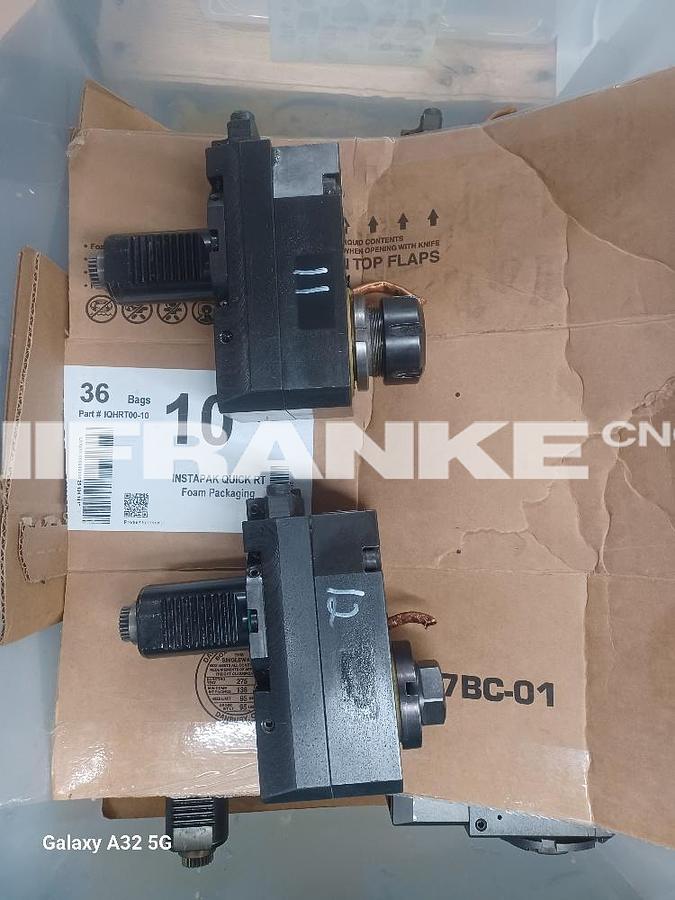

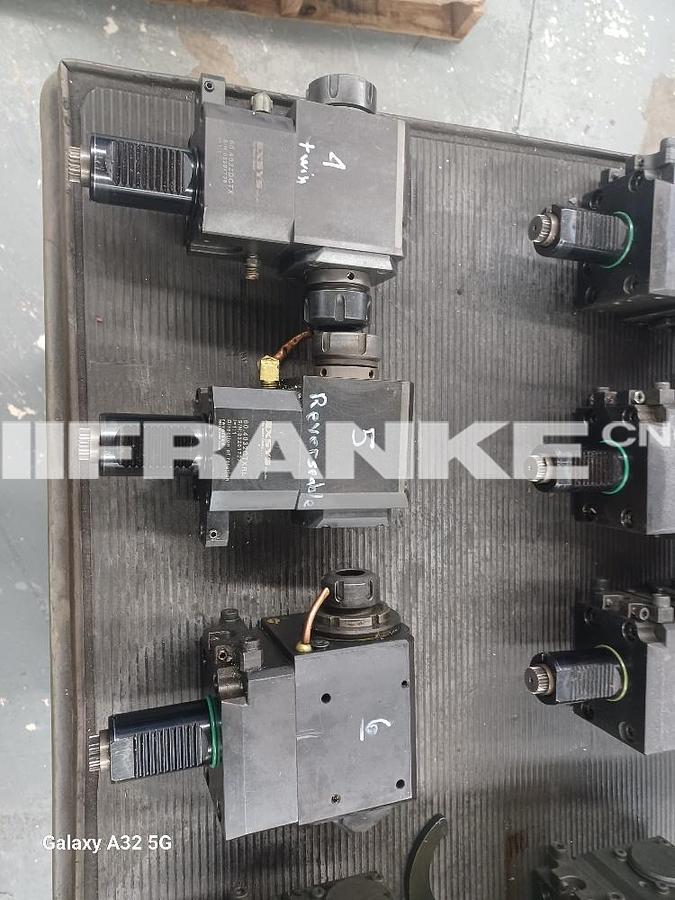

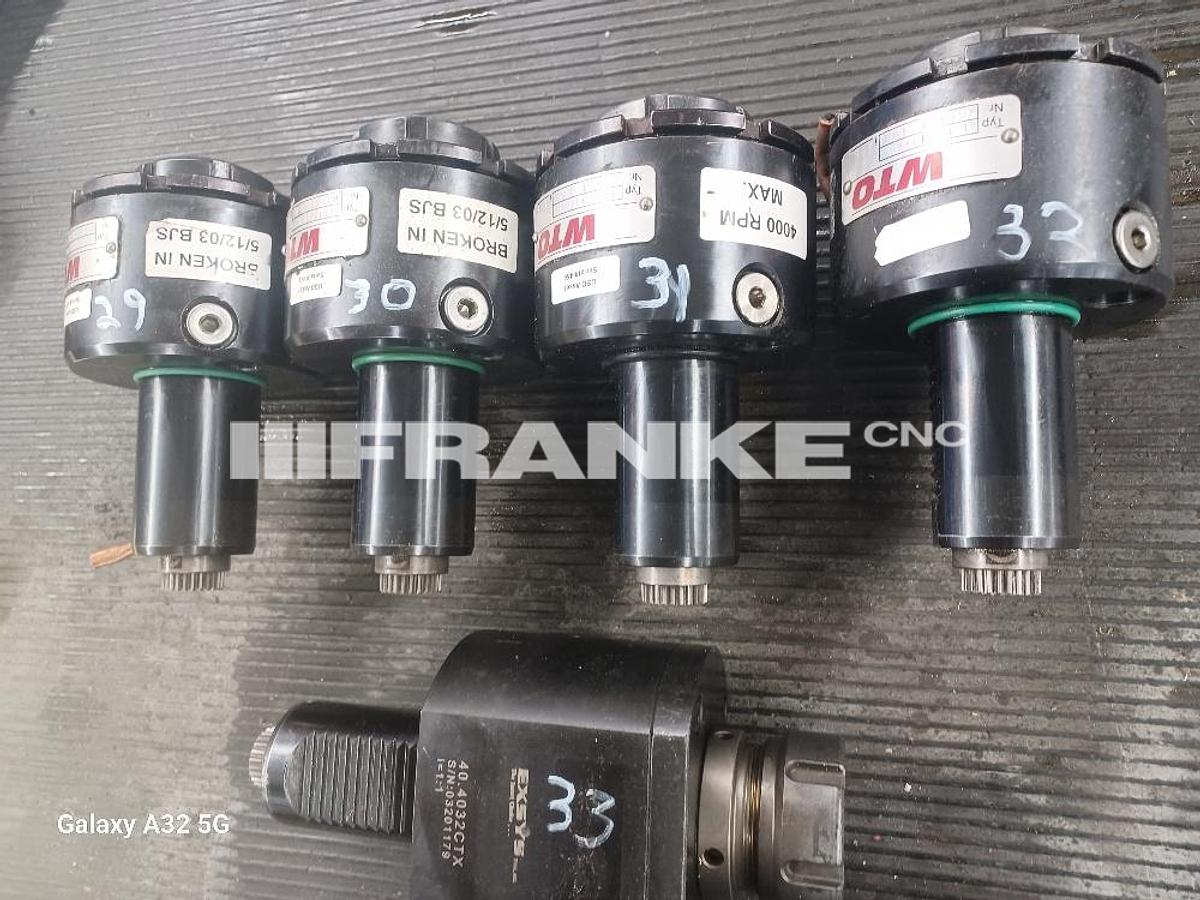

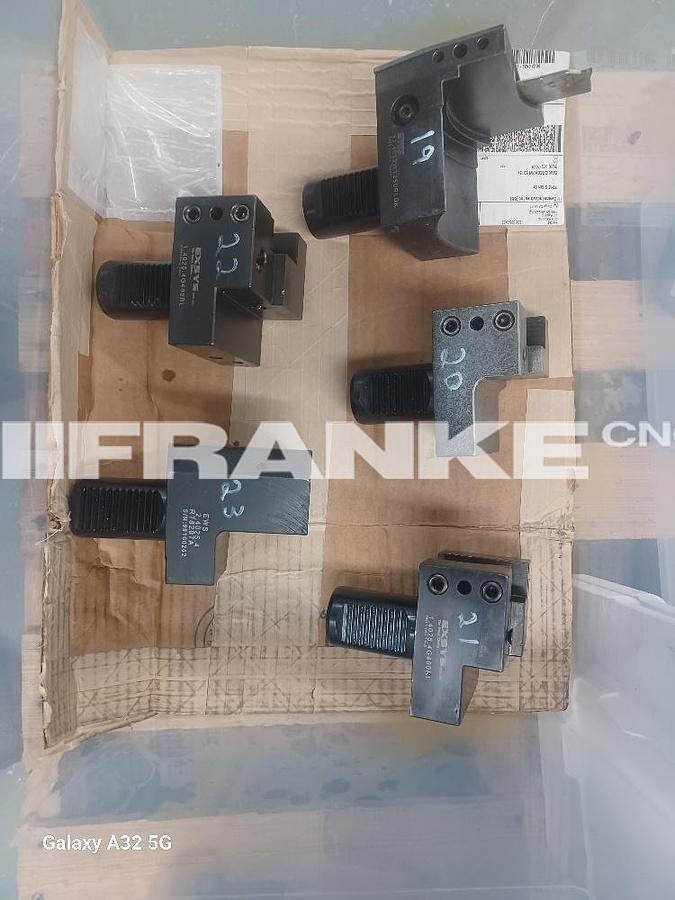

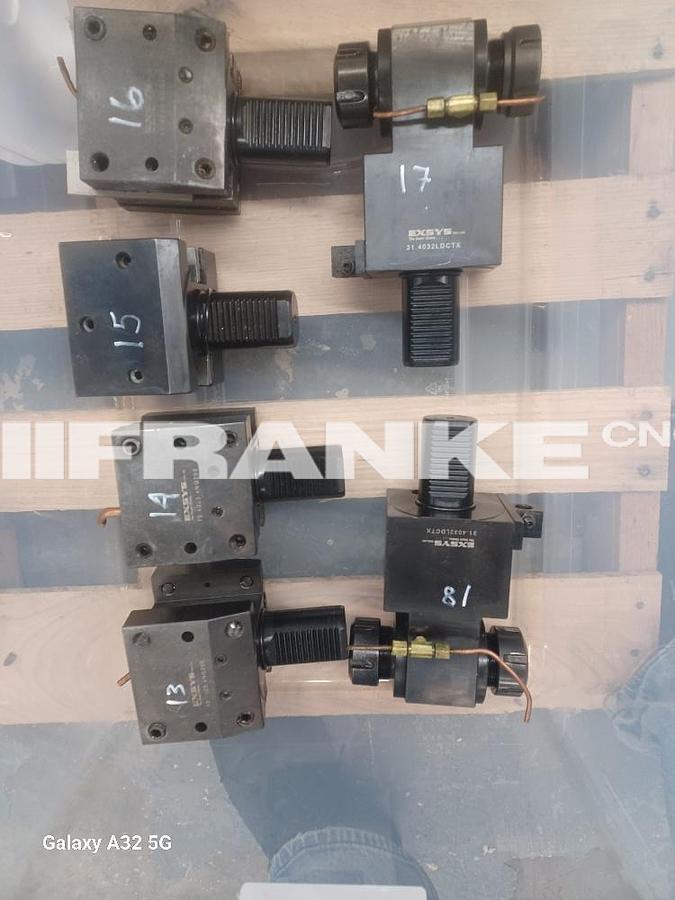

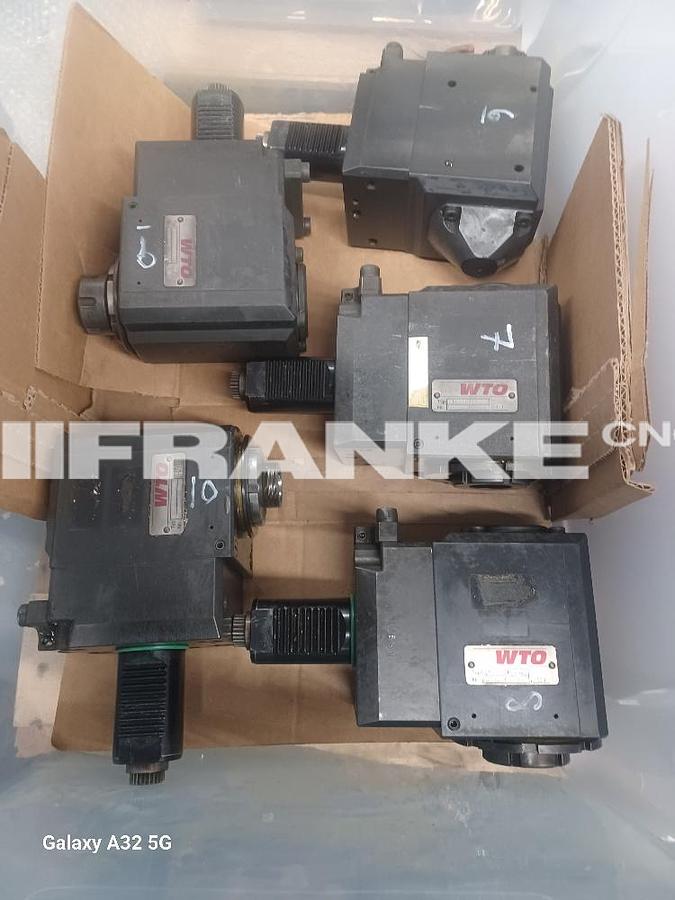

Miscellaneous live tool holders

Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.

Price quoted is FOB Purchase Point. Purchase Point is Jackson, WI.

Price quoted includes the cost of loading onto truck supplied by Buyer.

Specifications

Manufacturer	DMG MORI
Model	GILDEMEISTER CTX 420 linear
Year	2003

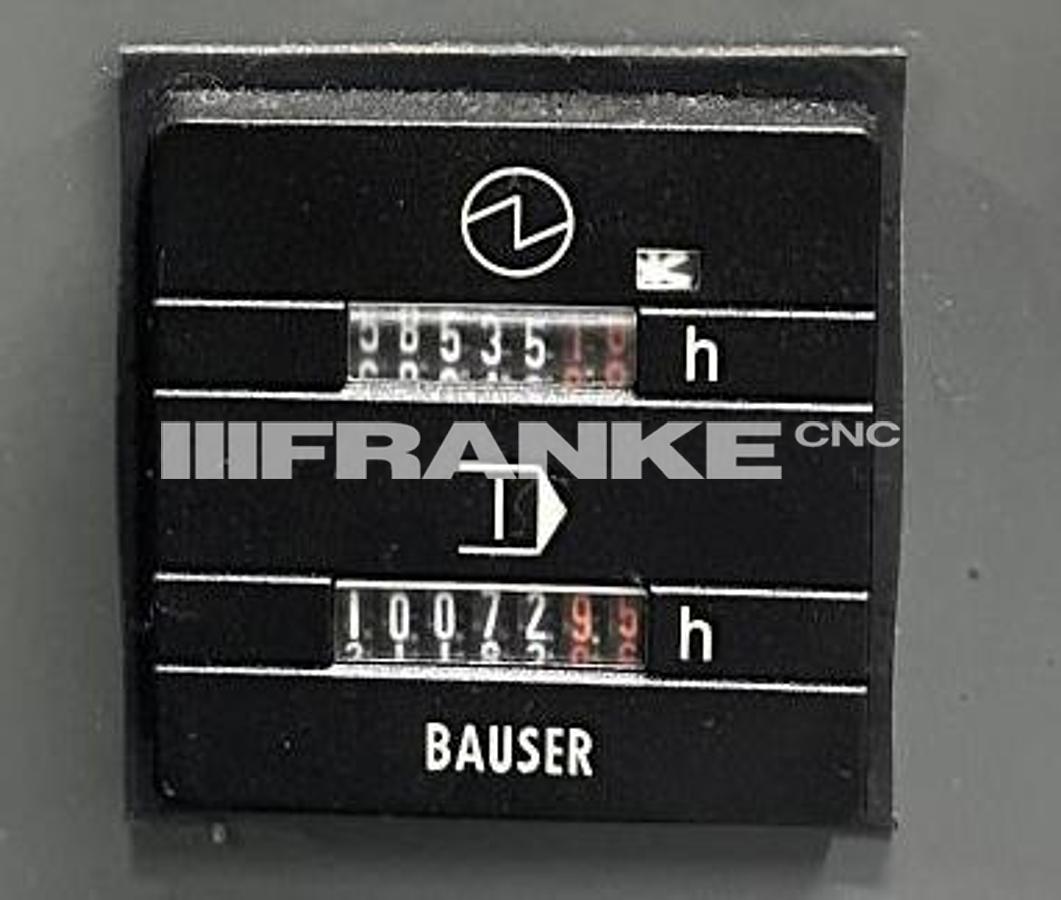

Condition	Used
Stock Number	064604

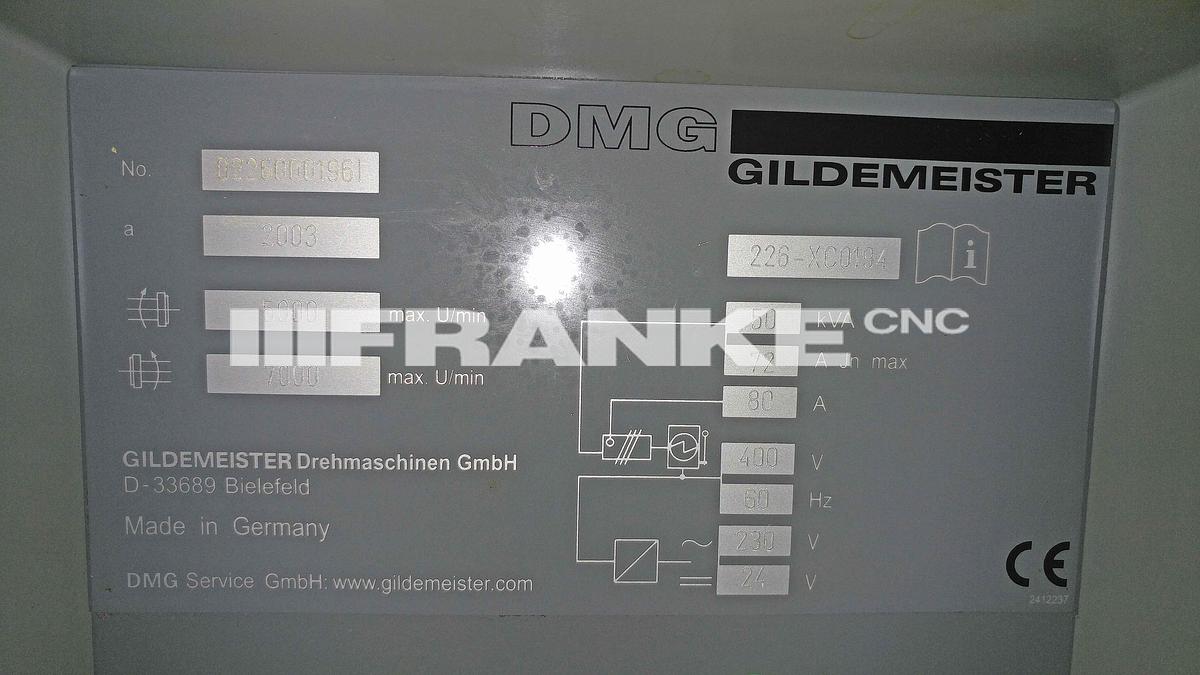

Machine was built at	GILDEMEISTER Drehmaschinen GmbH in Bielefeld, Germany

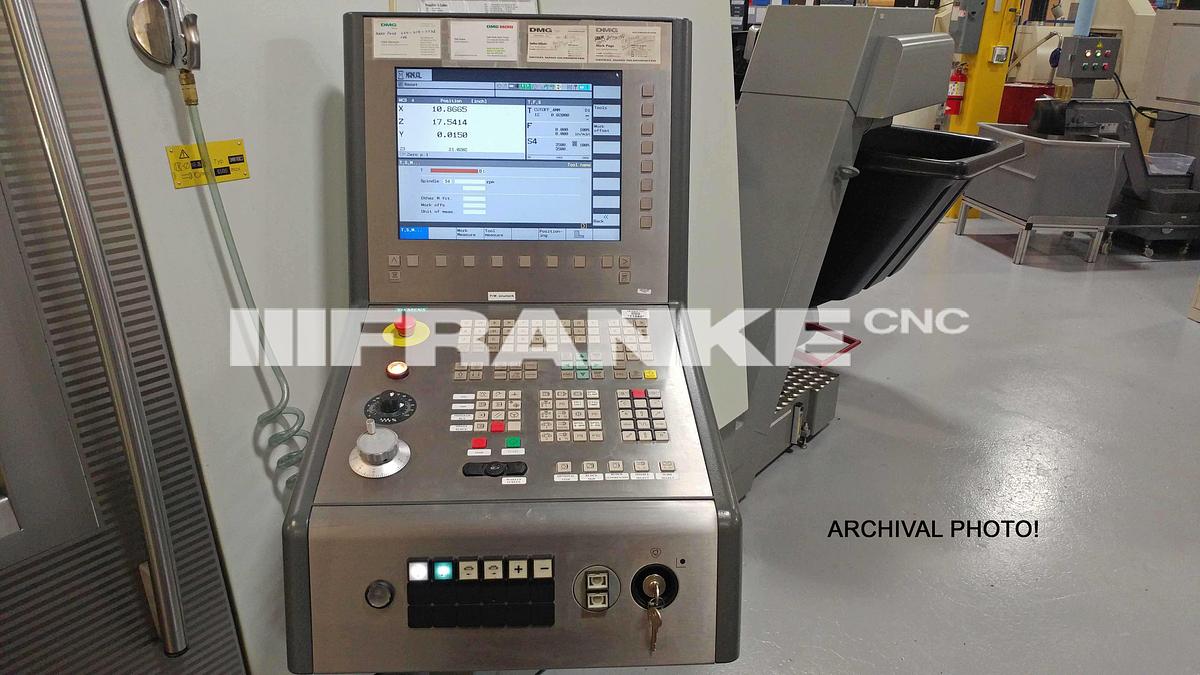

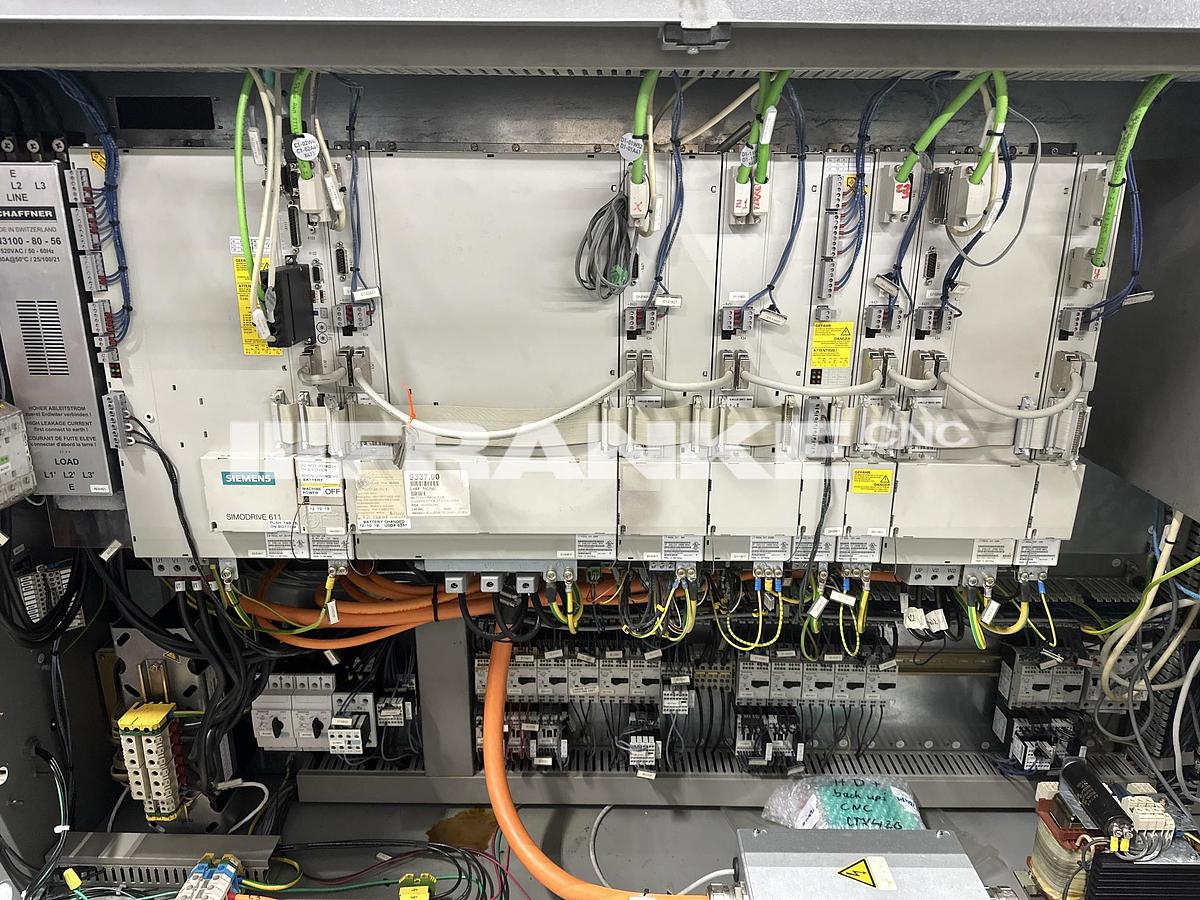

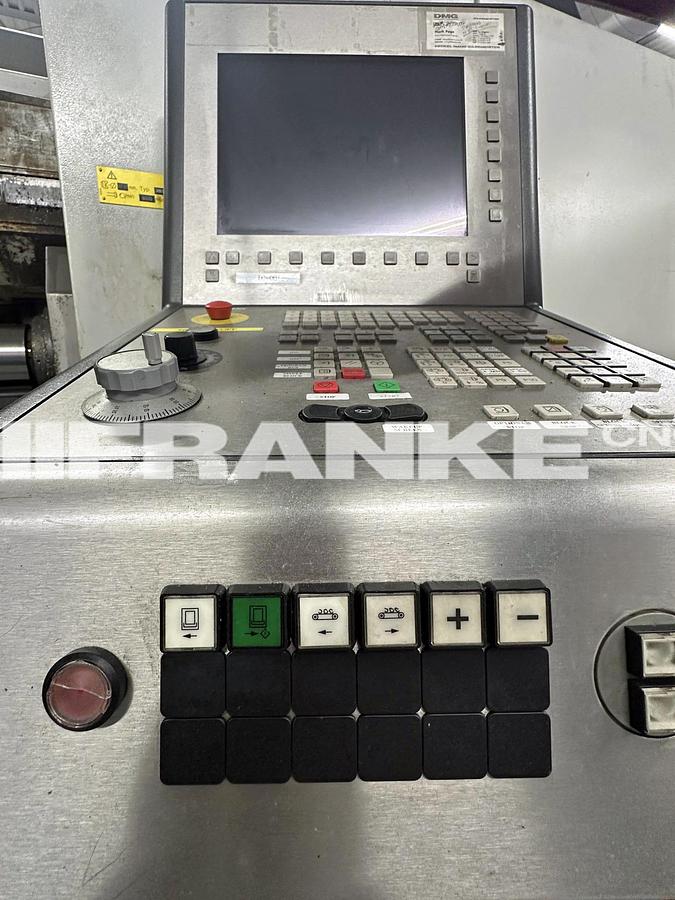

Control	SIEMENS 840D powerline
Maximum swing diameter	26.8"
Swing diameter over X guideway	22.2"
Transverse travel X	7.3"
Longitudinal travel Z	25"
Vertical travel Y-axis	Plus or Minus 1.6"
Main Spindle Type Of Drive	Integrated spindle motor
Flat flange spindle nose	170h5 mm
Bar capacity	2.6"
Spindle diameter in front bearing	4.7"
Main Spindle Chuck Size	Up to 10"
Main Spindle Drive Power, 40% DC/Continuous Duty	46.9 hp/33.5 hp (AC)
Main Spindle Maximum Torque, 40% DC/Continuous Duty	270.1 ft/lbs/197.1 ft/lbs
Main Spindle Speed Range	20-5,000 rpm
Counter Spindle Type Of Drive	Integrated Spindle Motor
Counter Spindle Flat Flange Spindle Nose	140h5 mm
Spindle Bore	2.2"
Spindle Diameter In Front Bearing	3.5"
Counter Spindle Chuck Size	Up to 6.3"
Counter Spindle Drive Power, 40% DC/Continuous Duty	42.9 hp/33.5 hp (AC)
Counter Spindle Maximum Torque, 40% DC/Continuous Duty	146 ft/lbs/116.8 ft/lbs
Counter Spindle Speed Range	20-7,000 rpm
Rapid Traverse X/Z	2,362 ipm/1,771 ipm

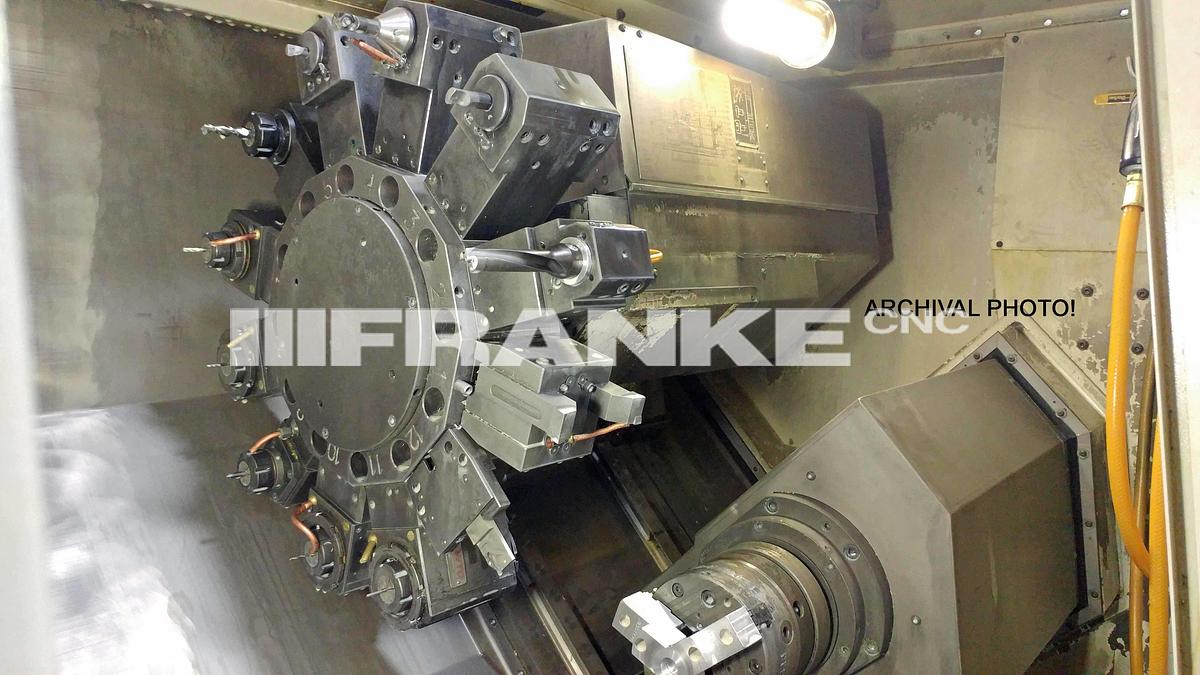

Turret Number Of Tool Stations	12
Turret Shank Diameter To DIN 69880	1.6"
Turret Number Of Driven Tool Stations	12
Turret Drive Power 40% DC Of Driven Tool Stations	17.7 hp
Turret Maximum Torque Of Driven Tool Stations	20.4 ft/lbs
Turret Maximum Speed Of Driven Tool Stations	4,500 rpm
Turret Maximum Clamp Diameter Of Driven Tools	0.8"
Hydraulic Unit Capacity	13.2 gallon (50 liter)
Hydraulic Unit Maximum Pressure	725.2 psi (50 bar)
Coolant Capacity	46.23 gallon (175 liter)
Coolant Pump Power	1.14 hp (0.85 kW)
Coolant Pump Nominal Delivery At 5 Bar	7.92 gallon/min (30 l/min)
Compressed Air Pressure, Minimum	87 psi
Machine Weight	14,300 lbs
