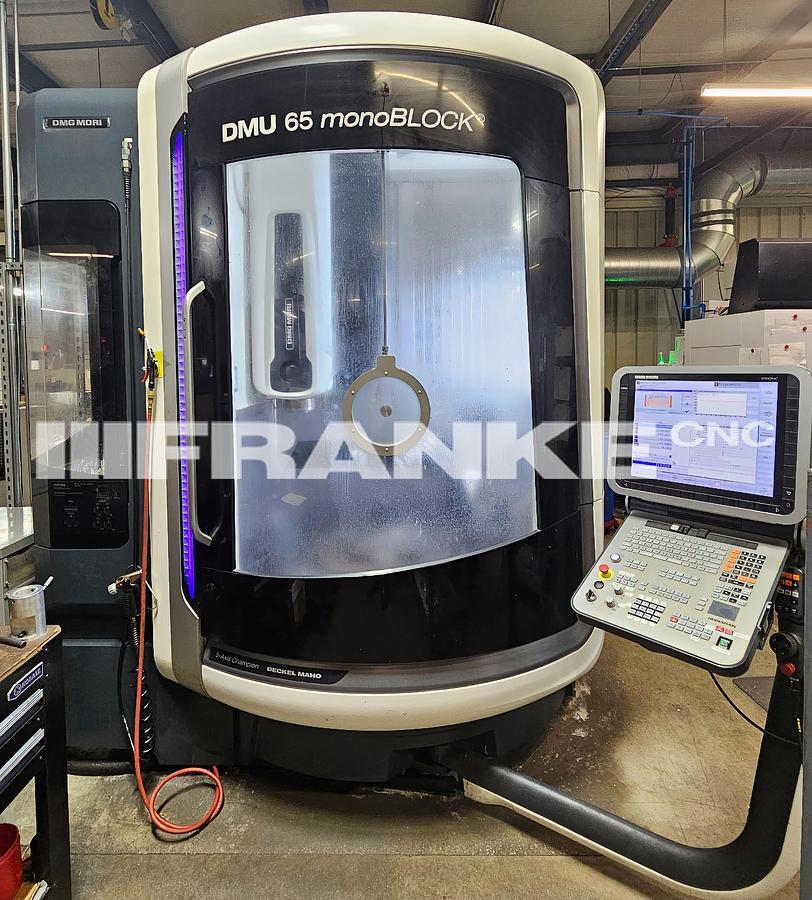

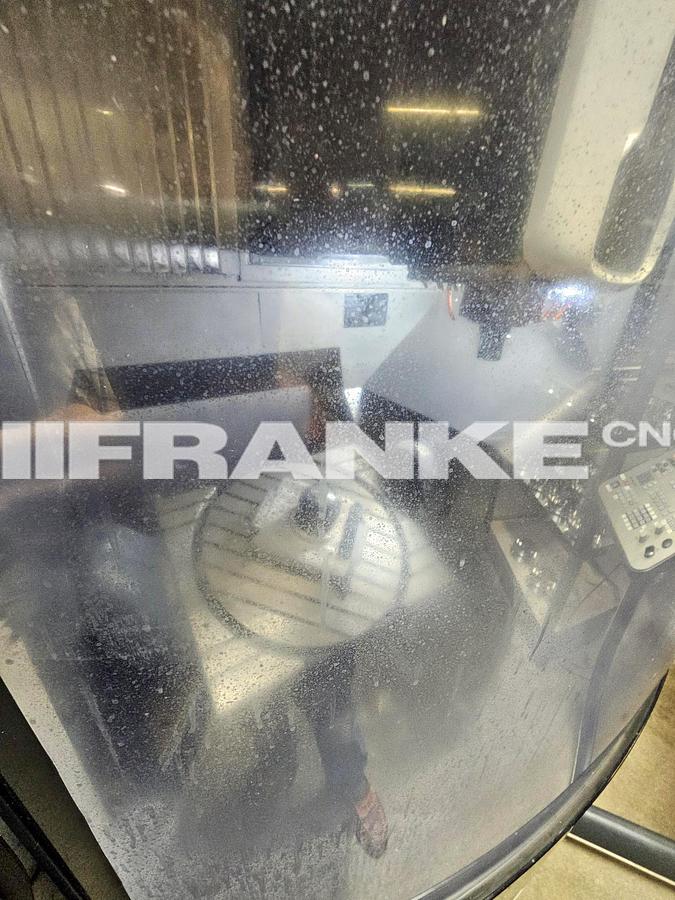

2016 DMG MORI DMU 65 monoBLOCK 5-Axis Universal Milling Machine

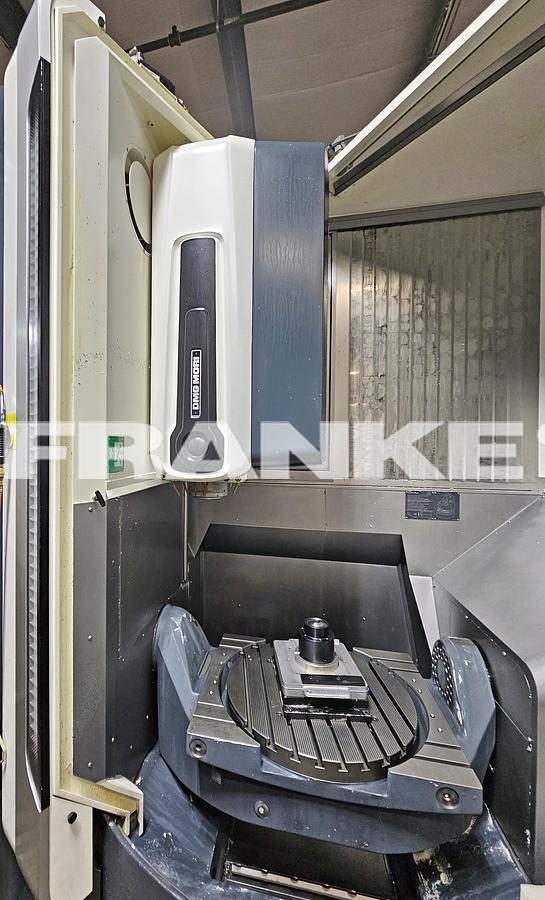

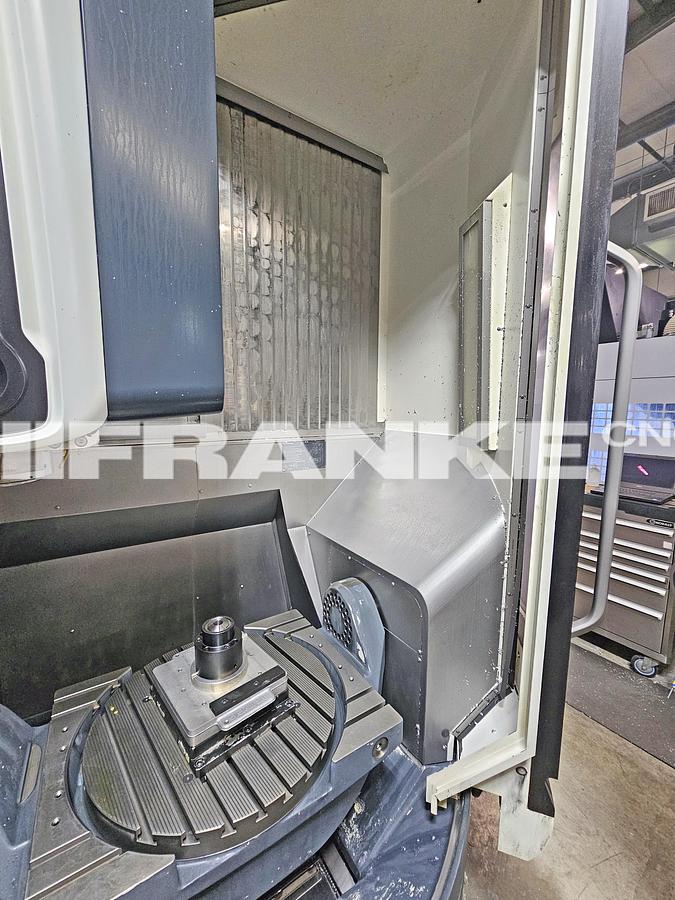

The 2016 DMG MORI DMU 65 monoBLOCK is a versatile 5-axis universal milling machine designed to meet various industrial requirements, from high-speed milling to heavy part machining in both 3- and 5-axis configurations. It features a swivelling rotary table with a 650 mm diameter that can handle workpieces up to 840 mm in diameter, 500 mm in height, and 600 kg in weight. The machine boasts an extremely compact footprint of under 8 m², allowing efficient use of space without compromising access to the working area. Equipped with a speedMASTER high-tech motor spindle, it achieves maximum rotational speeds of 20,000 rpm and provides a spindle power of 35 kW with a torque of 130 Nm. The DMU 65 monoBLOCK supports a vertical chain tool magazine that can hold up to 60 tools, enhancing productivity with a chip-to-chip time of approximately 4.9 seconds. The machine's linear axes offer rapid traverses of 40 m/min with an acceleration of 6 m/s², ensuring fast and precise operations. Constructed with a robust design, this model features stainless steel cladding to maintain long-term value and stability. The DMU 65 offers excellent machining performance attributed to the quality build by DECKEL MAHO. Its control system utilizes DMG MORI's ERGOline with a 19" monitor and 3D control, supported by the renowned HEIDENHAIN functionality, ensuring user-friendly operation and maximum process efficiency.

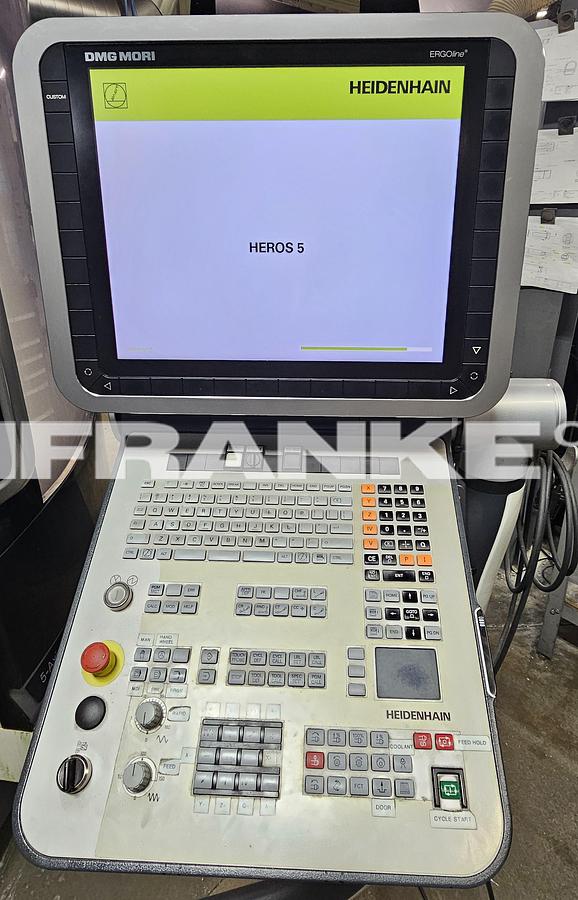

DMG MORI ERGOline Control with 19" monitor and 3D control system

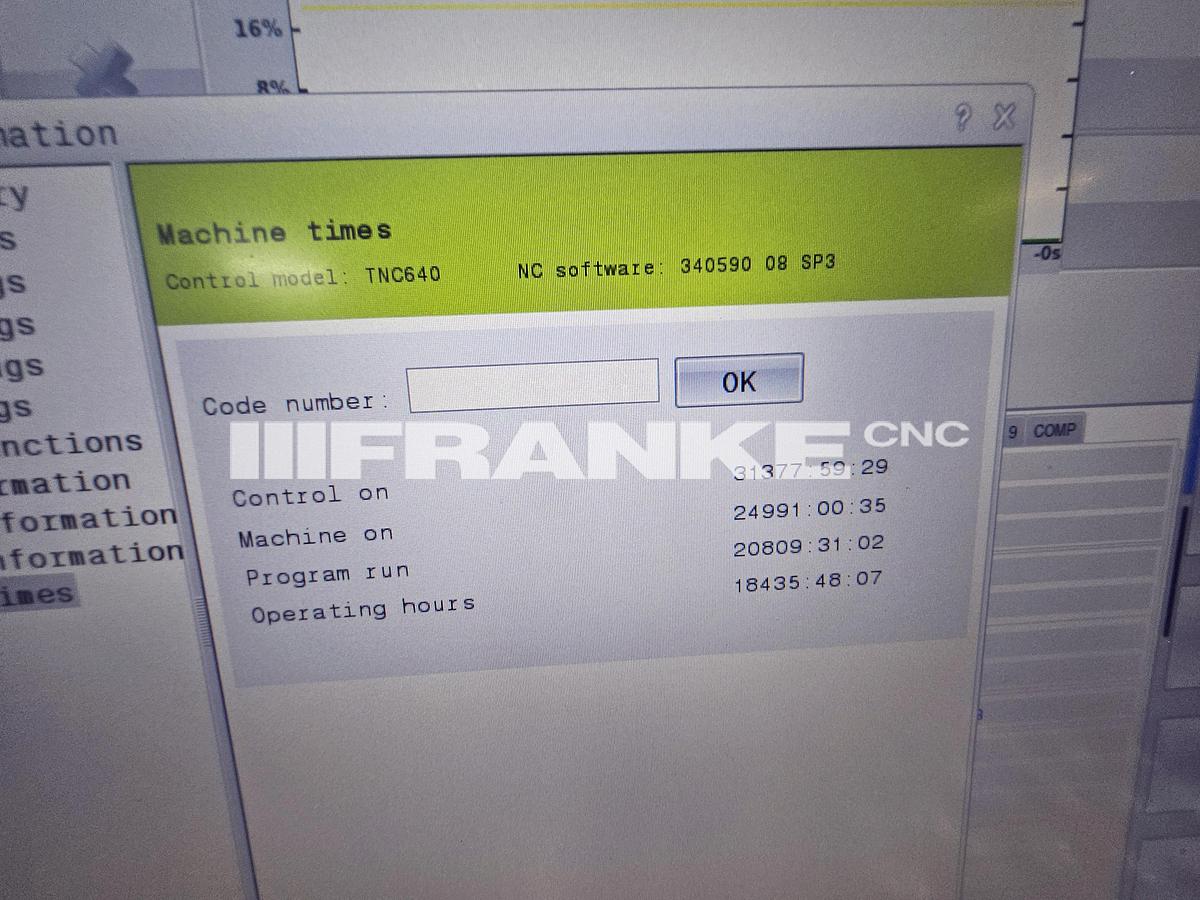

3D Control HEIDENHAIN TNC 640

Options for HEIDENHAIN control

Electronic handwheel

Safety package for power failure

Spindle

speedMASTER motor spindle 20,000 rpm HSK-A63

Tool Magazine

Chain vertical, 60 pockets HSK-A63

Cooling Supply/Chip Removal

Production Package 40 bar/23 l/min, 600 l tank

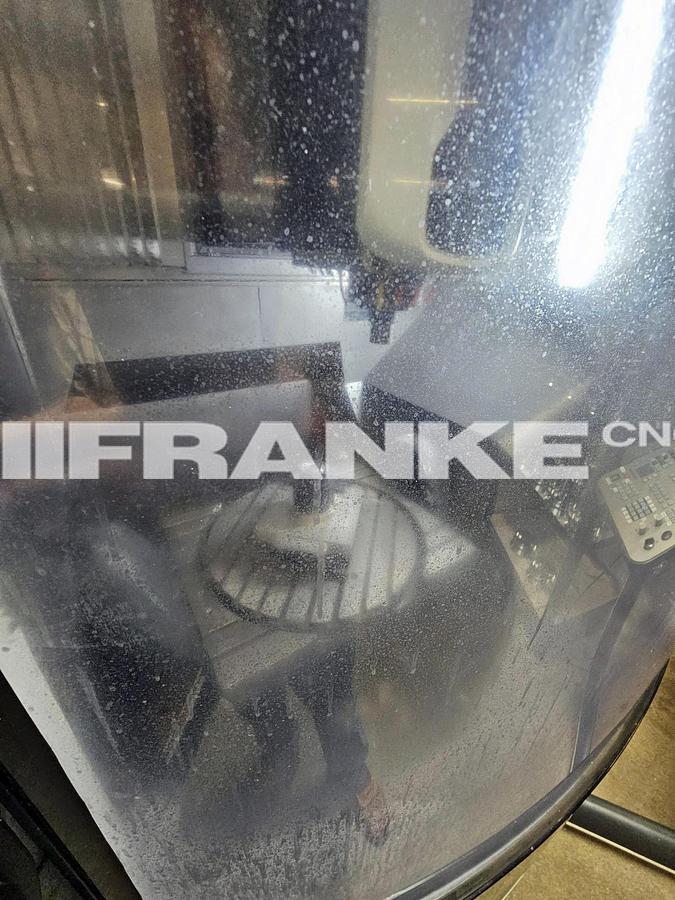

Rotating clear-view window

Coolant ring jet

Spray pistol with pump 2 bar/40 l/min

Oil and emulsion mist separator

Measuring/Monitoring

Infrared measuring probe Renishaw

Tool measuring in machining area Blum Laser

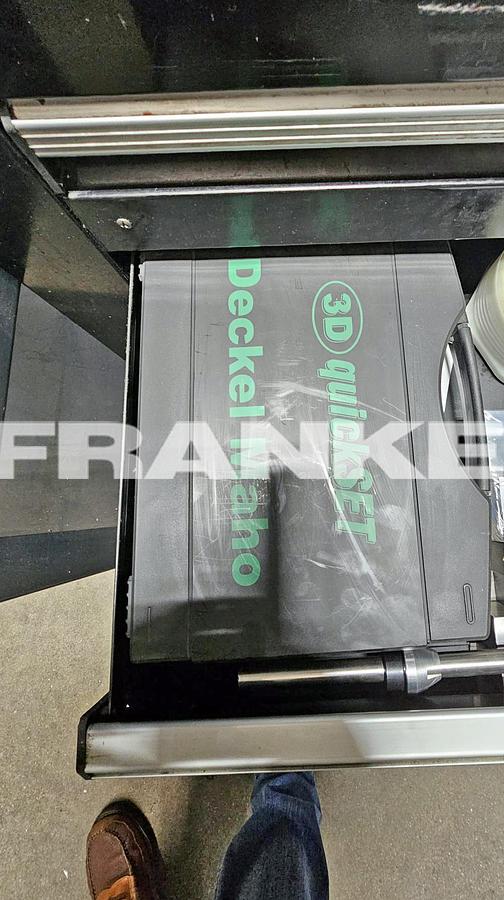

3D quickSET

MPC Machine Protection Control

General Options

Machine version 60 Hz

Machine version Inch

CSA Specification
