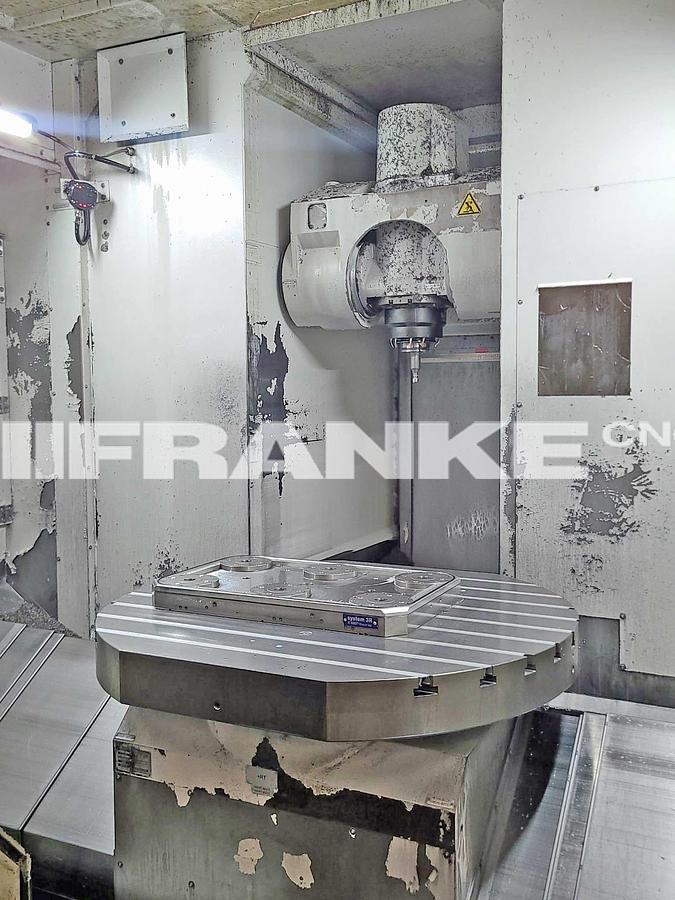

2015/16 MIKRON HPM 1350U 5-Axis with 170 ATC and Automation Prep !
2015/16 MIKRON HPM 1350U 5-Axis with 170 ATC and Automation Prep !
Description
EQUIPPED WITH:
Chip conveyor front extract with CTS
Tool measuring with laser integrated
Rotating window in the front door
Oil mist extraction
3D-touch probe RMP 60
APS Extended (Advanced Processing System Extended)
Kinematics Option-Touch probe cycles for inspecting and optimizing the machine accuracy
Calibration ball 30 mm with base plate
Band Filter Unit 950 liter for CTS
CTS 18-80 bar programmable coolant thru the spindle
Balluff Tool ID System
Delphin Base Plate 6 Chucks HHPA
Rotary Union 2 x Hydraulic, 1 x Air
Robot Interface on left side of machine, automated door & electrical interface
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Specifications
| Manufacturer | MIKRON MILL |
| Model | HPM 1350U |
| Year | 2015 |
| Condition | Used |
| Stock Number | 064581 |
| Total weight | 27,778 lbs |
| X axis travel | 1350 mm (53.149") |
| Y axis travel | 1150 mm (45.275") |
| Z axis travel (vertical) | 700 mm (27.559") |
| Z axis travel (horizontal) | 895 mm (35.236") |
| A-Axis Swivel Range HSK 100 | 126 degrees (from vertical +16 degrees to -110 degrees) |
| Spindle maximum rotating speed | 10,000 rpm |
| Spindle Taper | HSK 100 |
| Spindle output at 40% ED | 34 kW (45.6 hp) |
| Spindle torque at 40% ED | 324 Nm (239 ft/lbs) |
| Max. feed speed X,Y,Z | 32 m/min (1259.84 IPM) |
| Max. acceleration X,Y,Z | 0.4 g |

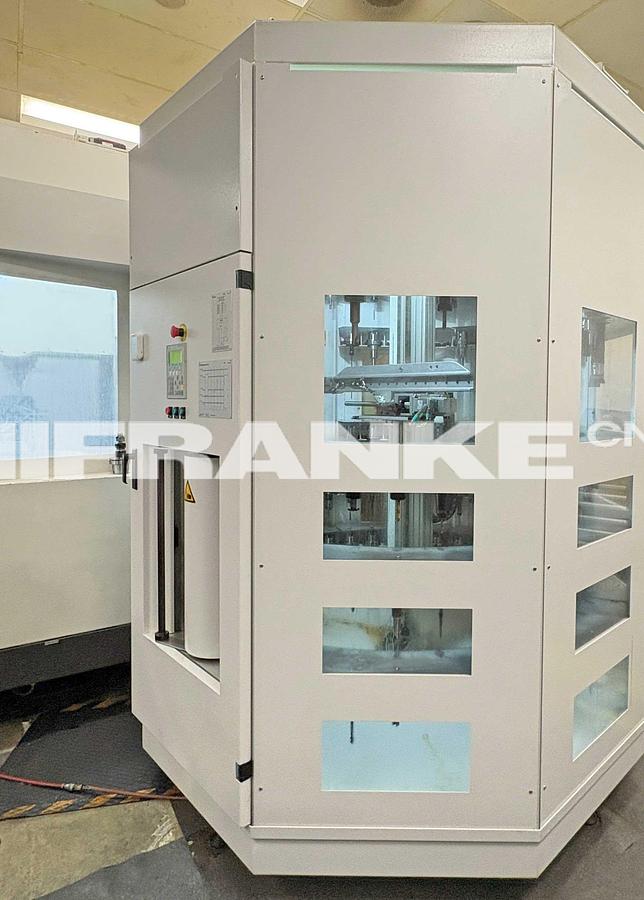

| Tool changer | 170 position tool tower |
| Table surface area | 1100 mm (43.3") diameter |
| Maximum table load (centrically) | 1600 kg (3527.39 lbs) |

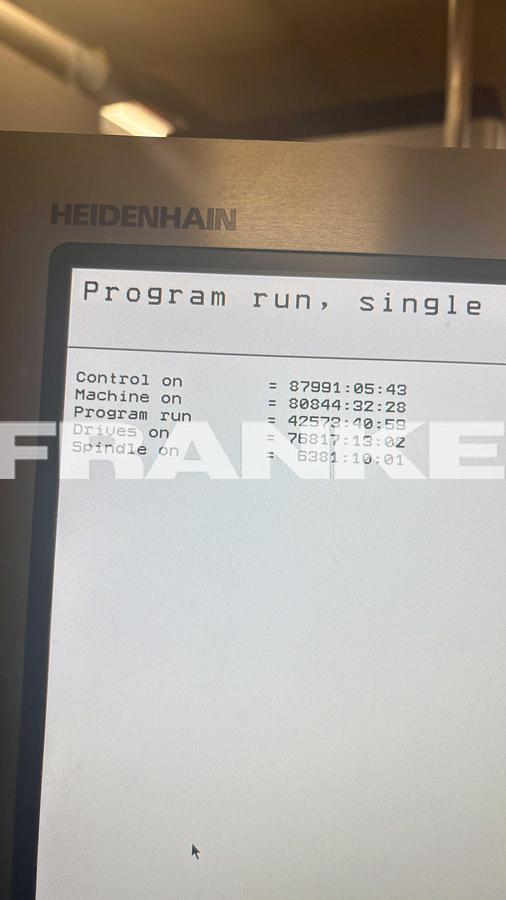

| Control | HEIDENHAIN iTNC 530 |
| Machine base | Casting |
