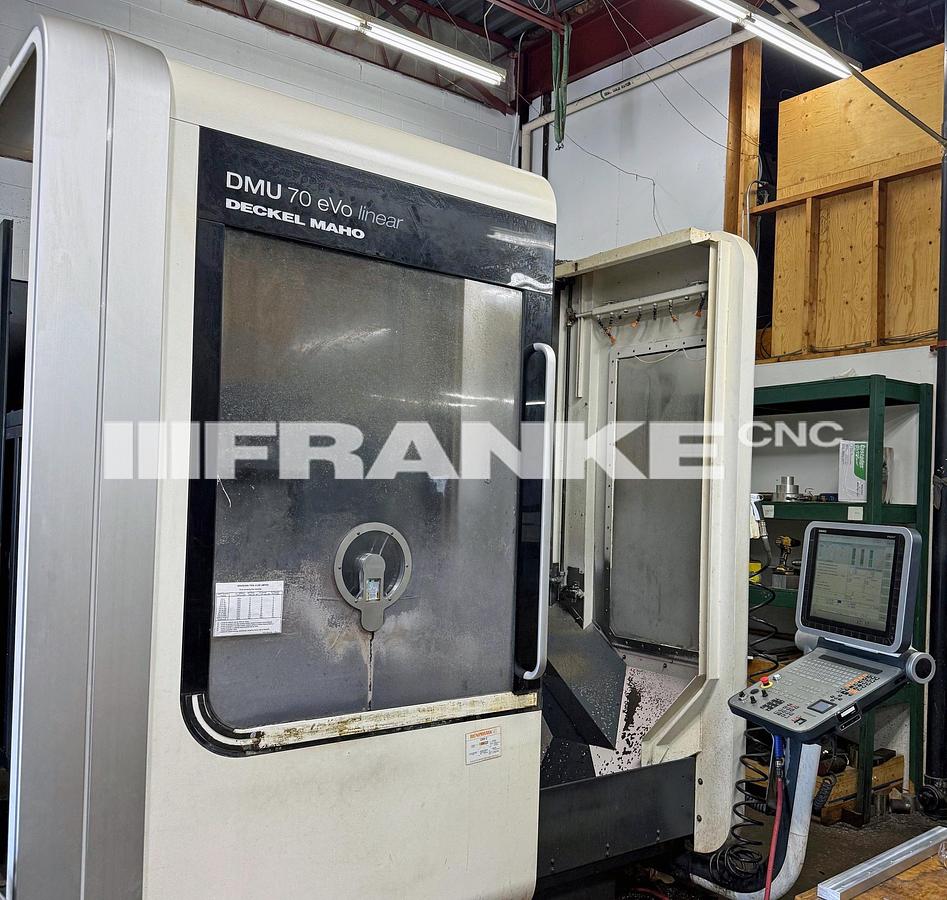

2009 DMG MORI DECKEL MAHO DMU 70 eVo linear 5-Axis VMC
2009 DMG MORI DECKEL MAHO DMU 70 eVo linear 5-Axis VMC
Description
EQUIPPED WITH:

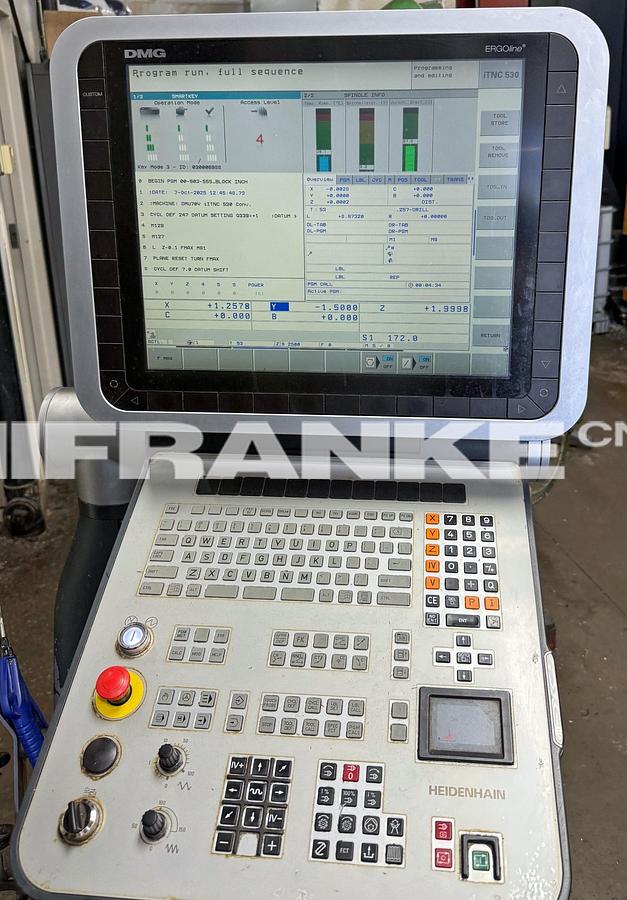

Heidenhain iTNC 530 ERGOline control with a 19" screen
Electronic hand wheel for control
BLUM laser tool measuring
Rinsing pistol
580 PSI CTS (Coolant thru the spindle) with paper band micro filter
Chip conveyor
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specifications
| Manufacturer | DMG MORI |
| Model | DECKEL MAHO DMU 70 eVo linear |
| Year | 2009 |
| Condition | Used |
| Stock Number | 064563 |
| Traverse path X (longitudinal) | 29.5" |
| Traverse path Y (across) | 23.6" |
| Traverse path Z (vertical) | 20.5" |
| AC motor spindle (40/100% DC) | 46.9/33.5 hp. |
| Main spindle drive rotational speeds up to | 18,000 rpm. |
| Spindle torque (40/100% DC) | 95.9/64.2 ft./lbs. |
| Work spindle, tool fitting | CAT40 |
| Feed drives rapid traverse linear axes X / Y / Z | 3,149.6/1,968.5/1,968.5 ipm. |
| Feed drives feed force | 1,348.9/1,573.7/1,573.7 lbf. |
| Tool magazine pockets | 60 (30 was standard) |
| Tool magazine maximum tool length | 11.8" |
| Tool magazine maximum tool diameter | 3.1"/5.1" |
| Chip-to-chip time | 5.5 seconds |
| NC swivel rotary table clamping surface | 27.6" diameter x 19.7" |
| Center hole | 1.2" diameter H6 |
| Number/Distance between T-slots | 0.3"/2.5"-0.6 H7 |
| Swivel range B-axis | 0/+102 degrees |
| Rotation range C-axis | 360 degrees |
| Rapid traverse rotary axis B/C | 40/50 rpm. |
| Table load | 771.6 lbs. |
