2004 MITSUBISHI EA12V

2004 MITSUBISHI EA12V

Description

Overview: The EA12V sinker EDM machine is one of the most accurate and productive machines on the market. Featuring the new M700 series control with a touchscreen, these machines are even more user-friendly than previous models. One of the most attractive features of the EA12V is the space-saving design. Compared with conventional models, required floor space has been reduced by nearly 20 percent. Installation space is also greatly reduced and the maintenance area has been simplified.



EA SERIES Features:

Fuzzy pro emulates an experienced operator optimizing the burn process from rough to finish orbit.

High-speed jump creates the ability to do most burns with no flush.

Saddle-less column movement system uses a special combined linear motion way system.

New digital AC Smart Servo System improves resolution to 0.05 µm (2 millionths inch) speeding response time.

Fine Pulse 2 (FP2) function which operates in a pumping action to keep the gap clean, improves finish and reduces the power consumed.

SC circuit reduces electrode wear by enacting pulse discharge during high-precision machining.

PS circuit provides accurate finish by controlling surface pulse discharge.





Specifications:

Machining Stroke ( X x Y x Z )                             15.7" x 11.8" x 11.8"

Machining Movement (C)                                      360 Degrees

Chuck to Table Clearence                                     6.0" x 17.8"

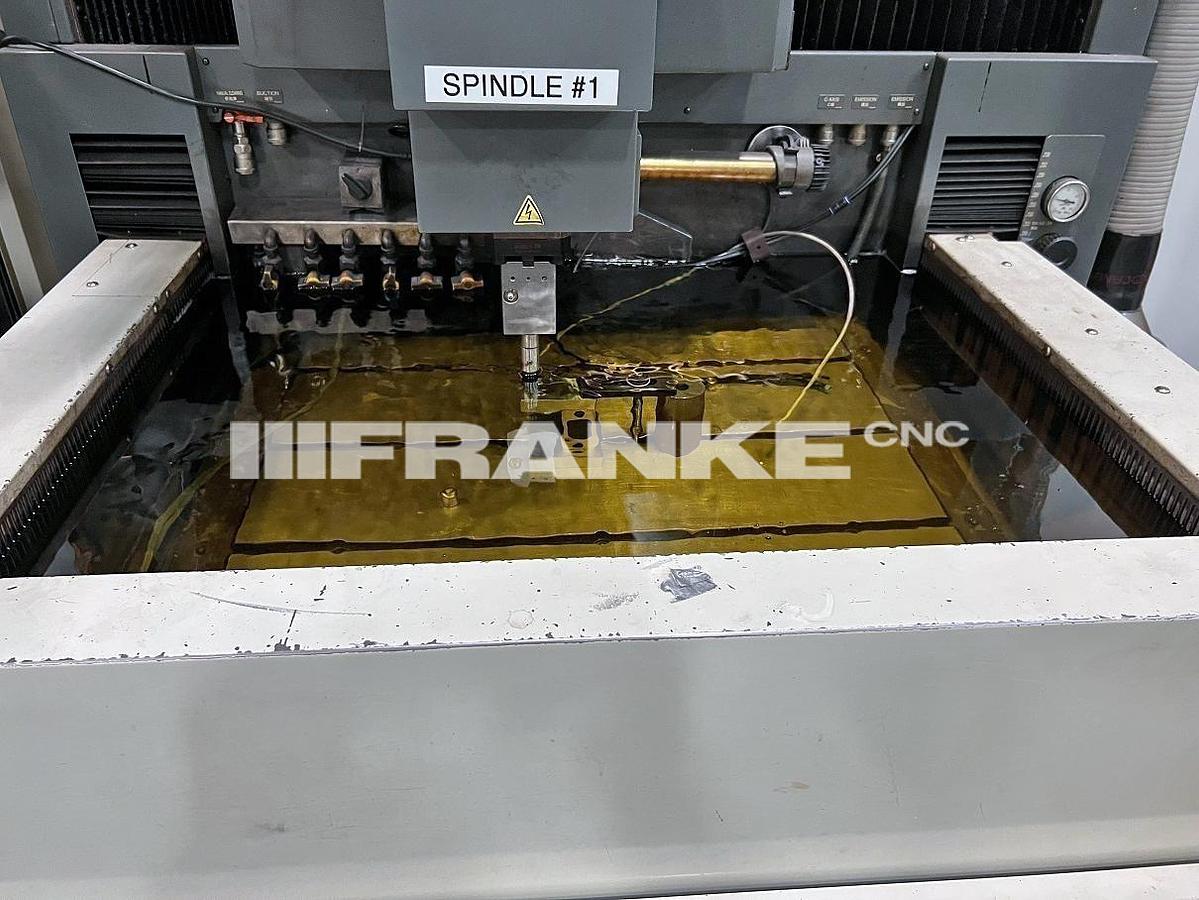

Worktank Size                                                       37" x 24" x 14"

Table Size                                                              28" x 20"

Tank Type                                                              3-Sided Drop Tank

Maximum Workpiece Dimensions                          33.5" x 25.2" x 9.8"

Maximum Workpiece Weight                                1,540 lbs

Maximum Current                                                   80 Amps

Maximum Electrode Weight                                  110 lbs/22 lbs with C-Axis

Dielectric Capacity                                                 106 Gal

Machine Shipping Dimensions                                84" x 56" x 94"H

Machine Base Only Weight                                    7,480 lbs

Power Supply Shipping Dimensions                    22" x 46" x 74"H

Machine Total Weight                                            9,365 lbs





Equipped With:

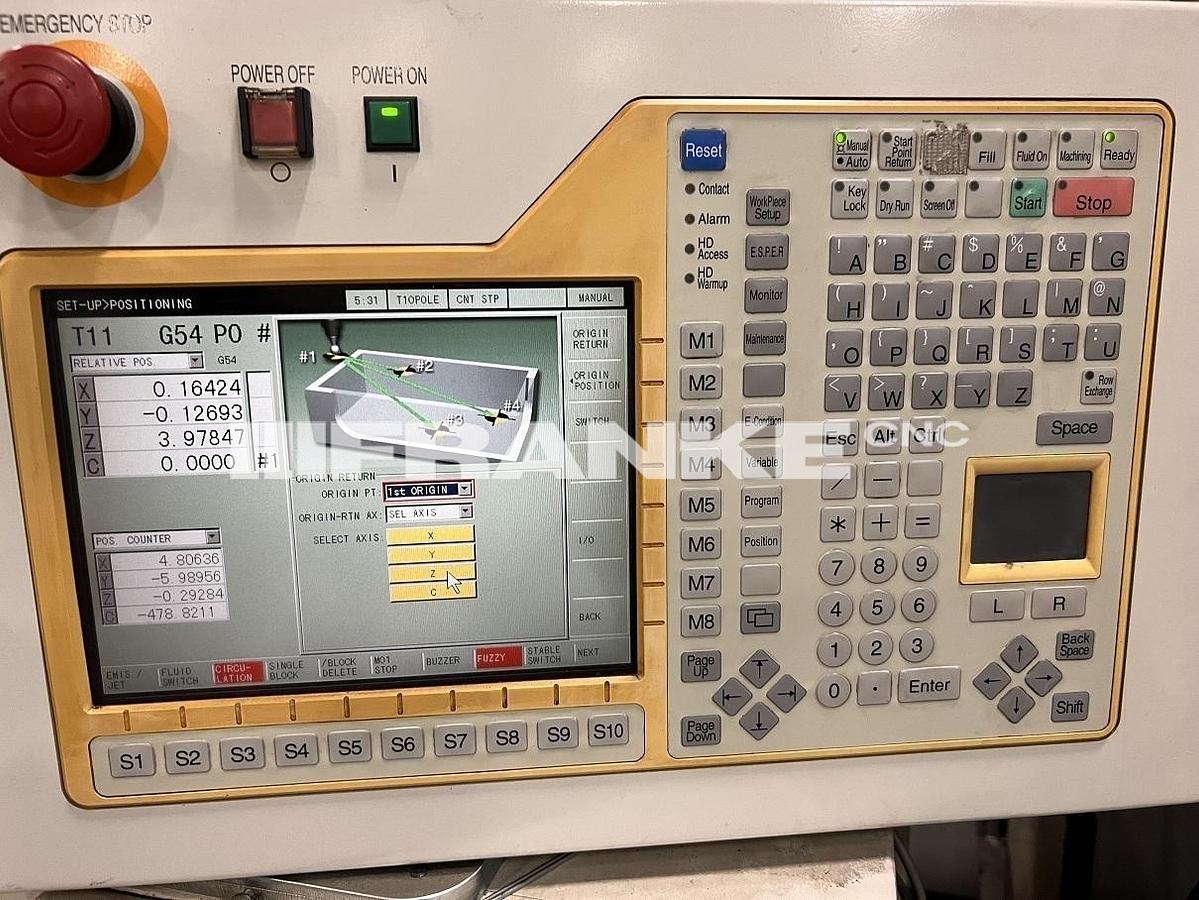

* Mitsubishi M700 CNC Control

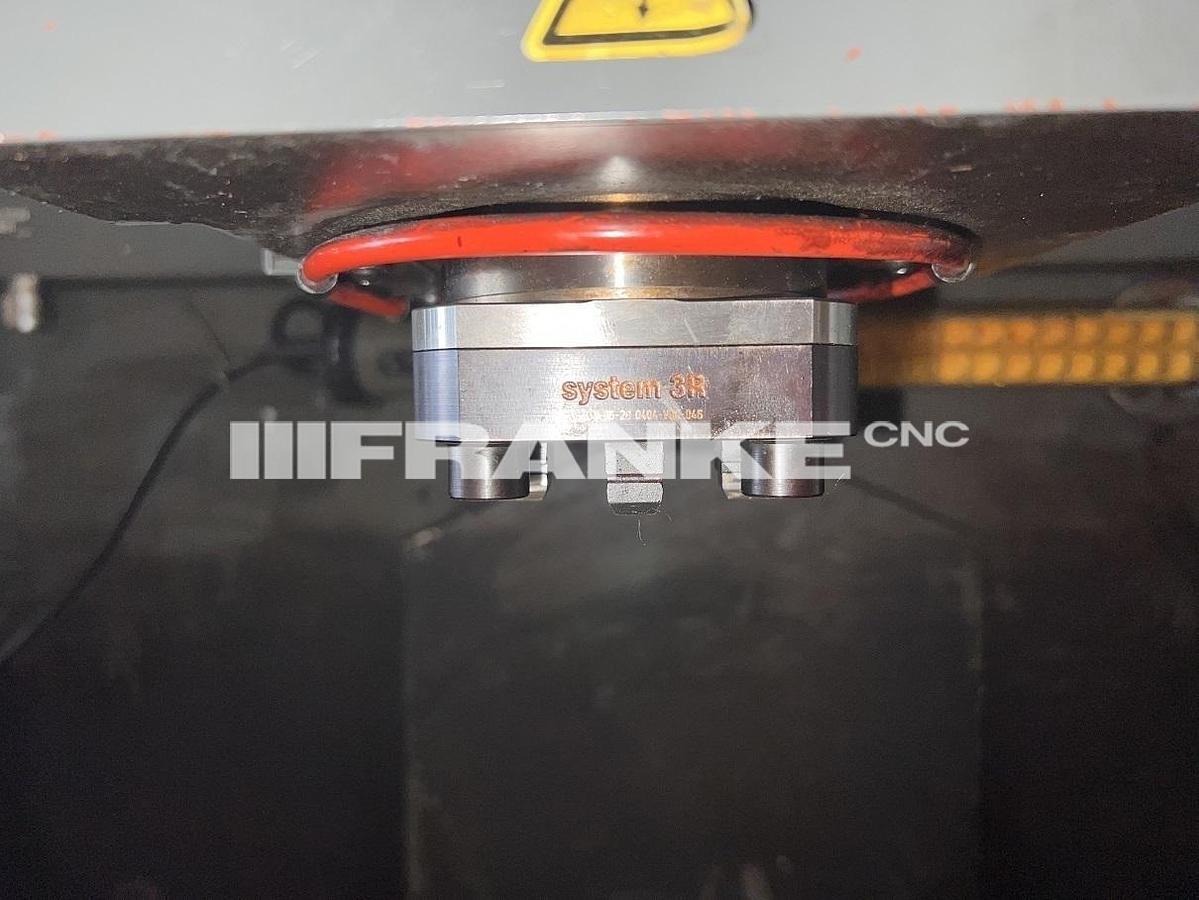

* C-Axis (3R Macro Standard)

* FP80V Power Supply

* Dual Feedback Construction with Glass Scales and Encoders (X, Y, & Z)

* Automatic Drop Tank Design

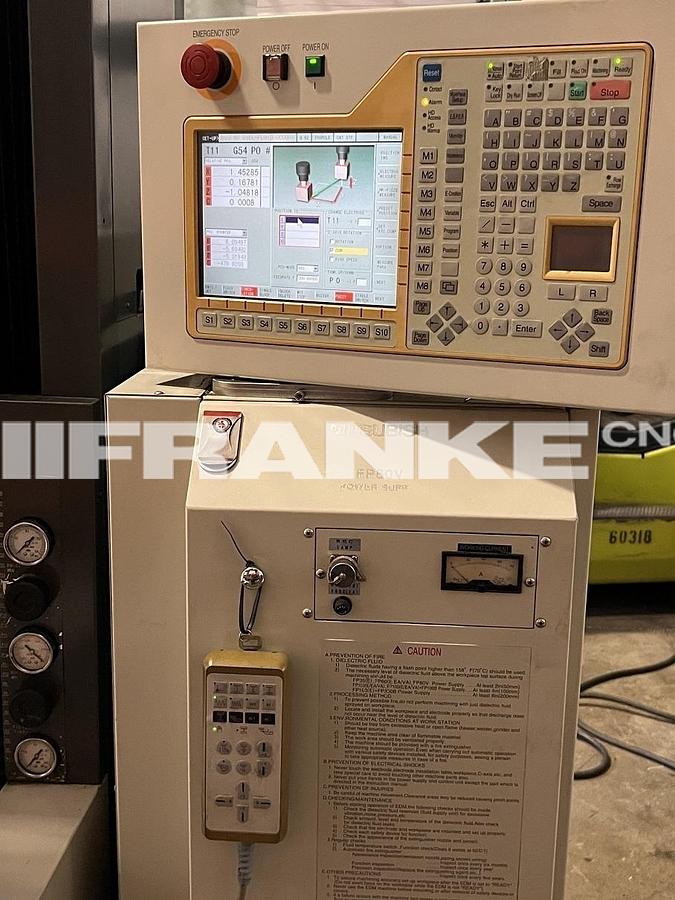

* PC Based CNC Control With Touchscreen Monitor

* 10MB User Program Storage On Hard Drive

* Ethernet / DNC / FTP Connections

* Electric Chiller

* Remote Hand Controller

* All Available Manuals and Accessories



Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.


Price quoted is FOB Purchase Point.

Price quoted includes professional de-installation and shipping preparation by Seller.

Price quoted includes the cost of loading onto truck supplied by Buyer.

Specifications

ManufacturerMITSUBISHI
ModelEA12V
Year2004
ConditionUsed
Stock Number064548
