2018 +GF+ MIKRON MILL X 400 U 5-Axis VMC with 27 x pallets automation
2018 +GF+ MIKRON MILL X 400 U 5-Axis VMC with 27 x pallets automation
Description
EQUIPPED WITH:

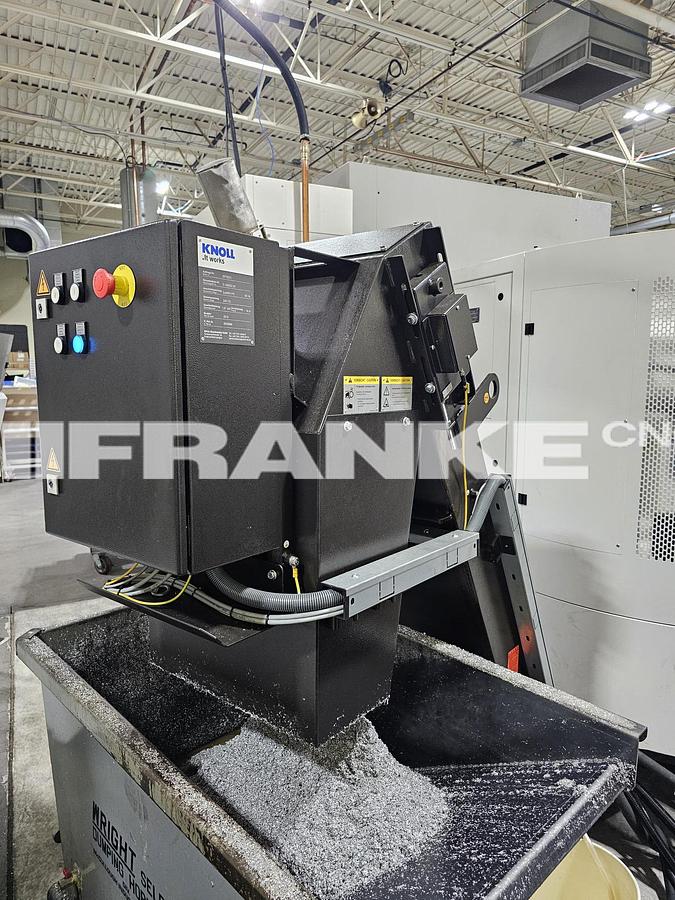

Chip conveyor for higher performance
Prepped for oil mist extraction
Smart Machine Modules:
APS
Extended APS
ITC
ITC-5X
PFP Power Fail Protection
OSS Operator Support System
Kinematics Option
Oil skimmer
Spray gun
Infrared touch probe
Beacon
Tool blow off unit
Ambient robust option
Oil mist spray unit
Spindle nose cleaning system
Quick coupling on coolant line
HIGH ACCURACY 5 AXIS
Wash down system
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specifications
| Manufacturer | +GF+ MIKRON |
| Model | MILL X 400 U |
| Year | 2018 |
| Condition | Used |
| Stock Number | 064545 |
| Work area Longitudinal (X) | 500 mm (19.68") |
| Work area Lateral (Y) | 240 mm (9.45") |
| Work area Vertical (Z) | 360 mm (14.17") |
| Swiveling axis | +110/-110 degrees |
| Rotary axis | n x 360 |
| Rapid traverse (X/Y/Z) | 100 m/min (3,937 ipm) |
| Rapid traverse (swivel) | 165 rpm |
| Rapid traverse (rotary) | 250 rpm |
| Working Spindle speed | 42,000 rpm |
| Working Spindle taper | HSK-E40 |
| Working Spindle power | 13.5 kW |
| Working Spindle torque | 8.8 Nm |

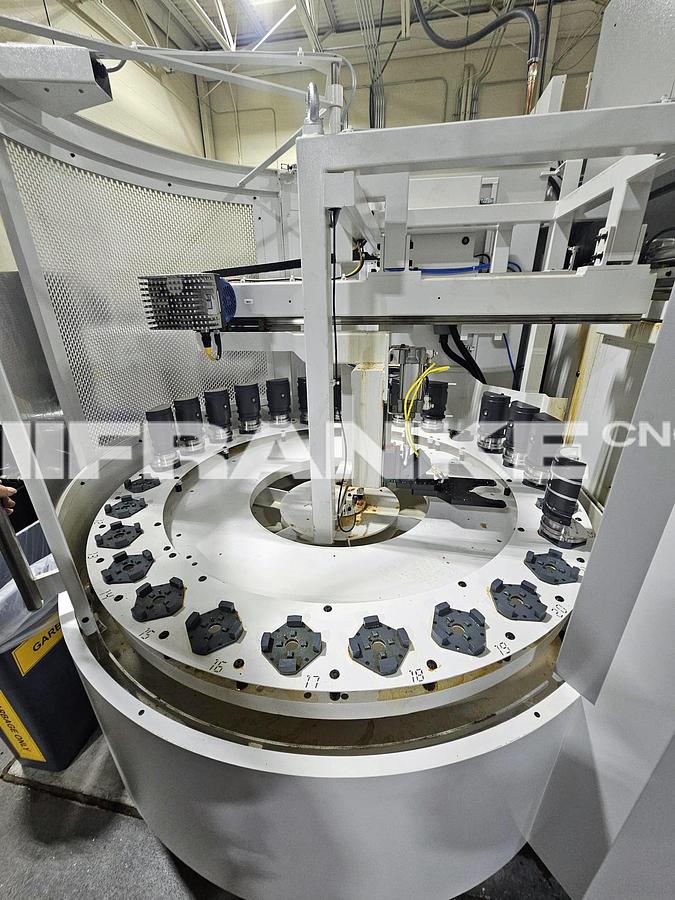

| Automatic pallet changer number of pallet stations | 27 |
| Pallet type | MacroMagnum 156 |
| Maximum table load | 25 kg (55 lbs) |
| Tool Magazine | 68 position |
| Machine weight | 7,000 kg (15,432 lbs) |

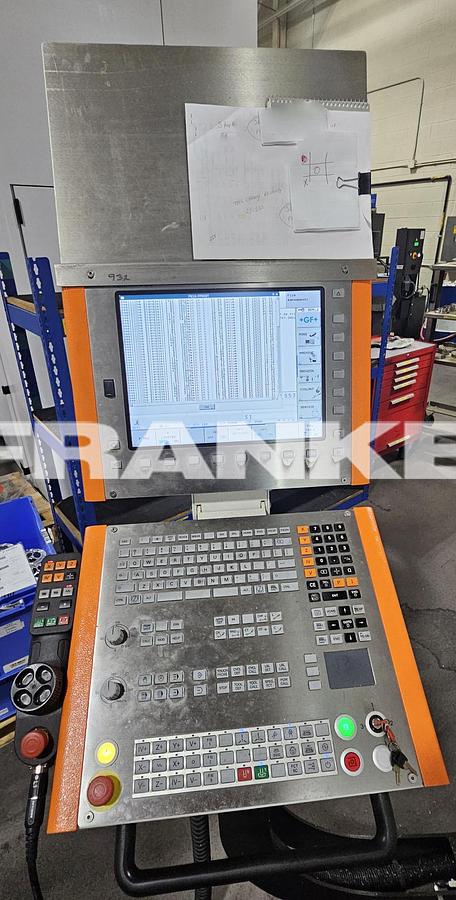

| Control | Heidenhain iTNC 530 HSCI |
