2010 +GF+ MIKRON HSM600U 36k RPM
2010 +GF+ MIKRON HSM600U 36k RPM
or
Call 262-432-7474
Description
Equipped With:
Heidenhain iTNC 530 control
Electronic handwheel for control
Laser tool measuring system
Touch probe

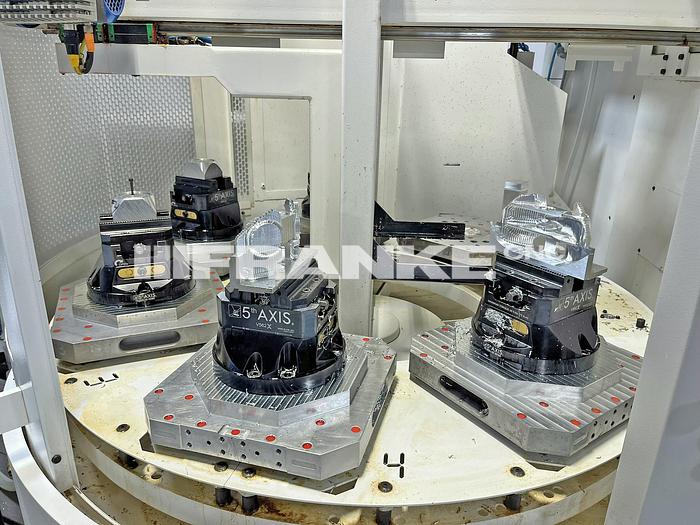

7 station pallet changer for UPC pallets
Machine enclosure
Scrapper chip conveyor

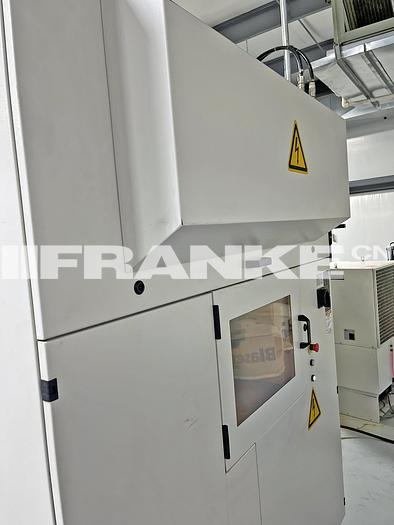

External spindle chiller
Beacon/Signal lamp option

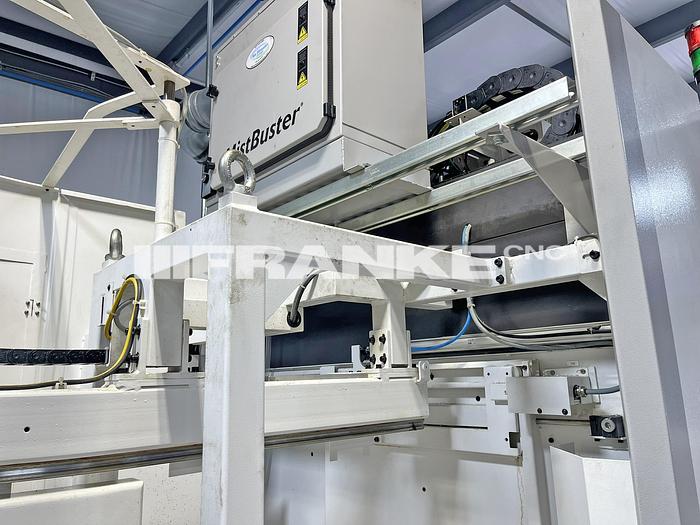

MistBuster oil mist extraction system
Spray pistol
Tool blow-off unit
Oil mist spray unit
60 station automatic tool changer
Smart Machine Modules APS, ITC, ITC-5X, OSS
Specifications
| Manufacturer | +GF+ MIKRON |
| Model | HSM600U 36k RPM |
| Year | 2010 |
| Condition | Used |
| Stock Number | 064511 |
| Working range longitudinal | 800 mm (31.5") |
| Working range cross | 600 mm (23.6") |
| Working range vertical | 500 mm (19.7") |

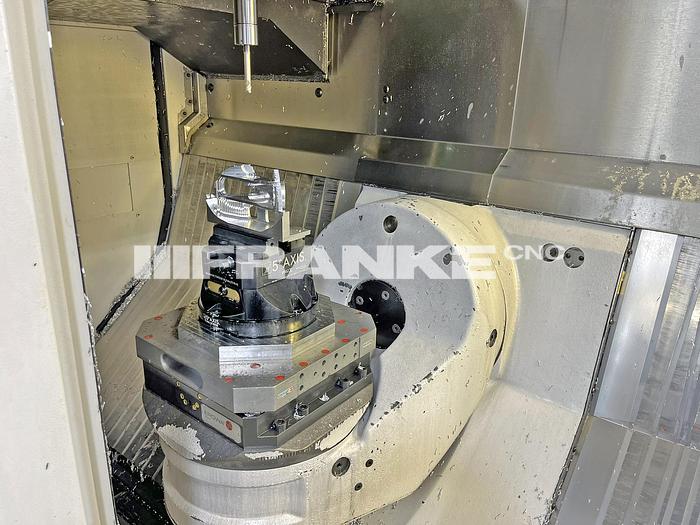

| B-axis (swivel) | +30/-110 degrees |
| C-axis (rotary) | n x 360 degrees |
| Number of simultaneous axis | 5/5 simultaneous |
| Feed rate X,Y,Z | 42 m/min (1,653 IPM) |
| Feed rate B-axis (swivel) | 200 rpm |
| Feed rate C-axis (rotary) | 360 rpm |
| Acceleration X,Y,Z | up to 17 m/sec-2 |
| Acceleration B-axis (swivel) | up to 30 rad/sec-2 |
| Acceleration C-axis (rotary) | up to 125 rad/sec-2 |
| Work table clamping surface | 320 mm x 320 mm (12.6" x 12.6") |
| Maximum workpiece weight | 120 kg (264 lbs) |
| Pallet type this machine is equipped with | EROWA UCP 320 mm x 320 mm |
| Tool magazine positions | 60 |
| Weight including pallet changer | 9,200 kg (20,282 lbs) |
| Spindle taper | HSK-E50 |
| Spindle RPM | 36,000 RPM |
| Spindle power 40% ED | 25 kW (33.5 HP) |
| Spindle torque 40% ED | 20 Nm (14.75 Ft/Lb) |
