Subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement, we offer for your consideration:


One used 2000 DMG MORI DECKEL MAHO DMU 50 eVolution full 5-Axis simultaneous VMC:


Fly into MKE to inspect under power in our Wisconsin showroom by appointment



Machine was manufactured at DECKEL MAHO Seebach GmbH-Germany

Machine was featured at the IMTS and first installed new in the USA 10/2000

Clamp once, machine 5-sides

Table on machine swivels 0-180 degrees and rotates 360 degrees which allows for 5-sided 5-axis simultaneous machining with 1 workpiece clamping.


Working area

Longitudinal (X) 19.7" (500 mm)

Transverse (Y) 16.5" (420 mm)

Vertical (Z) 15.0" (380 mm)

Main drive

AC motor spindle drive power 100% DC 33.5 hp (25 kW)

AC motor spindle drive power 40% DC      46.9 hp (35 kW)

Work spindles, tool mounting                        CAT 40

Speed range                                                  18,000 rpm

Number of gear steps                                    None

Maximum spindle torque                              95.9 ft/lbs (130 Nm)

Spindle bearing diameter                             3.15” (80 mm)


Tool changer

Number of tools                                               32

Maximum tool weight                                    13.22 lbs (6 kg)

Maximum tool diameter wo vacant places  3.15” (80 mm)

Maximum tool diameter with vacant places   4.13” (105 mm)

Maximum tool length                                     11.02” (280 mm)

Chip to chip time                                            Approximately 6 seconds



Feed range, linear axes                             787.4 ipm (20 m/min)

Rapid traverse, linear axes                         1,968 ipm (50 m/min)


Path measuring system

Direct, Heidenhain glass scales, resolution 1 um (0.00004”) for X/Y/Z



Heidenhain MillPlus iT



Weight of machine with NCSRT                 Approximately 11,374 lbs

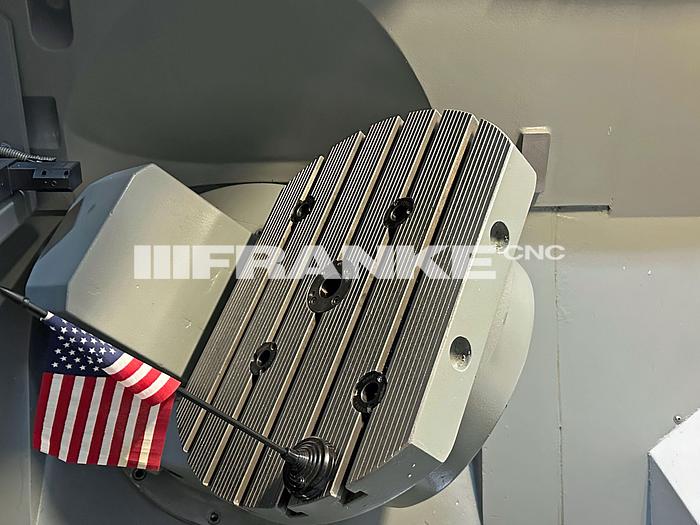

NC-rotary table with NC-swivel axis

Clamping area                                             19.7” diameter x 15” (500 mm x 380 mm)

Center bore                                                   1.2” H6 diameter

No./Spacing of T-slots                                   5/2.5” 14H7

Swivel axis (B axis)                                      0 degrees through 180 degrees

Rapid traverse (Swivel B axis)                      26 rpm

Table swivel time, horizontal to vertical         Approximately 1.5 seconds

Rotary axis (C axis)                                      0-360 degrees (continuous, full 4th axis)

Rapid traverse (Rotary C axis)                     33 rpm

Table loading maximum                                440 lbs (200 kg)

Table measuring system                               Direct, Heidenhain angle encoders for B & C axes

Table cooling                                                 Drive cooling for B & C axis with heat exchanger


Flood coolant

Amount of coolant                                  52.8 gallons (200 l)

Flow rate                                                  5.28 gallon/minute (20 l/minute)


CTS Coolant Thru The Spindle

Amount of coolant 238 gallons (900 l)

Pressure of coolant thru the spindle 580 PSI (40 bar)

Equipped with

BLUM laser tool measuring of tool length, diameter, & broken tool detection

BEMA programmable coolant nozzles

Chip conveyor

Price quoted in United States Dollars

Price quoted is FOB Origin

Origin is Hartland, WI


To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.





ManufacturerDMG MORI
ModelDECKEL MAHO DMU 50 eVolution
Stock Number064474
