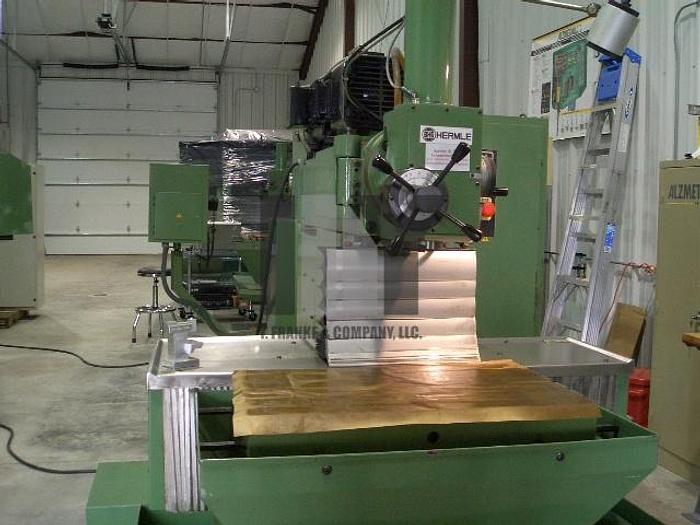

CNC UNIVERSAL MILLS UWF 600 SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 1992 HERMLE UWF 600 CNC Universal Toolroom Milling Machine: On Our Floor VIDEO: Handmade in Gosheim, Germany Condition    AS NEW, conforms to new machine spec, approx 800 hrs total use ! Machine is equipped with a manual swivel milling head for both vertical and horizontal machining with one workpiece clamping -HEIDENHAIN TNC 355 CNC CONTROL- Control panel is designed to pivot on top of the swiveling support arm. 3-Axis simultaneous controlled axes. Control can be used with either conversational language programming or G-Code/ISO language programming. Control is equipped with a RS 232 port for downloading programs. -SPECIFICATIONS- -EQUIPPED WITH- Operating and programming manuals Halogen worklight Multi tap transformer Handwheel for control Heidenhain glass scales X/Y/Z Axes V-Head flange cooling Water tank Automatic lubrication Automatic draw bar CAT40 Vertical & Horizontal spindles with manual swivel milling head RS 232 port on control Vent system in electrical cabinet -TERMS- Payment in full via wire transfer prior to removal. Sale subject to terms and conditions of FRANKE Sales Contract.


ModelUWF 600
Stock Number063832
Number of axis3-Axis
ControlHH TNC 355
Spindle6,000 rpm
Spindle taperCAT 40
X axis12.6" (320 mm)
Y axis11.2" (280 mm)
Z axis13.78" (350 mm)
X-axis (longitudinal) travel12.6" (320 mm)
Y-axis (transverse) travel11.02" (280 mm)
Z-axis (vertical) travel13.78" (350 mmn)
Vertical spindle speed range40-6,000 rpm, geared headstock
Horizontal spindle speed range40-6,000 rpm, geared headstock
Number of gear ranges (automatic)3
Vertical spindle taperCAT 40
Horizontal spindle taperCAT 40
Hydromechanical tool clamping12,000 N
Vertical manual quill spindle stroke2.48" (63 mm)
Rapid traverse x, y, z0.2"/min (5 mm/min)
Linear measuring systemHeidenhain linear glass scales X/Y/Z Axes
Prepared byYork Franke
