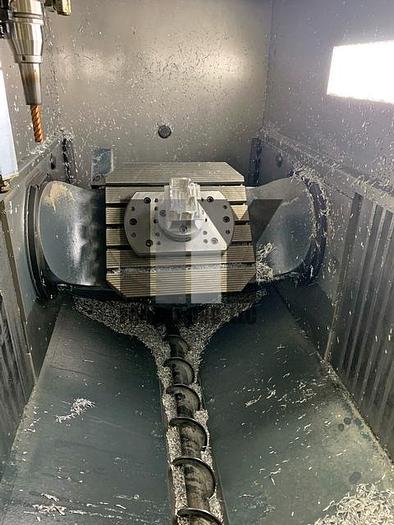

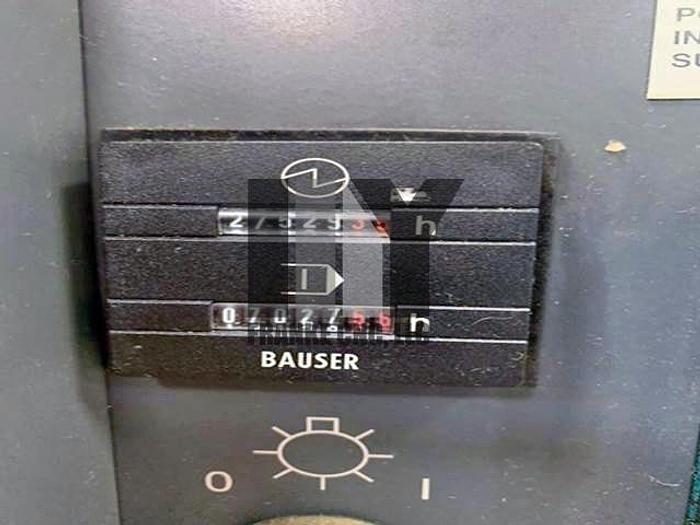

5-AXIS MACHINING CENTERS DECKEL MAHO HSC 55 linear SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2008 DMG MORI DECKEL MAHO HSC 55 linear 5-Axis Machining Center: See VIDEO of 110 rpm Rotary Swivel Table at: See VIDEO of 5-Axis High Speed Cutting on a HSC55 at: May be inspected in US plant under power by appointment Machine was made at Deckel Maho Seebach GmbH in Seebach, Germany Hours    Approx 7,027 spindle on hours TOTAL over the LIFE of the machine TECHNICAL DATA: HSC-Precision Centre HSC 55 linear in Bridge Type design NEW DMG Design CONTROL: 3D-Control Heidenhain iTNC 530 Operator screen SmarT.NC DMG ERGOline Control, 19" display Options on the control: Electronic handwheel Ethernet Data lines and adapter Application Tuning Cycle ATC-Software selection of the optimal milling mode for the current machining -MAXIMUM WORKPIECE DIMENSIONS- WORKING AREA: Table has absolute measuring systems including permanent cooling of A and C-axis motors MAIN DRIVE: TOOL MAGAZINE: Chain with double gripper with linear axis for pickup-change Tool changer and tool magazine integrated in machine cabin FEED DRIVES: GUIDEWAYS: Roller guide ways in all linear axis LINEAR MEASURING SYSTEM: MEASURING: BLUM Laser Tool Measuring for tool length and diameter Renishaw OMP 60 infrared touch probe Machine preparation for use of the 3D quickset Toolkit Signal lamp, 4 colours COOLING MEDIA/CHIP REMOVAL: Scraper type chip conveyor, discharge height 37.4" (950 mm) High Pressure Air blast through spindle centre, activated by M function and softkey, maintained air with a light lubrication Working area flushing, including door flushing pipe, with rotating clear-view window 6 nozzles for outer coolant supply, delivery rate approximately 36.25 psi (2.5 Bar) at 10.56 gallon/min (40 l/min). Coolant tank capacity 39.62 gallon (150 l) Coolant-airblast changeover (6 nozzles for coolant, 4 nozzles air blow) CENTRAL LUBRICATION: Automatic minimum lubrication for roller guideways ELECTRICAL CABINET: With active cooling unit WORKING HOUR RECORDING: On the electrical cabinet for control voltage on and programme run-time CABIN: Full cabin with sliding door DMG LIGHTline provides optimal visibility of the machine status MACHINE LAMP: Planon-light MACHINE WEIGHT: Approximately 20,943 lbs (9,500 kg) EQUIPPED WITH: Active chiller for main spindle and linear drives Active chiller for electrical cabinet Direct absolute measuring system with air purge Coolant-airblast changeover Miscellaneous HSK-A63 tool holders Technical specifications are subject to verification by Buyer. APPROXIMATE WEIGHT 20943#


ManufacturerDMG MORI
ModelDECKEL MAHO HSC 55 linear
Stock Number064374
Number of axis5-Axis
Tool changer30 ATC

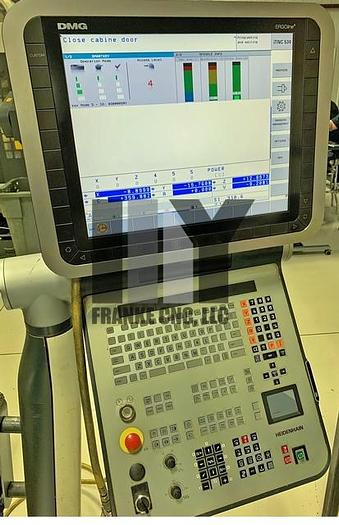

ControlHH iTNC 530
Spindle18,000 rpm

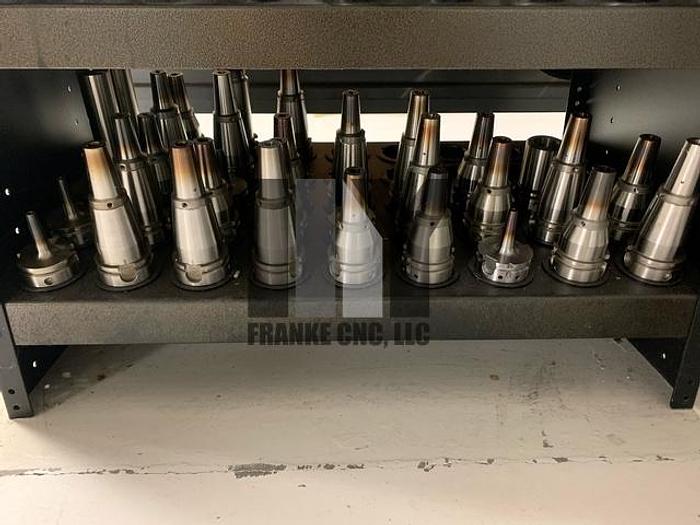

Spindle taperHSK-A63 DIN 69893
X axis17.7" (450 mm)
A axis+10/-110 degrees
Y axis22.8" (580 mm)
Z axis15.7" (400 mm)
C axis360 x 0.001 degrees
Original build date07/2008
Maximum workpiece diameter17.7" (450 mm)
Maximum workpiece height13.8" (350 mm)
Maximum workpiece weight440.9 lbs (200 kg)
X-axisSize 1.77" (45 mm), distance 16.53" (420 mm)
Y-axisSize 1.37" (35 mm), distance 35.00" (890 mm)
Z-axisSize 1.37" (35 mm), distance 12.59" (320 mm)
C-axis360 degrees Rotation Range (110 rpm !)
A-axis+10/-110 degrees Tilting range (110 rpm !)
Distance spindle nose to table4.1"-19.8" (105 mm-505 mm)
Clamping area trunnion table15.7" x 15.7" (400 mm x 400 mm)
Maximum table load440 lbs (200 kg)
DriveLinear motors in X, Y, Z-axis, Torque motors in A and C-axis
Spindle speed range20-18,000 rpm
Spindle power 40/100% dc54.98 hp/40.23 hp (41 kW/30 kW)
Magazine places30 pockets
Maximum tool diameter3.14" (80 mm) with free neighboring pockets
Maximum tool length9.84" (250 mm)
Maximum tool load13.2 lbs (6 kg)
Feed rateX, Y and Z-axis maximum 3,150 ipm (80,000 mm/min)
Rapid feedX, Y, and Z-axis 262 ft/min (80 m/min)
Rapid feed a-axis110 rpm
Rapid feed c-axis110 rpm
AccelerationUp to 2g
Clamping torque rotary axis1,475 ft/lbs (2,000 Nm)
Clamping torque swivel axis1,475 ft/lbs (2,000 Nm)
SystemDirect absolute X/Y/Z Axis, absolute encoders A/C Axis
Input resolution0.0000039" (0.0001 mm)
