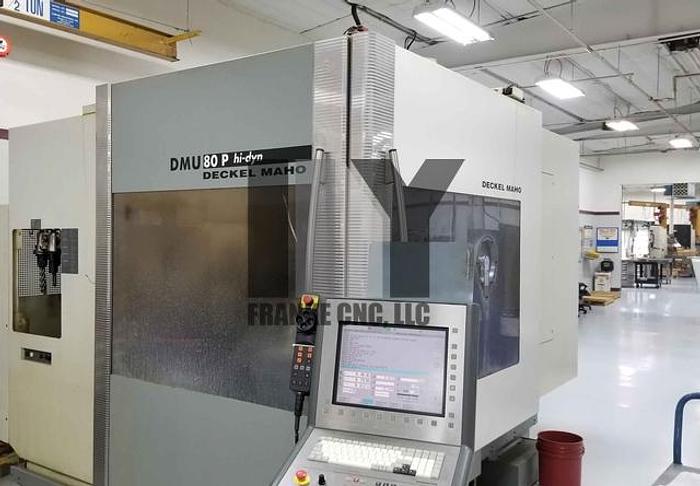

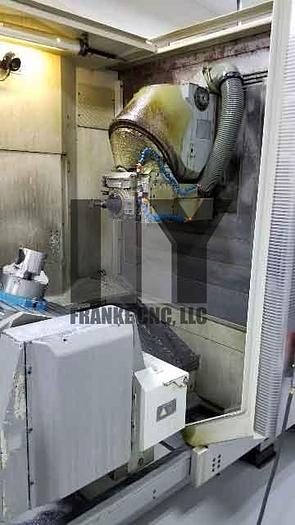

5-AXIS MACHINING CENTERS DECKEL MAHO DMU 80P hi-dyn SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: 2005 DMG MORI DECKEL MAHO DMU80P hi-dyn 5Axis Universal Machining Center: *May be inspected in plant under power by appointment* HEIDENHAIN MillPlus IT CNC Control with electronic handwheel & Ethernet -DESIGN CONCEPT- This is a UNIVERSAL machining center meaning it is two machines in one: both a vertical AND horizontal machining center. The universal milling head on this machine is automatic and programmable. It can be swivelled in 6 seconds from vertical to horizontal, and in combination with the rotary swivel table makes 5-sided 5-axis machining in a single set up possible. Setup time is reduced, the need for multiple setups is eliminated and accuracy and precision are improved. The P Series machines are intended for fully automatic manufacturing of highly complex workpieces in a single set up. Ideal for both small and large batches with the high production components including high pressure CTS (Coolant Thru The Spindle) and chip conveyor. -WORKING RANGE- Maximum part size    31.5" (800 mm) diameter x 23.6" (600 mm) high x 1,323lbs -NC SWIVEL ROTARY TABLE- Swivel angles    To spindle -45 degrees, from working spindle +30 degrees -AUTOMATIC UNIVERSAL MILLING HEAD- Automatic swivel from horizontal to vertical in approximately 6 seconds. The auto swivel head makes this machine 2 machines in one because both vertical and horizontal machining is possible with one workpiece clamping. Together with the NC Swivel Rotary table 5-Sided, 5-Axis simultaneous machining is possible with one workpiece clamping. -GEARED SPINDLE- Number of gear steps    2, acceleration/deceleration from 20-6,300 rpm 3 sec -FEED DRIVES- -30 POSITION TOOL CHANGER- Maximum tool diameter with no neighbouring empty pockets    4.33" (110 mm) Chip-to-chip time CAT40    Approximately 16 seconds vertical, 7.5 sec horiz -HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM- -HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM- -EXTERNAL FLOOD COOLANT PUMP ON OUTSIDE OF SPINDLE- Pump output external jets flow rate    10.6 gallon/minute (40 l/min), 1.5 bar -INTERNAL HIGH PRESSURE COOLANT SUPPLY THRU THE SPINDLE (40 BAR CTS)- -EQUIPPED WITH- Fully enclosed protection cabin Chip conveyor BLUM Laser Tool Measuring of tool length and diameter RENISHAW MP10 infrared parts measuring touch probe Auto swivel milling head that swivels from vertical-horizontal & viceversa Tool breakage monitoring Original machine parameters on CD, diskette and paper print out Original accuracy test chart from the factory in Germany Electrical schematics, operator manual, programming manual


ManufacturerDMG MORI
ModelDECKEL MAHO DMU 80P hi-dyn
Stock Number064227
Number of axisFull 5-Axis
Tool changer30 ATC

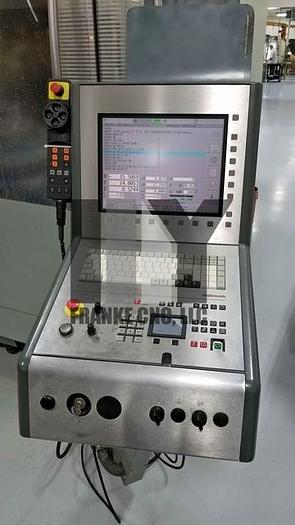

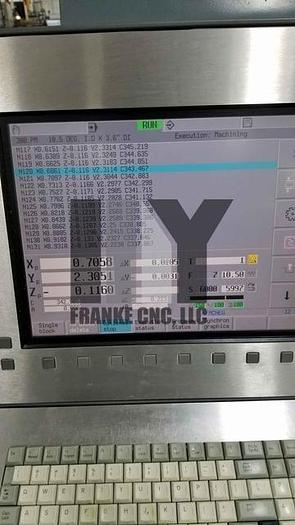

ControlMillPlus IT
Spindle6,300 rpm
Spindle taperCAT 50
X axis31.5" (800 mm)
A axis-45 to +30 degrees
Y axis27.6" (700 mm)
Z axis23.6" (600 mm)
C axis360 x 0.001 degrees
X axis (longitudinal)31.5" (800 mm)
Y axis (transverse)27.6" (700 mm)
Z axis (vertical)23.6" (600 mm)

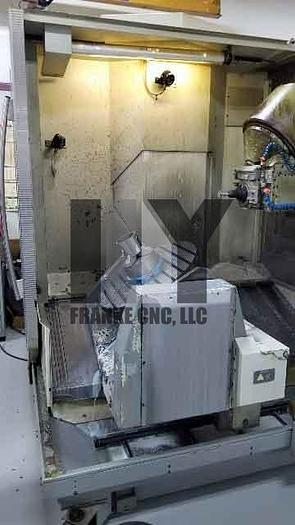

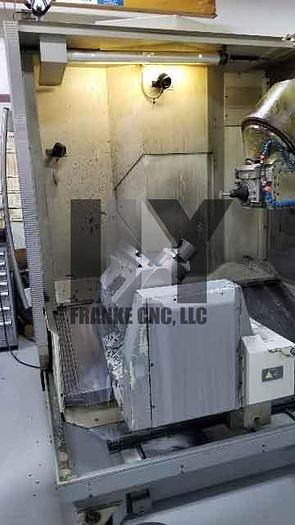

Clamping surface24.8" diameter (630 mm)
Maximum table load1,320 lbs (600 kg)
Rapid speed rotary axis9.3 rpm
Rapid speed swivel axis7.3 rpm
Rotation range360 x 0.001 degree (Full 4th axis)
TypeBrushless AC/Digital
Power 40% duty cycle (s3)21.5 hp (16 kW)
Power 100% duty cycle (s1)17.5 hp (13 kW)
Spindle speed range20-6,300 rpm with gearbox
Maximum spindle torque350 ft/lbs (475 Nm)
Spindle bearing diameter front/rear3.94"/2.76" (100/70 mm)
Clamping power20 kN
Feed rate (x-y-z)2,362 ipm (60 m/min)
Rapid feed (x-y-z)197 ft/min (60 m/min)
Feed power (x-y-z)10 kN
Ballscrew thread x/y/z40x20 mm

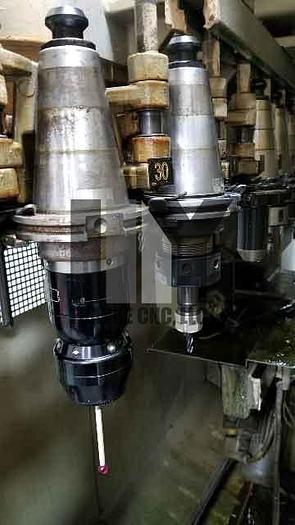

Magazine typeChain, horizontal, double gripper
Number of pockets30
Maximum tool weight44 lbs (20 kg)
Maximum tool diameter with neighbouring empty pockets9.05" (230 mm)
Maximum tool length13.8" (350 mm)
Tool change timeApproximately 6.5 seconds
Input resolution0.001 mm
Coolant tank capacity158 gallon (600 l)
Pump output thru the spindle6 gallon/minute (23 l/min)
Coolant pressure580 PSI (40 bar)
