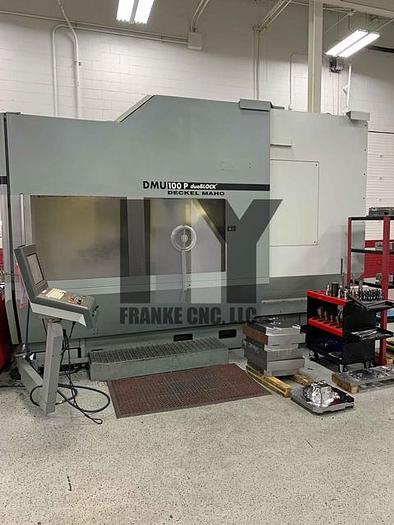

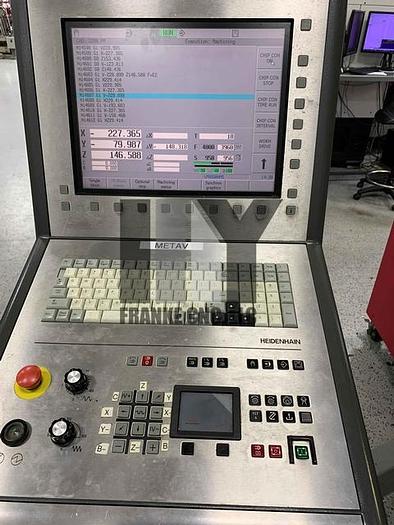

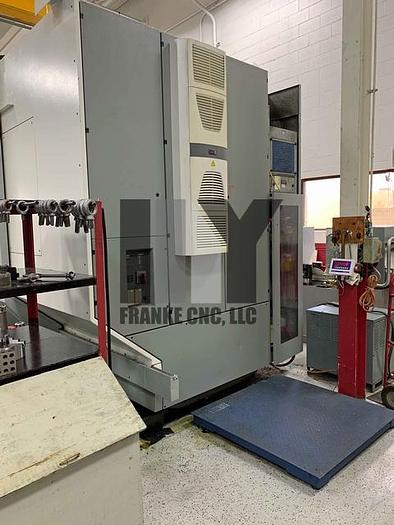

5-AXIS MACHINING CENTERS DECKEL MAHO DMU100P duoBLOCK SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2005 DMG MORI DECKEL MAHO DMU100P duoBLOCK 5-Axis UMC: Made was made in Pfronten, Germany at DECKEL MAHO-Pfronten Heidenhain Millplus iT 3-D control with 15" TFT flat screen. Highlights: -Easy to operate -Contour programming -Measuring cycles -Fast batch processing -Increased operator comfort through familiar DIN-ISO programming -Clear layout of the graphic user-interface -DECKEL MAHO spindle sensor technology -DECKEL MAHO ATC (Application Tuning Cycle) Control is equipped with the following options: -Electronic handwheel -2nd processor card with Windows 2000 -Application Tuning Cycle ATC: ATC is a software option for easy tuning of the feed-drives at the press of a button. Machine operator can adjust the machining optimal speed or optimal precision. These 3 settings are available from anywhere within a workpiece program. Benefits are minimized machining times combined with maximum quality for the desired parameters. If necessary, parameters can be set in relation to workpiece weight. -WORKING RANGE- -MAXIMUM WORKPIECE DIMENSIONS- -NC ROTARY TABLE 4TH AXIS (C-AXIS)- 1 x T-slot 18 H7 (alignment groove, table centre) 8 x T-slot 18 H12 (clamping grooves) -NC CONTROLLED 5TH AXIS (UNIVERSAL MILLING HEAD, B-AXIS)- B axis - NC controlled range up to 190 degrees.  From vertical position 0 degrees to the left -10 degrees (in direction of tool magazine) and to the right to horizontal position +180 degrees=3D190 degrees in total. -MAIN DRIVE- Tool clamping hydraulic/mechanical for draw bolt ISO/DIS 7388/II type B -FEED DRIVES- -40 POSITION TOOL CHANGER- Maximum tool diameter with no neighbouring empty pockets    3.15" (80 mm) -HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM- -HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM- -EXTERNAL FLOOD COOLANT PUMP- -580 PSI COOLANT THRU THE SPINDLE CENTRE (FORM AD)- This is a full 4th axis with Direct Measuring System (Heidenhain encoder) -EQUIPPED WITH- Fully enclosed protection cabin Production Package consisting of: -Coolant tank 158 gallon (600 l) -Automatic coolant cleaning through paper band filter -580 PSI (40 bar) coolant thru the spindle centre (Form AD) -Rotating clear-view window (in cabin window) -Chip conveyor with interval control RENISHAW MP10 Infrared parts measuring probe BLUM Laser tool measuring-tool length, diameter & broken tool detection -Automatic retraction of the measuring unit in a protected housing. -Tool length and diameter measuring in horizontal/vertical position. Spray pistol with pump, 14.5 PSI/10.4 gallon/min pump performance APPROXIMATE WEIGHT 37050#


ManufacturerDMG MORI
Stock Number064293
Number of axis5-Axis
Tool changer40 ATC
ControlHH Millplus iT
Spindle18,000 rpm
Spindle taperCAT 40
X axis39.4" (1,000 mm)
Y axis39.4" (1,000 mm)
B axis-10 to +180 degrees
Z axis39.4" (1,000 mm)
C axis360 x 0.001 degrees
First installed new08/2005
Performance to preferred conditionsoptimal surface quality,
X axis (longitudinal)39.4" (1,000 mm)
Y axis (transverse)39.4" (1,000 mm)
Z axis (vertical)39.4" (1,000 mm)
Maximum workpiece diameter49.2" (1,250 mm)
Maximum workpiece height62.2" (1,580 mm)
Maximum workpiece weight4,409 lbs (2,000 kg)
Clamping surface43.3" diameter x 35.4" (1,100 mm diameter x 900 mm)
Maximum table load (centered)4,400 lbs (2,000 kg)
Maximum torque (40% ed)3,614 ft/lb (4,900 Nm)
Maximum holding momentum (40% ed)3,614 ft/lb (4,900 Nm)
Rapid speed rotary axis (c-axis)30 rpm
Distance between t-slots4" (100 mm)
TypeBrushless AC/Digital
Power 40% duty cycle (s3)37 hp (28 kW)
Power 100% duty cycle (s1)25 hp (19 kW)
Spindle speed range20-18,000 rpm
Acceleration/deceleration2.2 seconds
Number of gear stepsNone
Maximum spindle torque 40% duty cycle89.2 ft/lb (121 Nm)
Maximum spindle torque 100% duty cycle60.48 ft/lb (82 Nm)
Spindle bearing diameter front3.15" (80 mm)
Spindle bearing diameter rear2.36" (60 mm)
Feed rate (x-y-z)2,362 ipm (60 m/min)
Rapid feed (x-y-z)2,362 ipm (60 m/min)
Acceleration (x-y-z)6/5/6 m/s-2
Feed power (x-y-z)12/12/12 kN
Ball screw (x-y-z)40 mm x 20 mm
Magazine typeChain, horizontal, double gripper
Number of pockets40
Maximum tool weight33.1 lb (15 kg)
Maximum tool diameter with neighbouring empty pockets6.3" (160 mm)
Maximum tool length19.7" (500 mm)
Input resolution0.001 mm
Pump output external jets pressure21.7 PSI (1.5 bar)
Pump output external jets flow rate10.6 gallon/minute (40 l/min)

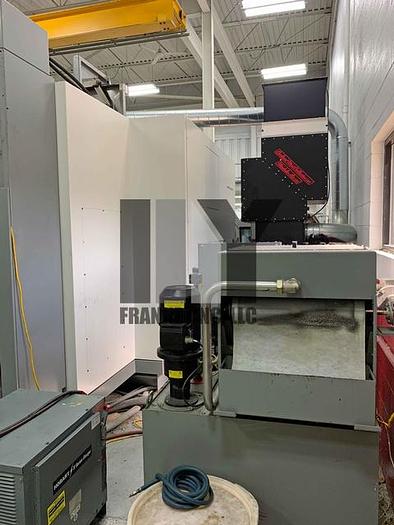

Coolant tank capacity158 gallon (600 l)
Pump output6.1 gallon/minute (23 l/min)
Pump pressure580 PSI (40 bar)
