Description
5-AXIS MACHINING CENTERS
DECKEL MAHO DMU 50 eVo linear
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

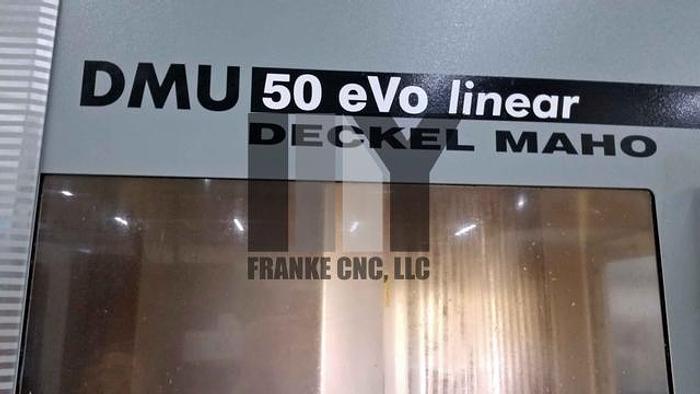

Used 2007 DMG MORI DECKEL MAHO DMU 50 eVo linear 5-Axis Simultaneous VMC:
Made was made at DECKEL MAHO Seebach GmbH in Seebach, Germany
-CONTROL-
Heidenhain iTNC530 CNC with 15" TFT flatscreen & Electronic Handwheel
-WORK AREA-
-MAIN DRIVE-
-FEED DRIVES-
Rapid traverse linear axes X/Y/Z 3,149/1,968/1,968 ipm (80/50/50m/min)
-TOOL MAGAZINE-
-NC SWIVEL ROTARY TABLE-
-EQUIPPED WITH-
Air spray pistol
Chip conveyor
40 gallon flood coolant tank
Flood coolant 5.2 gal/min @ 36 psi
6 water coolant nozzles, 4 air coolant nozzles
HEIDENHAIN glass scales X/Y/Z axes
HEIDENHAIN rotary encoders B/C axes
5-Axis Simultaneous Movement
Specifications
| Manufacturer | DMG MORI |
| Model | DECKEL MAHO DMU 50 eVo linear |
| Year | 2007 |
| Condition | Used |
| Stock Number | 064122 |
| Status | Available |
| Number of axis | 5-Axis |
| Tool changer | 30 ATC |
| Control | HH iTNC 530 |
| Spindle | 18,000 rpm |
| Spindle taper | CAT 40 |
| X axis | 19.7" (500 mm) |
| Y axis | 17.7" (450 mm) |
| B axis | 0-108 degrees |
| Z axis | 15.7" (400 mm) |
| C axis | 0-360 degrees |
| Traverse path x (longitudinal) | 19.7" (500 mm) |
| Traverse path y (across) | 17.7" (450 mm) |
| Traverse path z (vertical) | 15.7" (400 mm) |
| Ac-motor spindle (40/100% dc) | 46.9/33.5 hp (35/25 kW) |
| Spindle speed | 20-18,000 rpm |
| Spindle torque (40/100% dc) | 95.9/64.1 ft lbs (130/87 Nm) |
| Spindle bearing diameter (front/rear) | 3.15"/2.17" |
| Feed velocity linear axes x/y/z | 787.4 ipm (20 m/min) |
| Feed power x/y/z | 1,124 ft/lb (5 kN) |
| Storage pockets | 30 positions |
| Maximum tool length | 11.8" (300 mm) |
| Maximum tool diameter | 3.15"/5.12" (80/130 mm) |
| Chip-to-chip time | 5 seconds |
| Clamping surface | 19.7" x 15.0" (500 x 380 mm) |
| Swivel range b-axis | 0-108 degrees |
| Swivel range c-axis | 0-360 degrees |
| Rapid traverse swivel axis b | 40 rpm |
| Rapid traverse rotary axis c | 50 rpm |
| Maximum table load | 441 lb (200 kg) |
| Table measuring system | Direct |
| Table cooling | Drive cooling for B and C axis |
