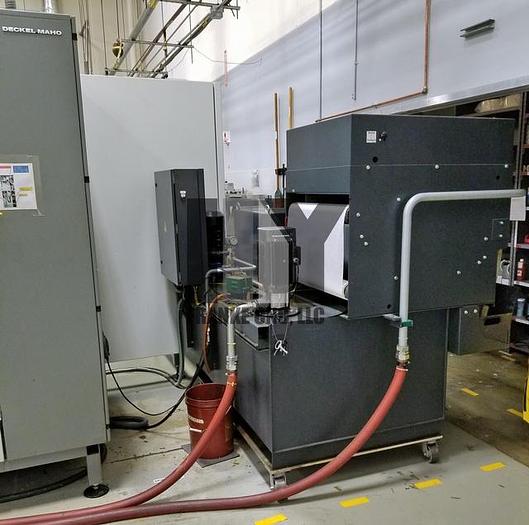

VERTICAL MACHINING CENTERS DECKEL MAHO DMC75V linear SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2008 DECKEL MAHO DMC 75V linear 3Axis High Speed Gantry Style VMC: Machine made in Seebach, Germany,may be inspected in US plant under power! -HIGHLIGHTS- Rigid gantry style construction for optimum precision & surface quality Direct measuring systems (Heidenhain glass scales) all axes High speed 3D control Linear drives on all axes Acceleration values up to 2g and rapid traverse speeds up to 3,500 ipm ! Linear drives position very precisely, and offer a long product life because contact-free power transfer eliminates mechanical wear Temperature compensation in the Z-axis -CONTROL- Heidenhain iTNC 530 3-D Control with 15" TFT screen & electronic handwheel -WORKING RANGE- -FEED DRIVES (DIGITAL)- -MEASURING SYSTEM- Direct, Heidenhain glass scales, input accuracy    3.94" x 10-6 (0.0001 mm) -WORKING SPINDLE- -WORK TABLE- (TABLE MOVES AS X AXIS) T-slots: number x type x distance...   6 x DIN 650-14H12 x 3.94" (100 mm) -60 POSITION PICKUP TOOL CHANGER- -COOLANT UNITS- Pump Capacity/outside Tool Cooling    33.4 PSI (2.3 bar),10.6gal/min(40l/min) Pump Capacity for Bed Flushing    33.4 PSI (2.3 bar), 26.4gal/min (100l/min) Number of nozzles: cooling water/air...............................   6/2 Pump Capacity of COOLANT THRU THE SPINDLE    580 PSI (40 bar), 6.1gal/min Pump Capacity of spray gun    33.4 PSI (2.3 bar), 5.28 gal/min (20 l/min) -EQUIPPED WITH- Production Package I: Coolant Thru the Spindle form A-D 580 PSI/40 Bar, 6.1gal/min(23l/min) 259 Gallon (980 l) High Pressure Coolant Tank Paper Band Filter Rotating Clear View Window Spray-Gun Siemens Linear Drives BLUM laser tool measuring External air blast cooling


ManufacturerDMG MORI
ModelDECKEL MAHO DMC75V linear
Stock Number064262
Number of axis3-Axis
Tool changer60 ATC
ControlHH iTNC 530
Spindle42,000 rpm
Spindle taperHSK-E50
X axis29.5" (750 mm)
Y axis23.6" (600 mm)
Z axis22.0" (560 mm)
X-axis path (longitudinal)29.5" (750 mm)
Y-axis path (transverse)23.6" (600 mm)
Z-axis path (vertical)22.0" (560 mm)
Feed force x,y max2,470 lbs (11,000 N)
Feed force z max2,135 lbs (9,500 N)
Feed range0.04-3,500 IPM (1-90,000 mm/min)
Rapid traverse x, y, z-axis3,500 IPM (90 m/min)
Acceleration maximum50/40/60 ft/sec-2 (15/12/18 m/s-2)
Control resolution0.1 um
Speed range, max20-42,000 rpm
Power rating 40% dc17.3 hp (13 kW)
Power rating 100% dc13.3 hp (10 kW)
Torque 40% dc5.9 Ft/Lbs (8 Nm)
Torque 100% dc4.4 Ft/Lbs (6 Nm)
Tool taperHSK 50
Tool clamping power11,000 N
Clamping area37.4" (950 mm) long x 25.6" (650 mm) wide
Loading height (upper edge of table)35.43" (900 mm)
Maximum height of work piece23.62" (600 mm)
Maximum load on table2,205 lbs (1,000 kg)
Number of pockets60
Maximum tool diameter3.15" (80 mm)
Maximum tool diameter with free neighbouring pockets5.5" (140 mm)
Maximum tool diameter for boring head7.87" (200 mm) diameter
Maximum tool length11.81" (300 mm)
Maximum tool weight13.22 lb (6 kg)
Maximum weight of all tools in magazine331 lb (150 kg)
Tool fittingHSK 50
Chip to chip timeApproximately 6 seconds
