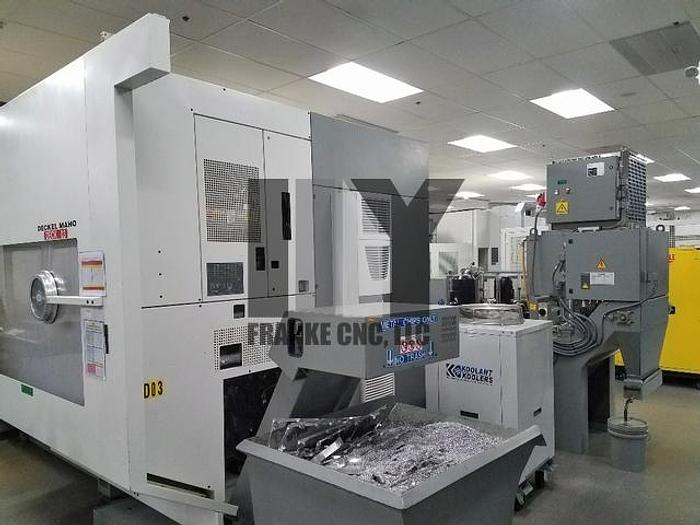

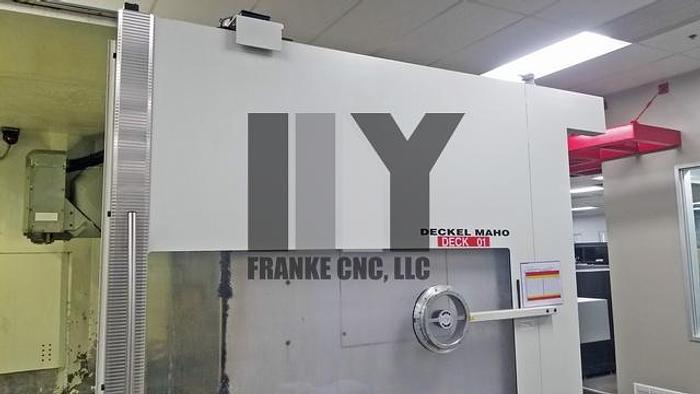

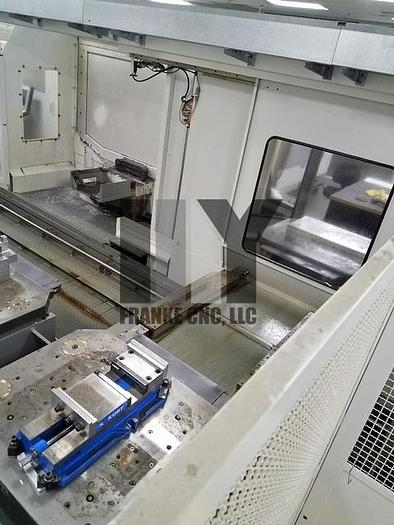

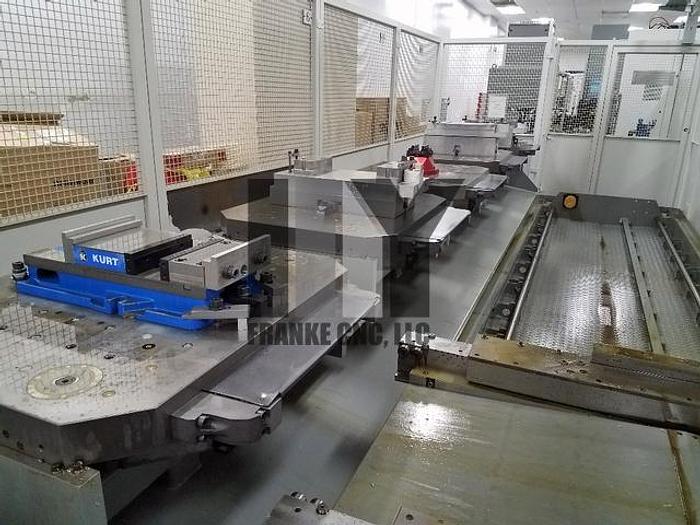

5-AXIS MACHINING CENTERS DECKEL MAHO DMC125U LS5 hi-dyn SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: Used 2002 DECKEL MAHO DMC125U LS5 hi-dyn 5-AXIS UNIVERSAL MACHINING CENTER: >>>>Inspect machine in plant under power by appointment !<<<< >>Price includes professional de-installation and shipping preparation<< >>Price includes loading onto your flatbed open top trucks<< >For extra fee same engineers will re-assemble & re-install on your floor!< Machine was made in Pfronten, Germany This machine is capable of simultaneous 5-axis and 5-sided machining because of the universal swivel head which moves continuously between vertical and horizontal spindle positions. HEIDENHAIN MillPlus iT CNC Control with electronic handwheel -WORKING RANGE- -MAXIMUM WORKPIECE CONTOUR AND HEIGHT FROM TABLE SURFACE- -WORKING TABLE (7 PALLETS) NC ROTARY TABLE- **Has clamping hydraulics for working table** -5TH AXIS MILLING SPINDLE- NC Controlled B axis milling head. 4 seconds swivel time Horiz.-Vertical Head swivels from horizontal to vertical & vertical to horizontal position In addition head has a NC Controlled swivel range from vertical position 0 degrees to the left -7 degrees (in direction of tool magazine) and to the right to horizontal position +180 degrees=3D187 degrees total swivel range -MAIN SPINDLE DRIVE- -FEED DRIVES- -180 POSITION TOOL CHANGER- -COOLANT PUMP- -COOLANT THRU THE SPINDLE; WITH COOLANT TEMPERING- -WEIGHT- Load on machine base including 2 x workpiece weight    35,494 lbs (16,100 kg) -EQUIPPED WITH- Automatic pallet changer with 7 pallets total BLUM Laser tool length measuring and broken tool detection RENISHAW infrared parts measuring probe Clamping hydraulics for working table Coolant tempering(Coolant is chilled & temp controlled for high accuracy) SMOG HOG Oil and Emulsion mist separator Optional high output chiller Spray pistol with pump Available books, manuals, documentation Price quoted is in United States Dollars


ManufacturerDMG MORI
ModelDECKEL MAHO DMC125U LS5 hi-dyn
Stock Number064147
Number of axisFull 5-Axis
Tool changer180 ATC
ControlHH MillPlus iT
Spindle18,000 rpm
Spindle taperHSK-A63
X axis49.2" (1,250 mm)
Y axis34.6" (880 mm)
B axis0-180 degrees simultaneous
Z axis31.5" (800 mm)
C axis360 x 0.001 degrees simultaneous

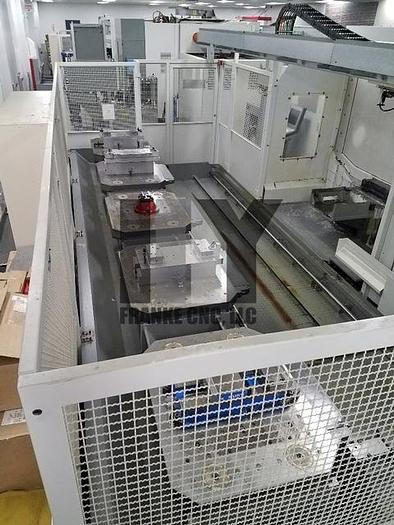

>>>>noteFor extra fee we can RETROFIT this machine from 7 to the standard 2 pallet changer system !<<<<
X axis (longitudinal)49.2" (1,250 mm)
Y axis (transverse)34.6" (880 mm)
Z axis (vertical)31.5" (800 mm)
Maximum diameter49.2" (1,250 mm)
Maximum height48.42" (1,230 mm)
Maximum weight3,307 lbs (1,500 kg)

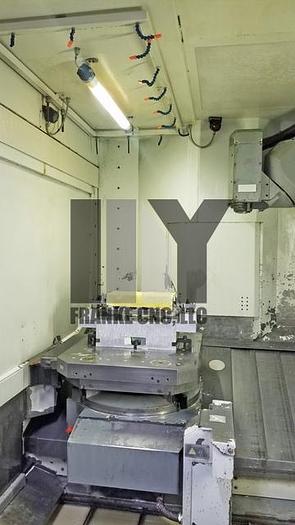

Nc rotary table clamping surface39.4" x 31.5" (1,000 mm x 800 mm)
Nc rotary table maximum load3,307 lbs (1,500 kg)
Rotation range of table360 x 0.001 degrees (full 4th axis)
TypeBrushless AC/Digital
Power 40% duty cycle (s3)37.5 HP (28 kW)
Power 100% duty cycle (s1)25.5 HP (19 kW)
Speed range (spindle)20-18,000 rpm
Acceleration/deceleration time2 seconds
Maximum spindle torque89 lb ft (121 Nm)
Spindle bearing diameter front/rear3.15"/2.16" (80/55 mm)
Clamping power8 kN
Feed rate0.04-590 IPM (1-15,000 mm/min)
Rapid feed (x-y-z)1,574 IPM (40 m/min)
Acceleration (x-y-z)4.5/3.5/6.0 m/s-2
Feed power (x-y-z)10 kN
Ballscrews x/y/z50x20/40x20/40x20 mm
Number of pockets180
Maximum tool weight22 lb (10 kg)
Maximum tool diameter without free pockets3.94" (100 mm)
Maximum tool diameter with free pockets6.3" (160 mm)
Maximum tool length17.72" (450 mm)

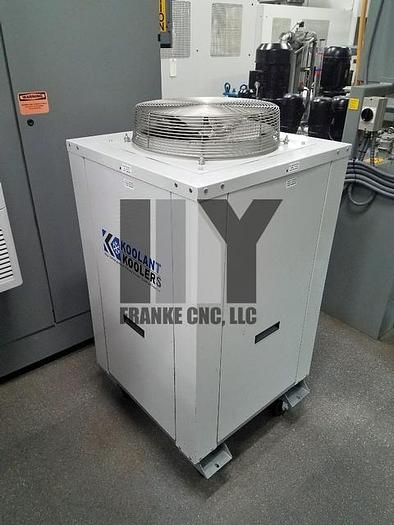

Pump output external jets10.6 gallon/minute (40 liter/minute)
Pump pressure external jets21.76 PSI (1.5 bar)
Pump output chip rinsing47.55 gallon/minute (180 liter/minute)
Tank volume238 gallon (900 liter)

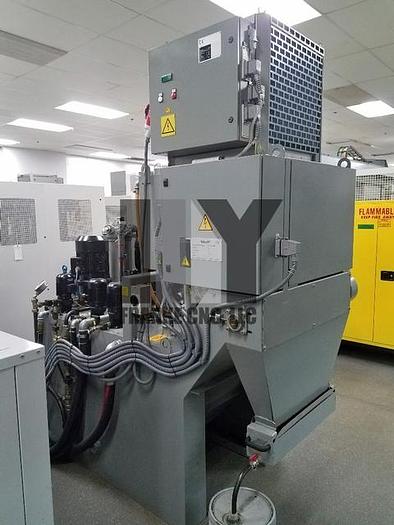

Pressure1,450 PSI (100 bar)
FormCentre of the spindle
Machine weight with table and pallet changer32,187 lbs (14,600 kg)
