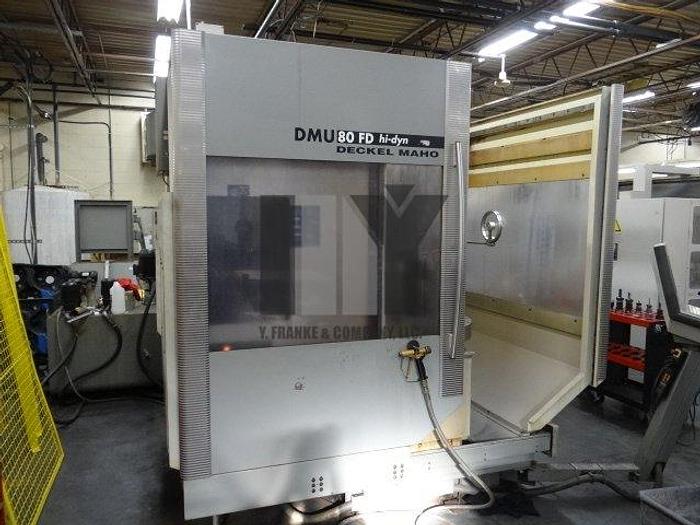

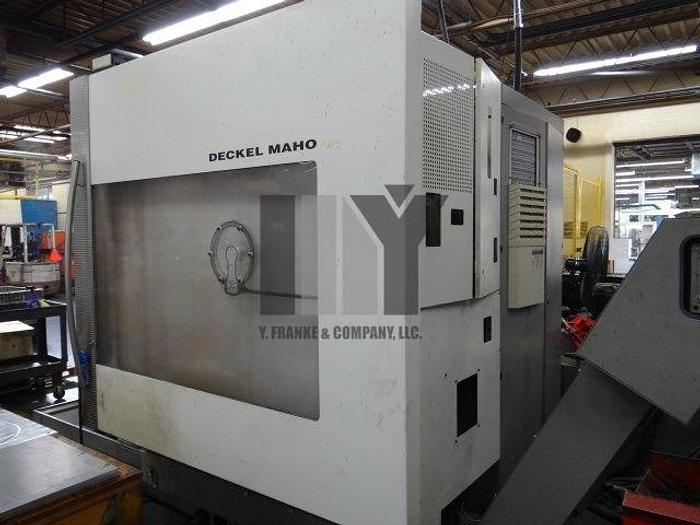

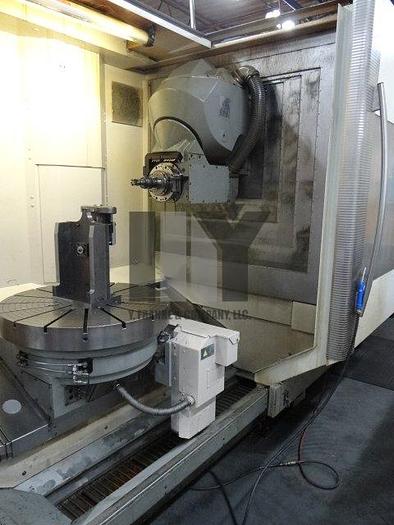

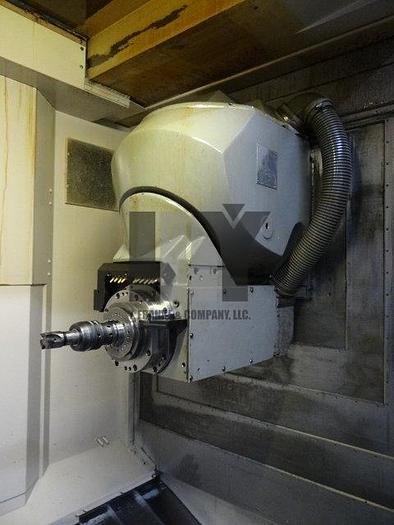

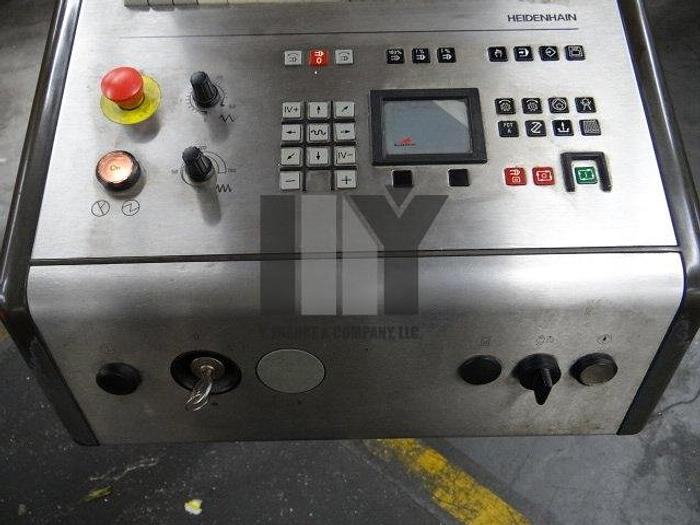

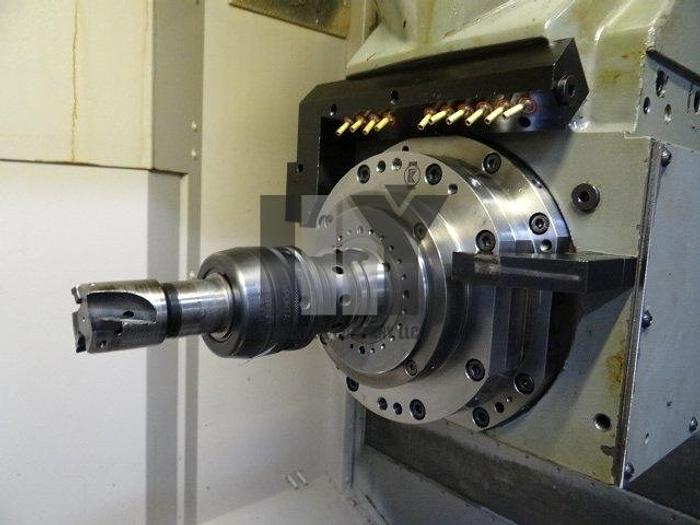

5-AXIS MACHINING CENTERS DMU80FD SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2003 DECKEL MAHO DMU80FD hi-dyn 5-AXIS MILL-TURN CENTRE: Made in Pfronten, Germany This machine is capable of simultaneous 5-axis and 5-sided machining because of the universal swivel head which moves continuously between vertical and horizontal spindle positions. The turning feature of this machine is ideal for large and heavy parts. Spindle Hours    Only 9,898 original spindle on hours before spindle rebuild NOTE SPINDLE WAS REBUILT BY SETCO 12/2013 AT A COST OF $17,000.00 ! Millplus iT CNC Control with electronic handwheel -WORKING RANGE- -MAXIMUM WORKPIECE CONTOUR FOR ROTATION-SYMMETRICAL PARTS- -MILL-TURN TABLE- Table has integrated balancing sensor -5TH AXIS MILLING SPINDLE- NC Controlled B axis milling head. 2 seconds swivel time Hor.-Vert. Head swivels from horizontal to vertical & vertical to horizontal position In addition head has a NC Controlled swivel range from vertical position 0 degrees to the left -7 degrees (in direction of tool magazine) and to the right to horizontal position +180 degrees=3D187 degrees total swivel range. -MAIN SPINDLE DRIVE- -FEED DRIVES- -30 POSITION VERTICAL CHAIN TOOL CHANGER- -COOLANT PUMP- -COOLANT THRU THE SPINDLE- -WEIGHT- Load on machine base including 2 x workpiece weight    21,728 lbs (9.7 tons) -EQUIPPED WITH- Oil & Emulsion mist separator BLUM Laser tool length measuring and broken tool detection RENISHAW infrared parts measuring probe Chip conveyor


ManufacturerDMG MORI
Stock Number063965
Number of axis5-Axis Simultaneous
Tool changer30 ATC

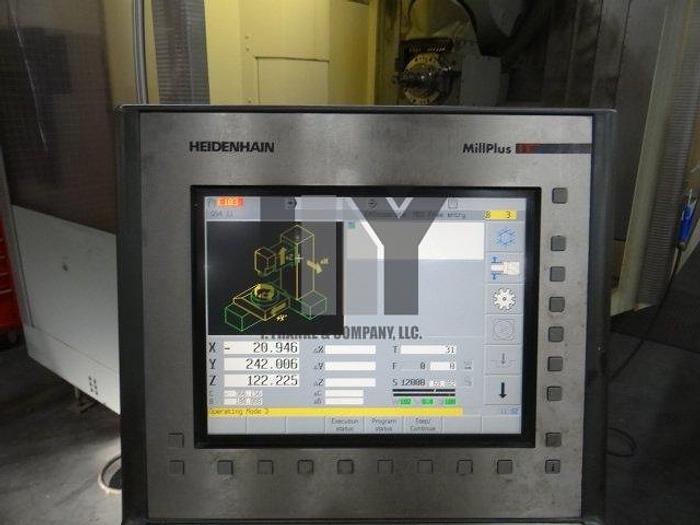

ControlMillplus iT
Spindle12,000 rpm
Spindle taperHSK-A63
X axis31.5" (800 mm)
Y axis27.6" (700 mm)
B axis0-180 degrees
Z axis23.6" (600 mm)
C axis360 x 0.001 degrees

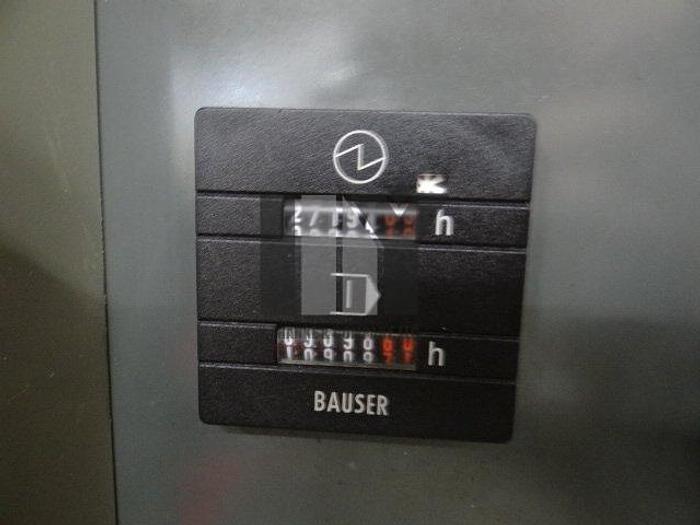

Power on hoursOnly 27,194 total power on hours
Spindle hours since rebuildApproximately 200 hours
X axis (longitudinal)31.5" (800 mm)
Y axis (transverse)27.6" (700 mm)
Z axis (vertical)23.6" (600 mm)
Volume machining area336 dm-3
Maximum diameter36.2" (920 mm)
Maximum weight1,764 lbs (800 kg)
Nc rotary table clamping surface31.5" diameter (800 mm)
Cross slot/t-slots h7/h1214
Nc rotary table maximum load1,764 lbs (800 kg)
Drive power table 40% ed30.8 HP (23 kW)
Maximum table speed turning500 RPM
Maximum torque 100% ed1,180 lb/ft (1,600 Nm)
Maximum holding momentum 100% ed3,688 lb/ft (5,000 Nm)
Rotation range of table360 x 0.001 degrees (full 4th axis)
TypeBrushless AC/Digital
Power 40% duty cycle (s3)38.9 HP (29 kW)
Power 100% duty cycle (s1)25.5 HP (19 kW)
Speed range (spindle)20-12,000 rpm
Maximum spindle torque95.9 lb ft (130 Nm)
Spindle bearing diameter front/rear3.15"/2.16" (80/55 mm)
Clamping power25 kN
Feed rate0.04-590 IPM (1-15,000 mm/min)
Rapid feed (x-y-z)1,574 IPM (40 m/min)
Acceleration (x-y-z)5.0 m/s-2
Feed power (x-y-z)10 kN
Ballscrews x/y/z40x20/40x20/40x20 mm
Number of pockets30
Maximum tool weight22 lb (10 kg)
Maximum tool diameter without free pockets3.94" (100 mm)
Maximum tool diameter with free pockets6.3" (160 mm)
Maximum tool length turning/milling13.8" (350 mm)
Maximum tool length with breakage control12.2" (310 mm)
Pump output external jets10.6 gallon/minute (40 liter/minute)
Pump pressure external jets21.76 PSI (1.5 bar)
Pump output chip rinsing47.55 gallon/minute (180 liter/minute)
Tank volume158 gallon (600 liter)
Capacity6.07 gallon/minute (23 liter/minute)
Pressure580 PSI (40 bar)
FormCentre of the spindle
Machine weight with table19,936 lbs (8.9 tons)
