DECKEL MAHO DMG-DMU80T
DECKEL MAHO DMG-DMU80T
Description

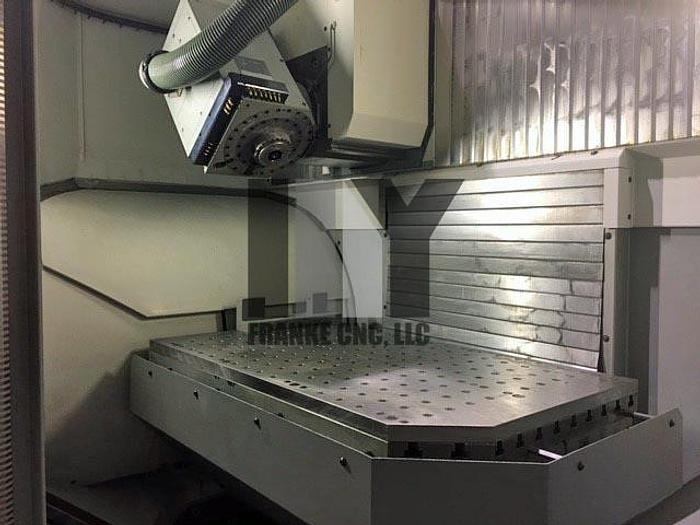

UNIVERSAL MACHINING CENTERS DMG-DMU80T SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2003 DECKEL MAHO DMG-DMU80T 4-AXIS Universal Machining Center: Machine made in Pfronten, Germany HEIDENHAIN Millplus iT control with 15" TFT screen & Electronic Handwheel -WORK AREA- -FEED DRIVES- -TOOL MAGAZINE- -HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM- -HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM- -EQUIPPED WITH- Fully enclosed protection cabin Rigid Table 12,000 RPM Motor Spindle with Active Cooling NC-CONTROLLED B-AXIS SWIVEL MILLING HEAD for 5-Axis simultaneous machining in combination with an optional NC sub-table. If the NC sub-table is mounted vertically it is an A-Axis. If mounted horizontally it is a C-Axis. -FULL contouring programmable B-Axis -With active cooling -Swivel range + (0 is vertical) +12.1 degrees clockwise past vertical -Swivel range - (0 is vertical) -91.1 degrees counter clockwise past horiz BLUM Laser tool measuring tool length, diameter & broken tool detection RENISHAW infrared parts measuring probe Chip auger External flood coolant on outside of spindle 1 bar (14.5 PSI) pressure, 40L/Min (10.6 gallon/min) flow rate 250L (66 gallon) capacity coolant tank Electric oil mist extractor >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> NOTES: AND a Vertical Machining Center because of the automatic universal swivel milling head enabling both vertical & horizontal machining with 1 clamping <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Specifications
| Manufacturer | DMG MORI |
| Model | DMG-DMU80T |
| Year | 2003 |
| Condition | Used |
| Stock Number | 064200 |
| Status | Available |
| Number of axis | Full 4/5-Axis |
| Tool changer | 32 ATC |
| Control | HH Millplus iT |
| Spindle | 12,000 rpm |
| Spindle taper | HSK-63 |
| X axis | 34.6" (880 mm) |
| Y axis | 24.8" (630 mm) |
| B axis | +12.1/-91.1 degrees |
| Z axis | 24.8" (630 mm) |
| Traverse path x (longitudinal) | 34.6" (880 mm) |
| Traverse path y (across) | 24.8" (630 mm) |
| Traverse path z (vertical) | 24.8" (630 mm) |
| Type | Brushless AC/Digital |
| Rapid traverse linear axes x/y/z | 1,181 ipm (30 m/min) |
| Ballscrews x/y/z | 50 x 20 mm/50 x 20 mm/63 x 20 mm |
| Application | Vertical |
| Type of gripper | Pick Up |
| Number of tool stations | 32 |
| Max tool weight | 17.6 lbs (8 kg) |
| Max tool diameter without free side pockets | 3.15" (80 mm) |
| Max tool diameter with free side pockets | 5.12" (130 mm) |
| Max tool length | 12.4" (315 mm) |
| Input resolution | 0.001 mm |
| Rigid table clamping surface | 49.2" x 27.6" (1,250 mm x 700 mm) |
| Rigid table maximum load | 1,543 lbs (700 kg) |
| Type of main drive | AC |
| Drive power 100% dc | 13.4 HP (10 kW) |
| Drive power 40% dc | 20.1 HP (15 kW) |
| Max spindle torque 100% dc | 64.2 Ft/Lb. (87 Nm) |
| Max spindle torque 40% dc | 95.9 Ft/Lb. (130 Nm) |
| Speed range | 20-12,000 RPM |
| Acceleration from 0-12,000 rpm | 2 Seconds |
| Number of gear steps | None |
| Spindle bearing diameter front/rear | 3.15"/2.16" (80/55 mm) |
| This machine is two machines in one | both a Horizontal Machining Center |
