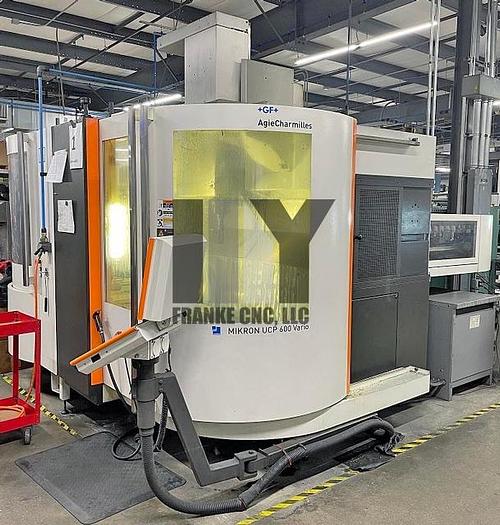

+GF+ MIKRON UCP 600 Vario

+GF+ MIKRON UCP 600 Vario

orCall +1 262-320-3399

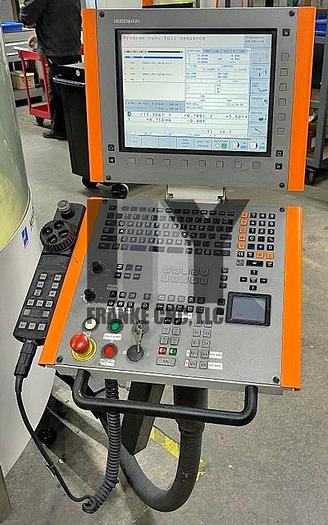

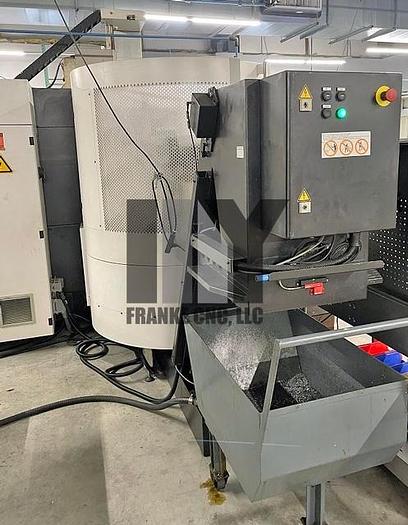

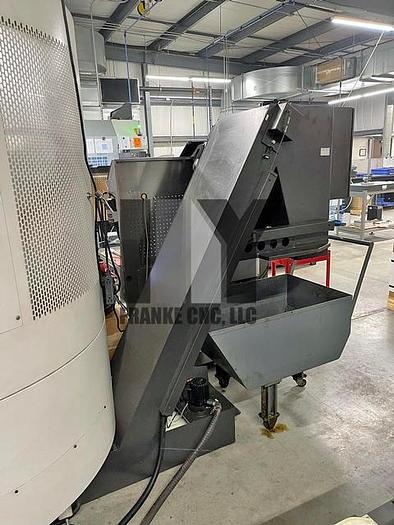

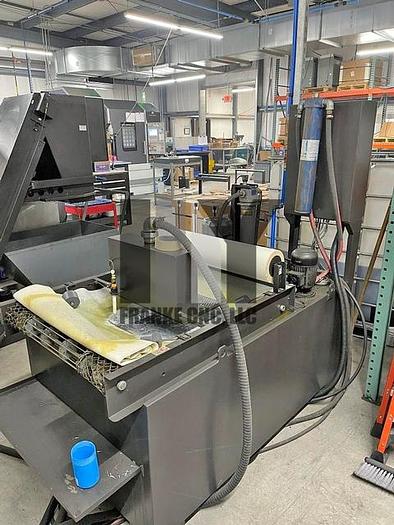

5-AXIS MACHINING CENTERS UCP 600 Vario SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: Used 2011 +GF+ MIKRON UCP600 Vario 5-Axis Machining Center w/7 APC: *May be inspected in plant under power by appointment* Machine was made at +GF+ in Nidau, Switzerland 5/2011 CONTROL Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup WORKING RANGE FEED DRIVE WORKING TABLE Maximum workpiece weight (automatic with pallet changer)    198 lbs (90 kg) Max pallet size possible for this machine    13.8" x 13.8" (350 x 350 mm) All feed motors are liquid-cooled Direct measuring system Heidenhain rotary encoders AUTOMATION WEIGHT STEPTEC SWISS MADE SPINDLE EQUIPPED WITH: Chip conveyor Spray gun Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C Oil & Emulsion mist separator External spindle chiller Coolant tank w/paper filter and 70 bar (1,015 PSI) coolant thru spindle


Manufacturer+GF+ MIKRON
ModelUCP 600 Vario
Stock Number064356
Number of axis5-Axis
Tool changer60 ATC
ControlHH iTNC 530
Spindle20,000 rpm
Spindle taperHSK A63
X axis23.6" (600 mm)
Y axis17.7" (450 mm)
B axis-115/+30 degrees
Z axis17.7" (450 mm)
C axis360 x 0.001 degrees
Longitudinal x-axis23.6" (600 mm)
Cross y-axis17.7" (450 mm)
Vertical z-axis17.7" (450 mm)
B-axis (swivel)-115/+30 degrees
C-axis (rotary)n x 360 degrees
Feed rate x/y/z590 IPM (15 m/min)
Rapid speed x/y/z866 IPM (22 m/min)
Rapid speed b-axis (swivel)25 RPM
Rapid speed c-axis (rotary)33 RPM
Pallets clamping surface11.02" x 11.02" (280 mm x 280 mm)
Maximum workpiece weight (manual loading)441 lbs (200 kg)
Pallet type this machine is equipped forSystem 3R Dynafix
Number of pallet stations this machine is equipped with7
Automatic tool changer60 positions
Blum laser tool measuring systemStandard, included
Infrared parts measuring touch probeM&H, included

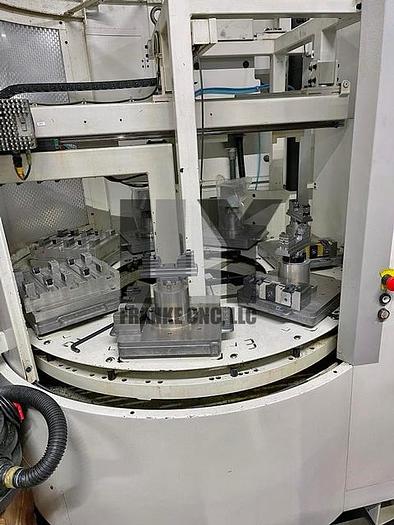

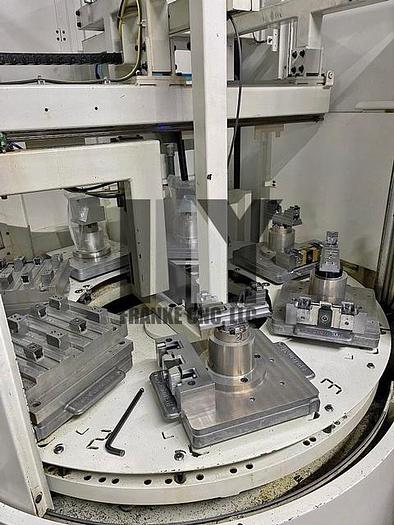

Automatic pallet changer number of pallet stations7
Including pallet changerApproximately 16,976 lbs (7,700 kg)
Machine basePolymer concrete (man made granite)
Spindle rpm20,000 RPM
Spindle power 40% ed40.2 HP (30 kW)
Spindle torque 40% ed67.1 Ft/Lb (91 Nm)
