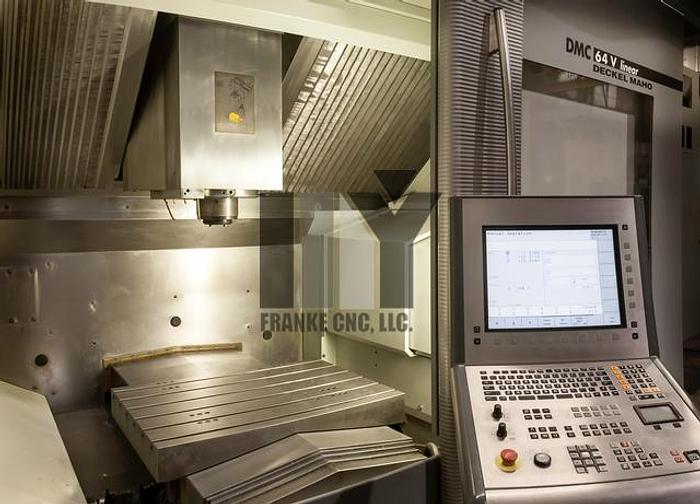

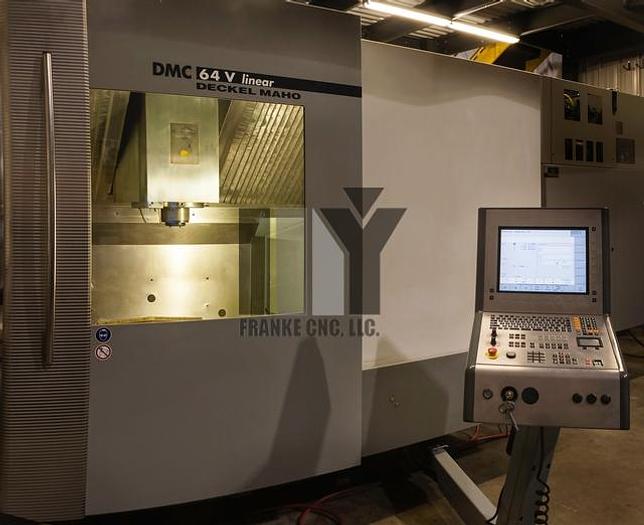

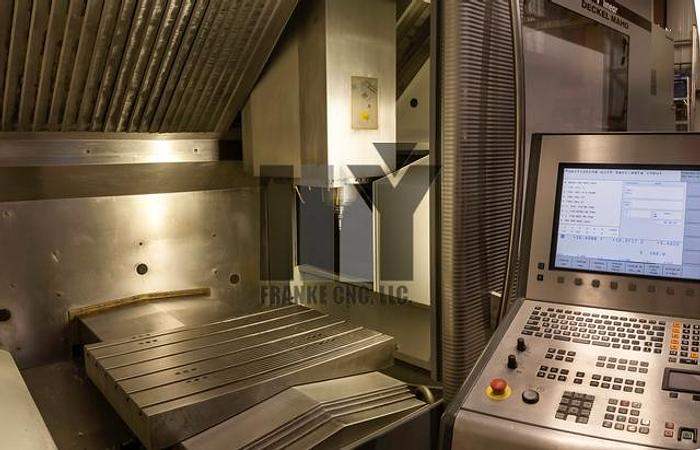

VERTICAL MACHINING CENTERS DMG-DMC64V SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: Used 2005 DECKEL MAHO DMG-DMC64V 3-Axis Vertical Machining Center: Machine made in Geretsried, Germany, inspect under power in Wisconsin! HEIDENHAIN iTNC530 Control with Ethernet & Electronic Handwheel -HIGHLIGHTS- 30 position pick-up tool changer which can be loaded during machining time Tool changer is located behind working area to protect from emulsion &dirt Direct measuring system (Heidenhain glass scales) for maximum accuracy 15" TFT flat screen on HEIDENHAIN iTNC530 Control -WORKING RANGE- -FEED- -ACCELERATION- -POSITIONING ACCURACY (ADMISSIBLE VALUE ACCORDING TO VDI/DGQ 3441) P: Y,Z-axis (direct measuring system) acc. VDI/DGQ 3441    0.0004" (0.010 mm) P: X-axis (direct measuring system) acc. VDI/DGQ 3441    0.0003" (0.008 mm) -HEIDENHAIN GLASS SCALES X/Y/Z PATH MEASURING SYSTEM (RESOLUTION)- -MAIN SPINDLE- -PICK-UP TOOL MAGAZINE/CHANGER- -TABLE DESIGN- Clamping area with T-slots DIN 650-14..   33.5" x 23.6" (850 mm x 600 mm) -EQUIPPED WITH- HEIDENHAIN iTNC530 CNC Control with 15" TFT flat screen monitor Spray gun Fully enclosed work cabin Machine will come with a miscellaneous assortment of CAT 40 tool holders Price quoted in US Dollars APPROXIMATE WEIGHT 17637#


ManufacturerDMG MORI
Stock Number064169
Number of axis3-Axis
Tool changer30 ATC
ControlHH TNC 530
Spindle12,000 rpm
Spindle taperCAT 40
X axis25.2" (640 mm)
Y axis23.6" (600 mm)
Z axis19.7" (500 mm)
Feed force x/y/z7,000 N
Feed rate0.04-1,575 ipm (1-40,000 mm/min)
Rapid traverse x/y,z2,755 ipm (70 m/min) No ballscrew in X-Axis
Rapid traverse y-axis1,575 ipm (40 m/min)
Rapid traverse z-axis1,575 ipm (40 m/min)
Ball screw diameter/pitch (y/z)1.57/0.6" (40/15 mm)
X-axis5 m/s-2
Y-axis4 m/s-2
Z-axis5 m/s-2
Direct0.001 mm
Speed range1-12,000 rpm
Drive power 40% dc/continous duty25.5/17.4 hp (19/13 kW)
Torque 40% dc/continous duty73/51.1 ft/lbs (100/70 Nm)
Tool mounting din 69 871-aCAT 40
Tool clamping force8,000 N
Tool releasing force13,000 N
Acceleration 0-12,000 rpm2.3 seconds
Deceleration 12,000 rpm-01.4 seconds
Number of tools30
Maximum tool diameter3.9" (100 mm)
Maximum tool diameter, vacant adjacent places5.5" (140 mm)
Maximum tool length11.8" (300 mm)
Maximum tool weight15.4 lbs (7 kg)
Maximum loading weight of tool magazine198 lbs (90 kg)
Chip to chip timeApproximately 7 seconds
Loading height (upper edge of table)33.5" (850 mm)
Maximum work load capacity1,320 lbs (600 kg)
