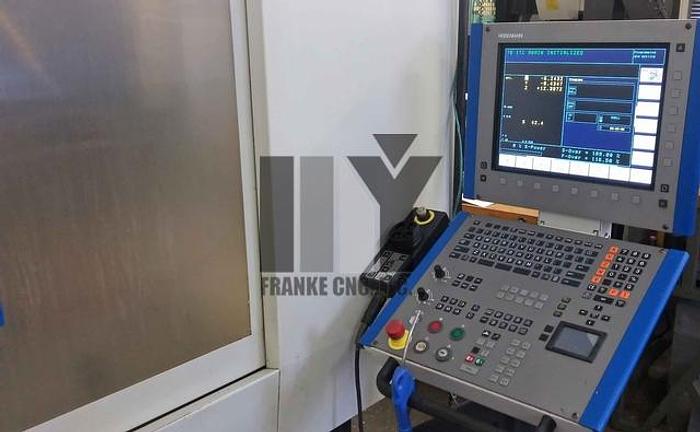

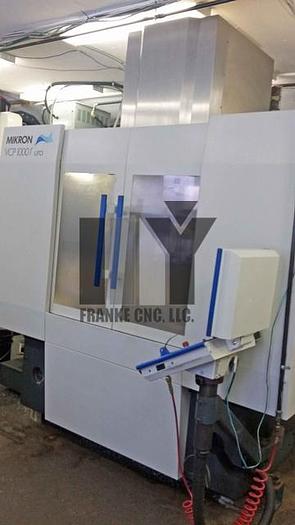

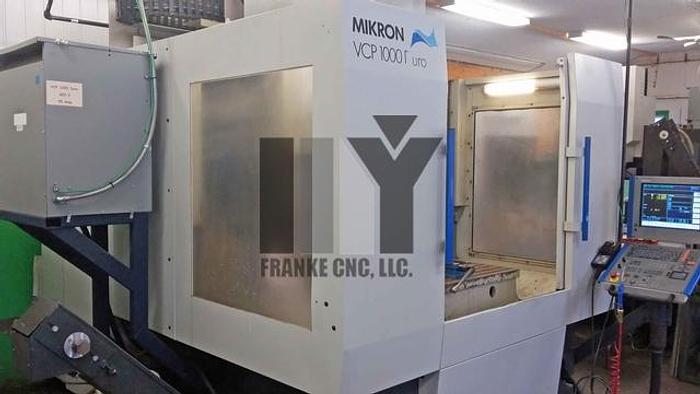

VERTICAL MACHINING CENTERS MIKRON VCP 1000 Duro SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2003 MIKRON GFMS-VCP 1000 Duro 3-Axis Vertical Machining Center: Machine made in Nidau, Switzerland HEIDENHAIN iTNC530 Control with electronic handwheel & Ethernet interface The VCP range was specifically designed to meet the highly demanding requirements of the mould and die industry as well as the production of parts requiring high accuracy. The following features are designed specifically for the high accuracy requirements of mould making: -MASSIVE 21,716 lbs polymer concrete (man made granite) base. This composite offers excellent vibration dampening characteristics: approximately 10 times greater than cast iron and significantly better than welded construction. A high degree of dampening is essential when working with high feed rates, high acceleration, and is required for superior surface finishes. The structure of the VCP 1000 Duro makes it ideal for difficult applications, such as hard metal machining, where any transmitted vibration leads to increased wear or fracturing of the cutter. -SWISS made Step-Tec motor spindle with active external spindle chiller -Direct measurement all axes via HEIDENHAIN linear glass scales -High precision, widely spaced linear guides in all three axes, 6 roller bearing skates each in X and Y-axes, as well as 4 in the Z-axis give the best rigidity and robustness -Large diameter high precision recirculating ballscrews are used to transmit the drive forces to the axes -HSK 63 spindle taper for maximum rigidity, tool life, and best surface quality finish -WORK AREA- -HIGH PERFORMANCE MOTOR SPINDLE- -FEED DRIVES- -TOOL CHANGER- -SAFETY EQUIPMENT- -WORK TABLE- -EQUIPPED WITH- BLUM Laser Tool Measuring of tool length & diameter, also with broken tool detection RENISHAW MP12 infrared parts measuring probe Completely enclosed work cabin Chip conveyor Side window for loading in extra large parts Ethernet interface on control Active external spindle chiller PRICE QUOTED IN UNITED STATES DOLLARS


Manufacturer+GF+ MIKRON
ModelMIKRON VCP 1000 Duro
Stock Number064196
Number of axis3-Axis
Tool changer30 ATC
ControlTNC 530
Spindle20,000 rpm
Spindle taperHSK 63
X axis39.4" (1,000 mm)
Y axis25.6" (650 mm)
Z axis19.7" (500 mm)
Traverse path x (longitudinal)39.4" (1,000 mm)
Traverse path y (lateral)25.6" (650 mm)
Traverse path z (vertical)19.7" (500 mm)
Ac-motor spindle drive power 40% dc21.4 HP (15/16 kW)
Spindle speed12-20,000 rpm
Rapid traverse linear axes x/y/z1,181 ipm (30 m/min)
Feed force x and y/z7,000/9,000 N
Storage pockets30 positions
Maximum tool diameter3.5" (90 mm)
Maximum tool length11.8" (300 mm)
Maximum tool weight17.6 lbs (8 kg)
Tool change timeApproximately 9 seconds
Chip to chip timesApproximately 12 seconds
Door opening to the front40.9" (1,040 mm)
Window opening to the side33.3" x 38.5" (845 mm x 977 mm)
Table surfaces area51.2" x 23.6" (1,300 mm x 600 mm)
Maximum table load3,527 lbs. (1,600 kg)
Clamping slots14-H12 (H7)
Distance slot to slot2.6" (65 mm)
