+GF+ MIKRON MIKRON UCP 600 Vario

+GF+ MIKRON MIKRON UCP 600 Vario

or
Call 262-432-7474

Description

5-AXIS MACHINING CENTERS MIKRON UCP 600 Vario SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2008 MIKRON UCP 600 Vario 5-Axis Simultaneous Machining Center: Machine made in Nidau, Switzerland CONTROL Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup WORKING RANGE FEED DRIVE WORKING TABLE All feed motors are liquid-cooled Direct measuring system Heidenhain rotary encoders TOOL CHANGER WEIGHT Approximately 16,976 lbs (7,700 kg) STEPTEC SWISS MADE SPINDLE EQUIPPED WITH: Flood coolant Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C Electric oil mist extractor
Show All

Specifications

Manufacturer+GF+ MIKRON
ModelMIKRON UCP 600 Vario
Year2008
ConditionUsed
Stock Number064190
StatusAvailable
Number of axis5-Axis Simultaneous
Tool changer30 ATC

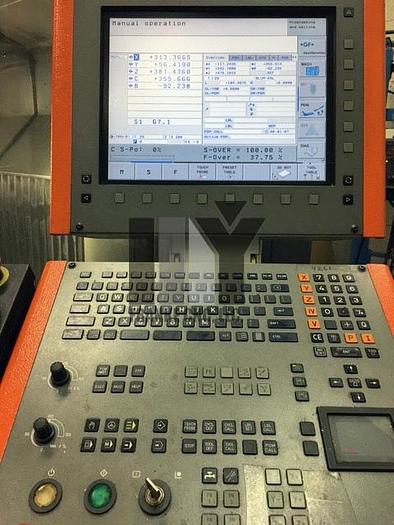

ControlHH iTNC 530
Spindle20,000 rpm
Spindle taperHSK-A63
X axis23.6" (600 mm)
Y axis17.7" (450 mm)
Z axis17.7" (450 mm)
Longitudinal x-axis23.6" (600 mm)
Cross y-axis17.7" (450 mm)
Vertical z-axis17.7" (450 mm)
B-axis (swivel)-115/+30 degrees
C-axis (rotary)n x 360 degrees
Feed rate x/y/z590 IPM (15 m/min)
Rapid speed x/y/z866 IPM (22 m/min)
Rapid speed b-axis (swivel)25 RPM
Rapid speed c-axis (rotary)33 RPM
Clamping surface17.7" (450 mm) Diameter
Maximum workpiece weight441 lbs (200 kg)
Automatic tool changer30 positions
Machine basePolymer concrete (man made granite)
Spindle rpm20,000 RPM
Spindle power 40% ed40.2 HP (30 kW)
Spindle torque 40% ed67.1 Ft/Lb (91 Nm)
