Description
5-AXIS MACHINING CENTERS
MIKRON HPM 450U
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

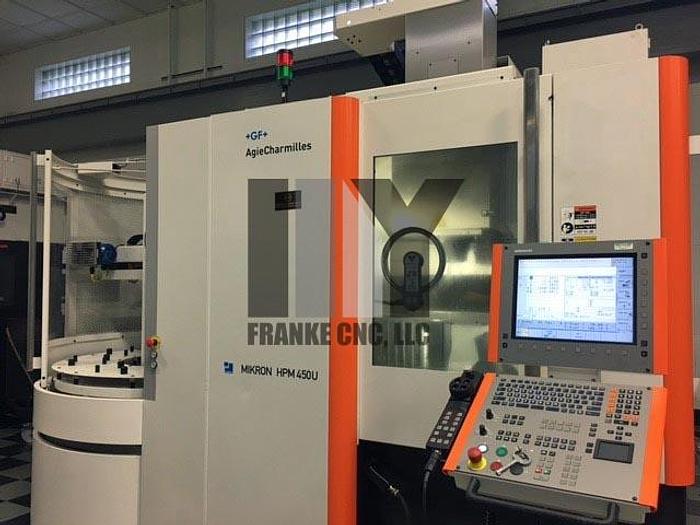

ONE USED 2013 MIKRON GFMS-HPM 450U 5-AXIS AUTOMATED MACHINING CENTER:
Machine made in Nidau, Switzerland, inspect under power on our floor in WI
-CONTROL-

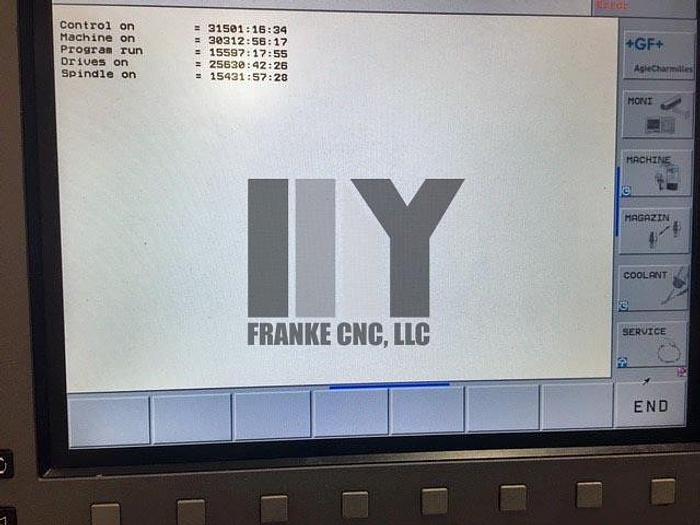

Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup
-WORKING RANGE-

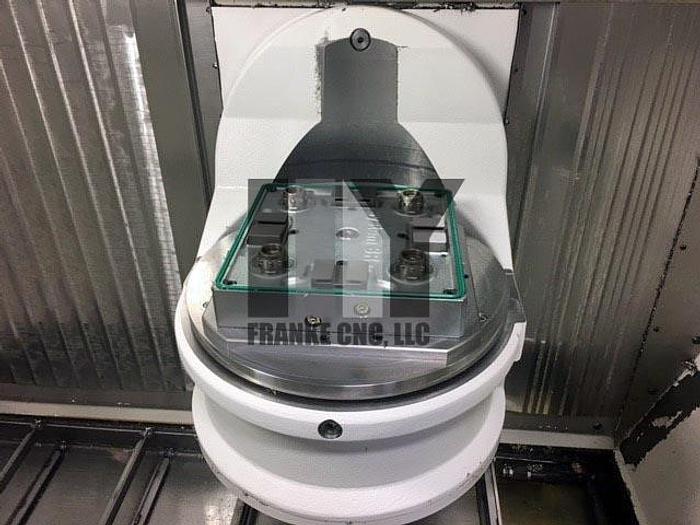

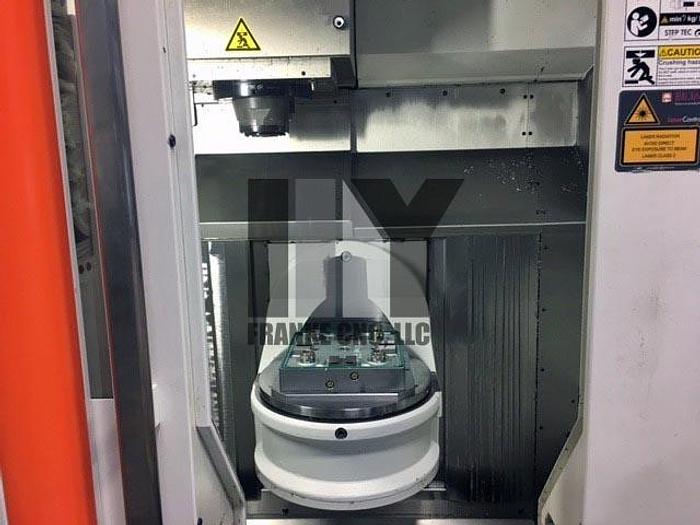

-ROTARY TILTING TORQUE MOTOR TABLE-
Pallet Version System 3R Dynafix 280 mm x 280 mm (11.02" x 11.02") Pallets
Maximum Weight On Table 150 kg (331 lbs) manual; 90 kg (198 lbs) automatic

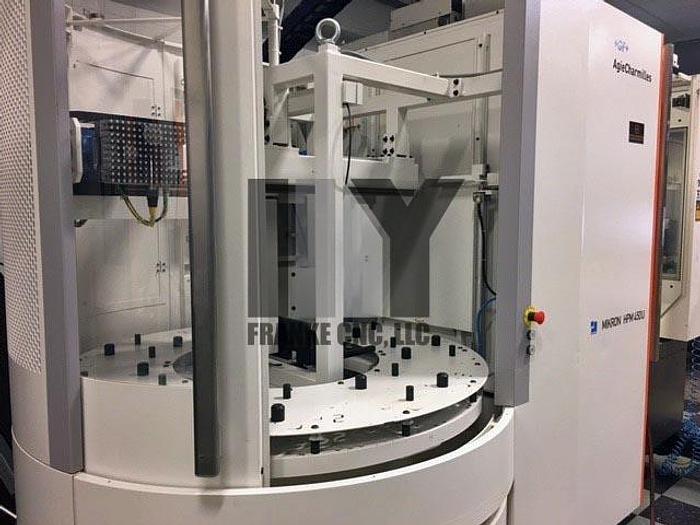

Automatic Pallet Changer 7 Pallets capacity(No pallets come with machine)
Max pallet size possible for this machine 350 mm x 350 mm (13.8" x 13.8")
-FEED DRIVES-
-STEPTEC SWISS MADE SPINDLE-
-60 POSITION TOOL CHANGER-
-EQUIPPED WITH-

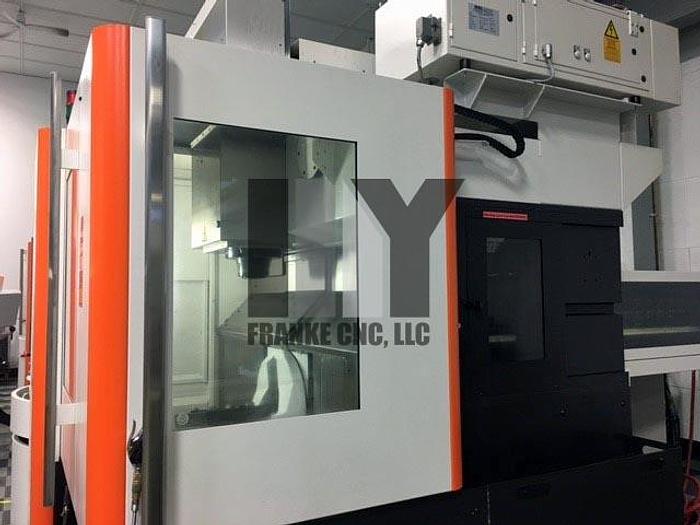

Complete machine enclosure
Pallet changer Dynafix 280x280
Spindle chiller
Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C
60 position tool changer
18-70 bar (261 PSI-1,015 PSI) Coolant Thru The Spindle

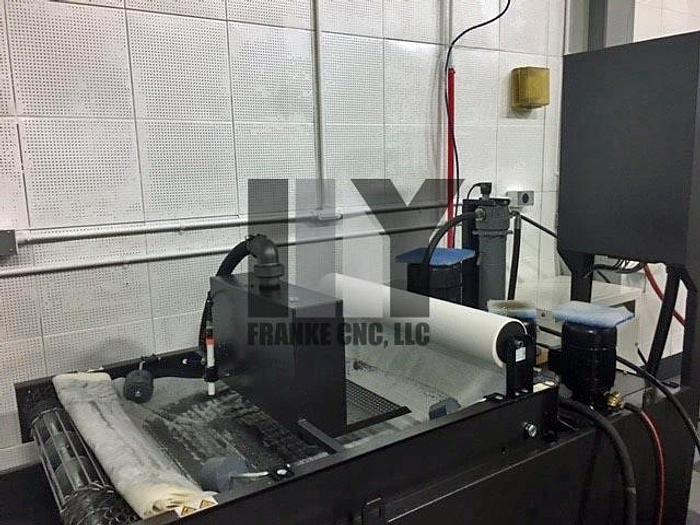

Paper band micro filter system 650 liter (172 gallon) capacity tank
BLUM laser tool measuring of tool length and diameter
M&H Infrared Parts Measuring Touch Probe
Lift-up Chip Conveyor
Spray Gun
Beacon
Blow-off unit for laser measuring system
All feed motors are liquid-cooled
Electric oil mist extractor
Specifications
Manufacturer | +GF+ MIKRON |
Model | MIKRON HPM 450U |
Year | 2013 |
Condition | Used |
Stock Number | 064202 |
Status | Available |
Number of axis | Full 5-Axis |
Tool changer | 60 ATC |
Control | HH iTNC 530 |
Spindle | 20,000 rpm |

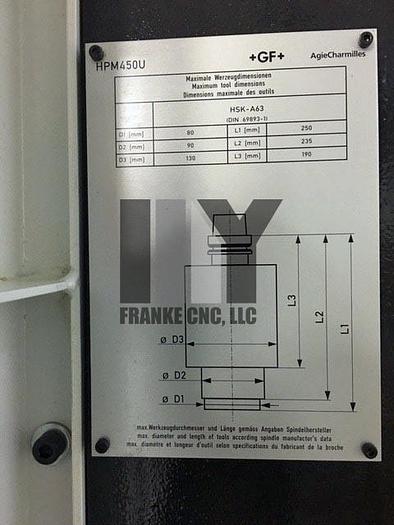

Spindle taper | HSK-A63 |
X axis | 23.62" (600 mm) |
Y axis | 17.72" (450 mm) |
B axis | -120/+45 degrees |
Z axis | 17.72" (450 mm) |
C axis | 360 x 0.001 degrees |
Longitudinal x-axis | 23.62" (600 mm) |
Transverse y-axis | 17.72" (450 mm) |
Vertical z-axis | 17.72" (450 mm) |
Tilt, b-axis | -120/+45 degrees |
Rotary, c-axis | n x 360 degrees |
Feed/rapid speed b-axis | 50 rpm |
Feed/rapid speed c-axis | 140 rpm |
Feed rate x/y/z | 590 IPM (15 m/min) |
Rapid speed x/y/z | 866 IPM (22 m/min) |
Spindle rpm | 20,000 RPM |
Spindle power | 40.2 HP (30 kW) |
Spindle torque | 67.1 Ft/Lb (91 Nm) |
Automatic tool changer | 60 position |
