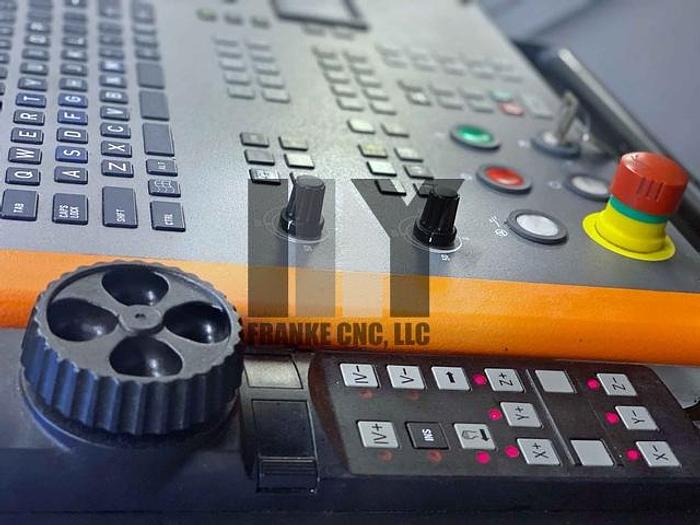

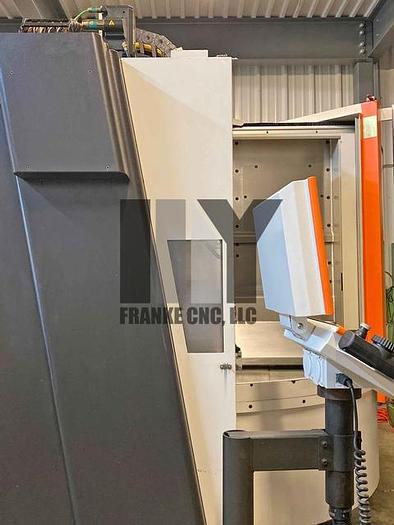

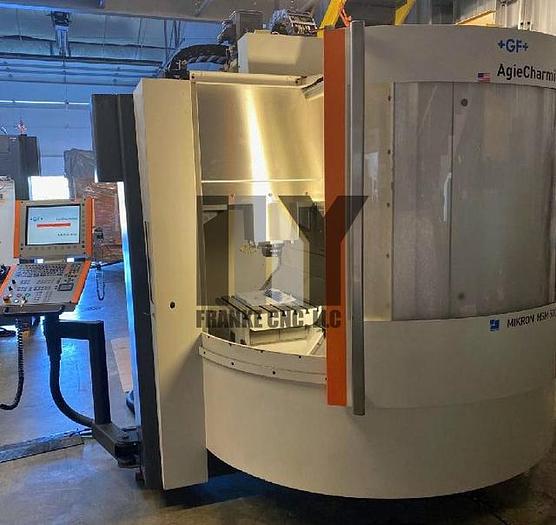

VERTICAL MACHINING CENTERS HSM 500 SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2007/8 +GF+ MIKRON HSM 500 3-Axis High Speed Machining Center: Built at +GF+ in Nidau, Switzerland 11/2007, first installed new 4/2008 -WORK AREA- -STEP TEC Swiss made SPINDLE- -FEED RATE- -DYNAMIC- 1.7 G -WORK TABLE- -OPTIONAL EXTENDED TOOL CHANGER- -CONTROL- HEIDENHAIN iTNC 530 with electronic movable handwheel -DIMENSIONS AND WEIGHT- Machine dimensions (W x D x H)    1750 x 2250 x 2100 mm (69" x 89" x 83") -STANDARD EQUIPMENT- Interface Ethernet 25 GB Harddisk capacity Machine enclosure with polycarbon Work area light Safety switches Vector drive spindle (high torque) Rigid tapping HEIDENHAIN optical linear scales with compressed air protection Liquid cooled spindle, drives, electrical cabinet 3 user-definable M codes ITC (Intelligent Thermal Control) APS (Advanced Process System) Air gun -OPTIONS THIS MACHINE HAS- Laser tool measuring M&H measuring touch probe Chip sump with coolant tank and chip flushing pistol Tool blow-off unit Oil mist minimum lubrication spray unit To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase. PURCHASE POINT is Hartland, WI


Manufacturer+GF+ MIKRON
ModelHSM 500
Stock Number064418
Number of axis3-Axis
Tool changer36 ATC

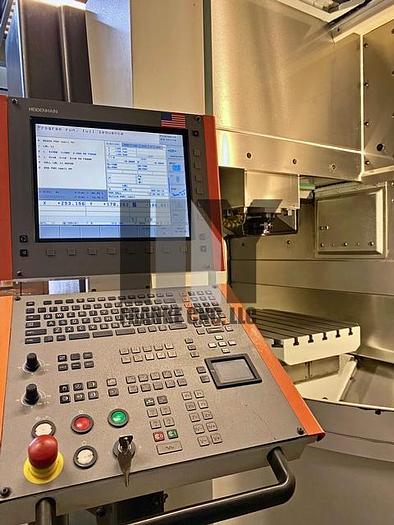

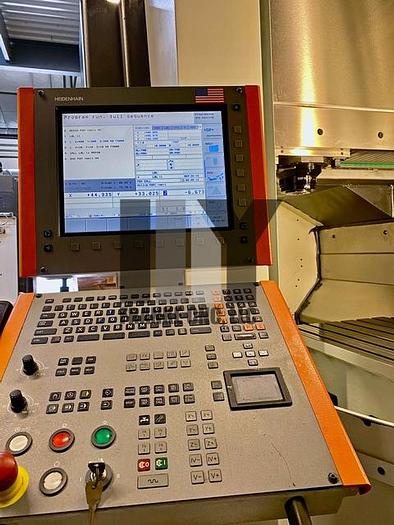

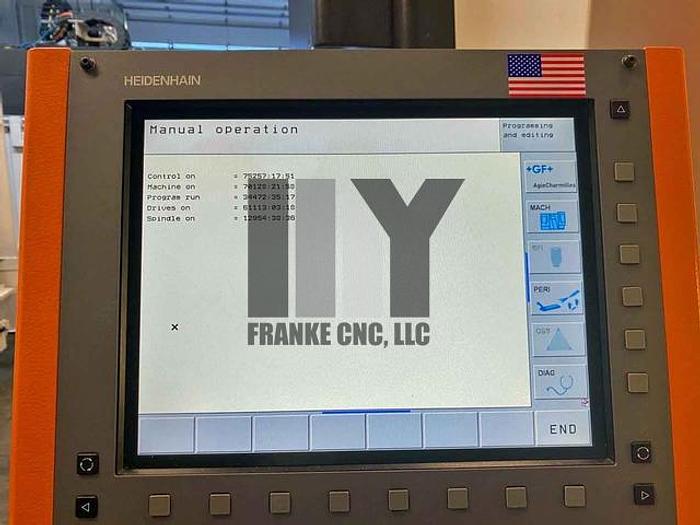

ControlHH iTNC 530
Spindle42,000 rpm
Spindle taperHSK-E40
X axis19.7" (500 mm)
Y axis17.7" (450 mm)
Z axis13.8" (350 mm)
Longitudinal, x500 mm (19.7")
Lateral, y450 mm (17.7")
Vertical, z350 mm (13.8")
100-42,000 rpm, hsk-e40 taper11 kW/4.2 Nm (14.75 hp/3 lb/ft)
Feed rate/rapid traverse (x,y)20/40 m/min (787/1,575 IPM)
Feed rate/rapid traverse (z)40/40 m/min (1,575 IPM)

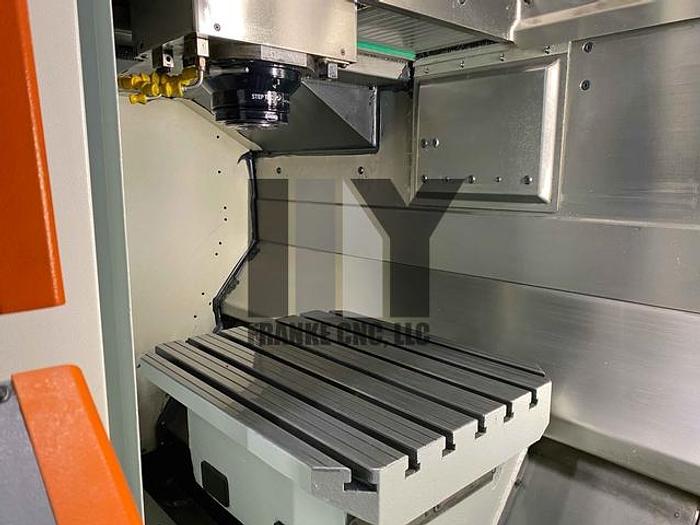

Clamping surface550 mm x 450 mm (21.7" x 17.7")
Max table load200 kg (441 lbs)
Height of table top front floor980 mm (38.6")

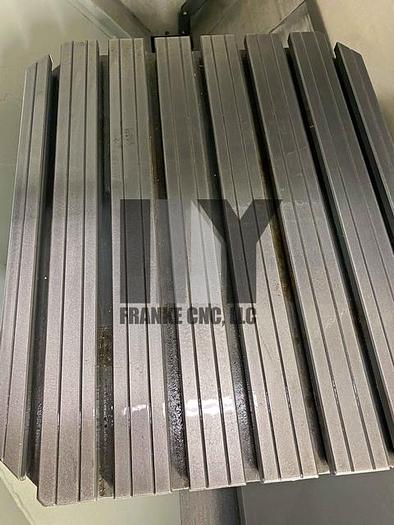

T-slot on table (nominal size x pitch x quantity)14 x 63 x 7 mm
Positions36 (Standard on this machine is 18 stations)
Machine weight5500 kg (12,125 lb)

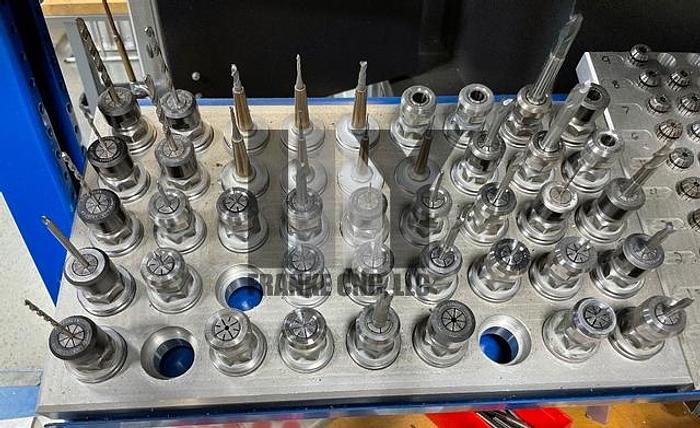

Miscellaneous hsk-e40 tool holderscollet and shrink fit (photo 064418-11)
