+GF+ MIKRON HSM 300 MoldMaster

+GF+ MIKRON HSM 300 MoldMaster

orCall +1 262-320-3399

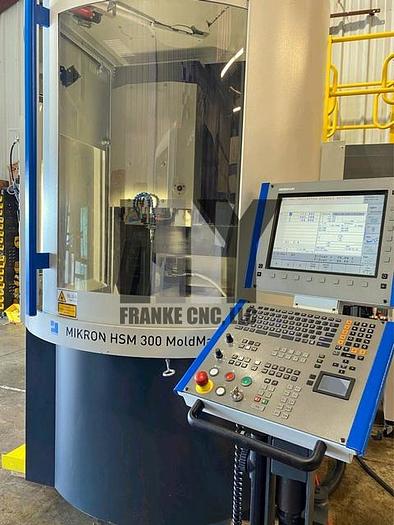

VERTICAL MACHINING CENTERS HSM 300 MoldMaster SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: One used 2008/2009 +GF+ MIKRON HSM 300 MoldMaster 54k RPM VMC: -HISTORY- Machine was built at +GF+ in Nidau, Switzerland 12/2008,Install US 1/2009 -WORKING RANGE- -FEED DRIVE- -STEP TEC SWISS MADE SPINDLE- -WORK TABLE- -35 STATION TOOL CHANGER- -CONTROL- HEIDENHAIN iTNC 530 with mobile electronic handwheel & APS, ITC SW options -WEIGHT- -EQUIPPED WITH- Completely enclosed machine enclosure BLUM laser measuring system for tool measurement, wear & breakage control RENISHAW touchprobe for setup on machine & to check the work results Preparation for robot automation with automatic sliding side door Preparation for dust extraction unit Massive polymer concrete (man made granite) base for the best damping properties and exceptional thermal stability Preloaded ballscrews with fine pitch for highest precision Direct measuring systems (HEIDENHAIN glass scales) with high resolution Watercooled high frequency spindle with HSK-E32 interface Minimum lubrication quantity unit for hard milling Ethernet interface for control 15" TFT color display on control Overpressure protection on linear scales and spindle Digital drives technology User friendly command interface Price quoted is in US Dollars Purchase Point is Jackson, WI Technical specifications are subject to verification by buyer


Manufacturer+GF+ MIKRON
ModelHSM 300 MoldMaster
Stock Number064372
Number of axis3-Axis
Tool changer35 ATC
ControlHH iTNC 530
Spindle54,000 rpm
Spindle taperHSK-E32
X axis14.96" (380 mm)
Y axis15.35" (390 mm)
Z axis10.04" (255 mm)
X longitudinal380 mm (14.96")
Y lateral390 mm (15.35")
Z vertical255 mm (10.04")
Feed rate x/y/z-axis10/10/10 m/min (394 IPM)
Maximal rapid feed rate x/y/z-axis15/15/15 m/min (590 IPM)
Maximum acceleration x/y/z10/10/10 m/s-2
Spindle speed rate54,000 rpm
Spindle power6.5 kW (8.72 HP)
Spindle torque3.4 Nm (2.51 lb-ft)
Maximum tool diameter8 mm (0.32")
Maximum tool length80 mm (3.15")
Dimensions410 x 325 mm (16.1" x 12.8")
Maximum table load68 kg (150 lbs)
Tool magazine taperHSK-E32
Tool magazine places35
Machine2,900 kg (6,393 lbs)
